ABS W/Traction Control (TRAC)

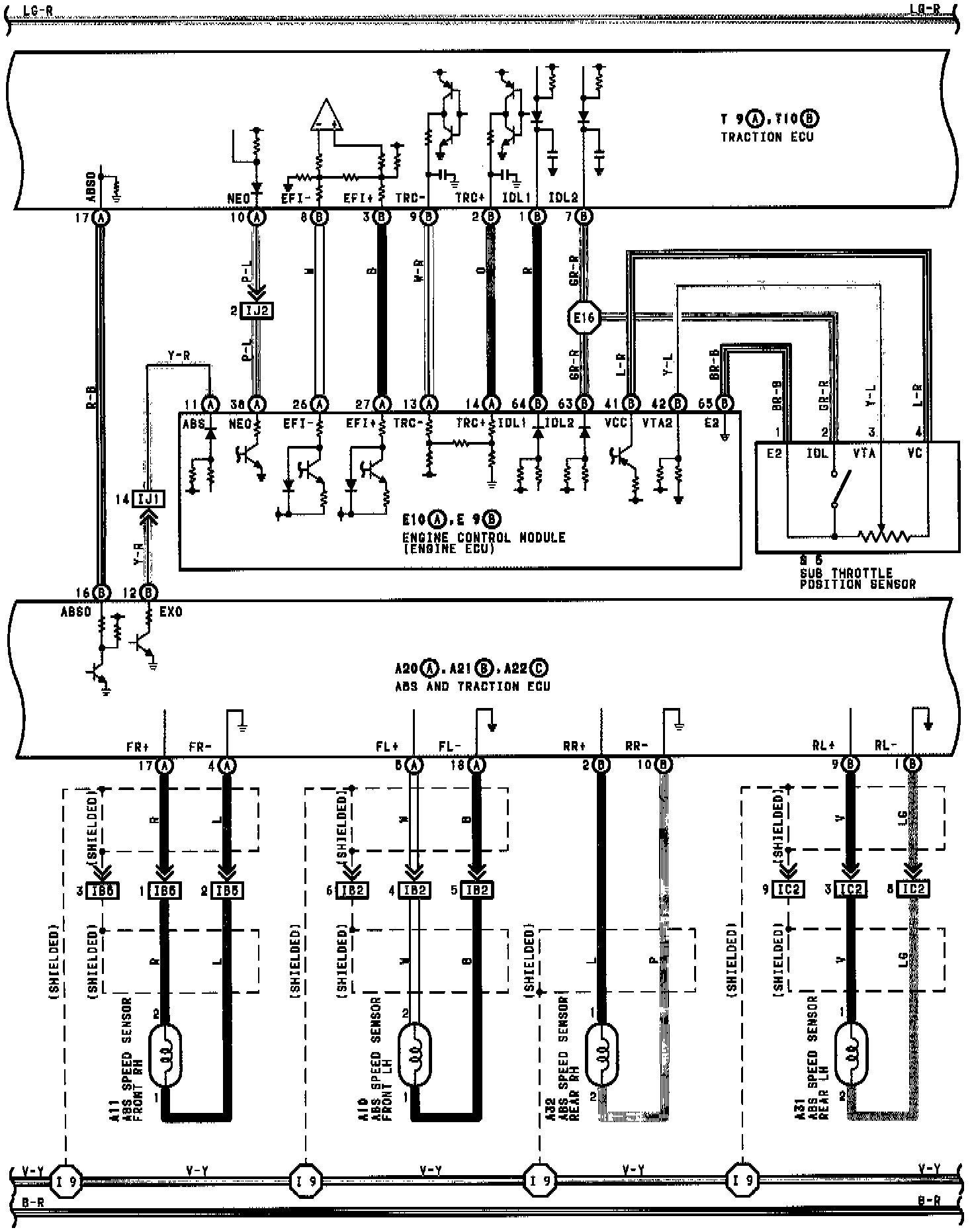

ABS And Traction Control Wiring Diagram:

Part 1 of 6

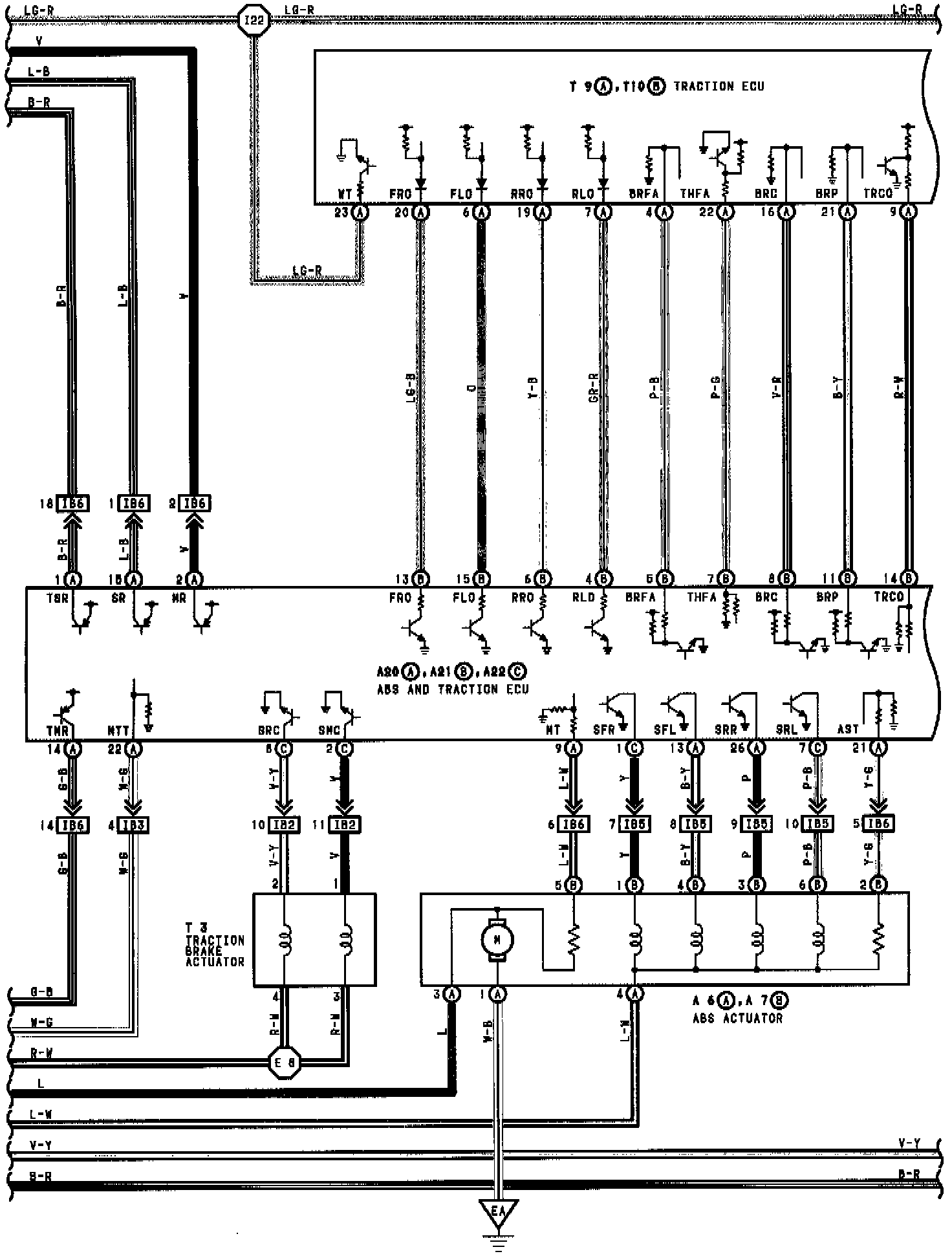

ABS And Traction Control Wiring Diagram:

Part 2 of 6

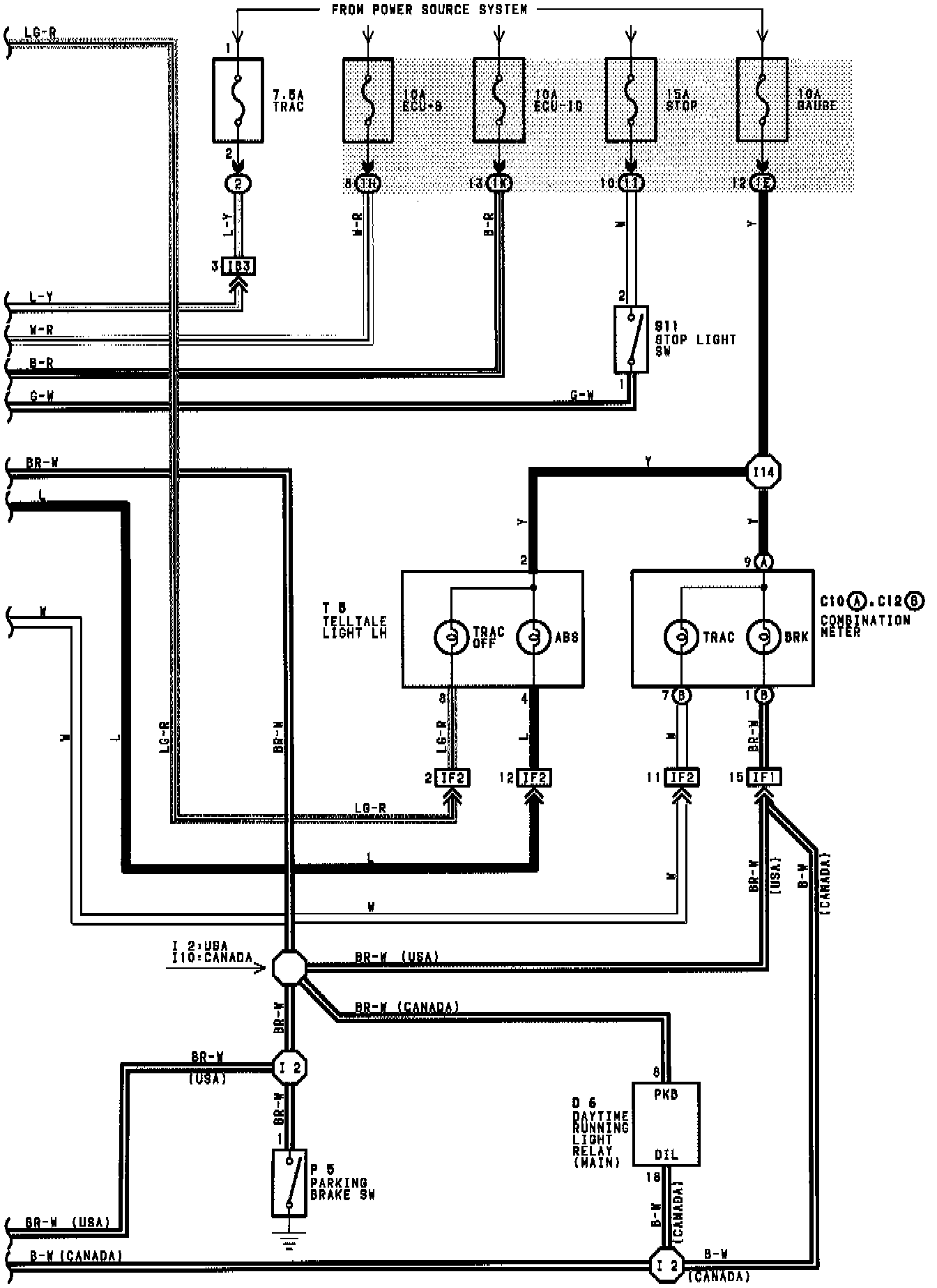

ABS And Traction Control Wiring Diagram:

Part 3 of 6

ABS And Traction Control Wiring Diagram:

Part 4 of 6

ABS And Traction Control Wiring Diagram:

Part 5 of 6

ABS And Traction Control Wiring Diagram:

Part 6 of 6
