Supra L6-183 2997cc 3.0L DOHC Turbo (2JZ-GTE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
>>
With Amplifier
With Amplifier

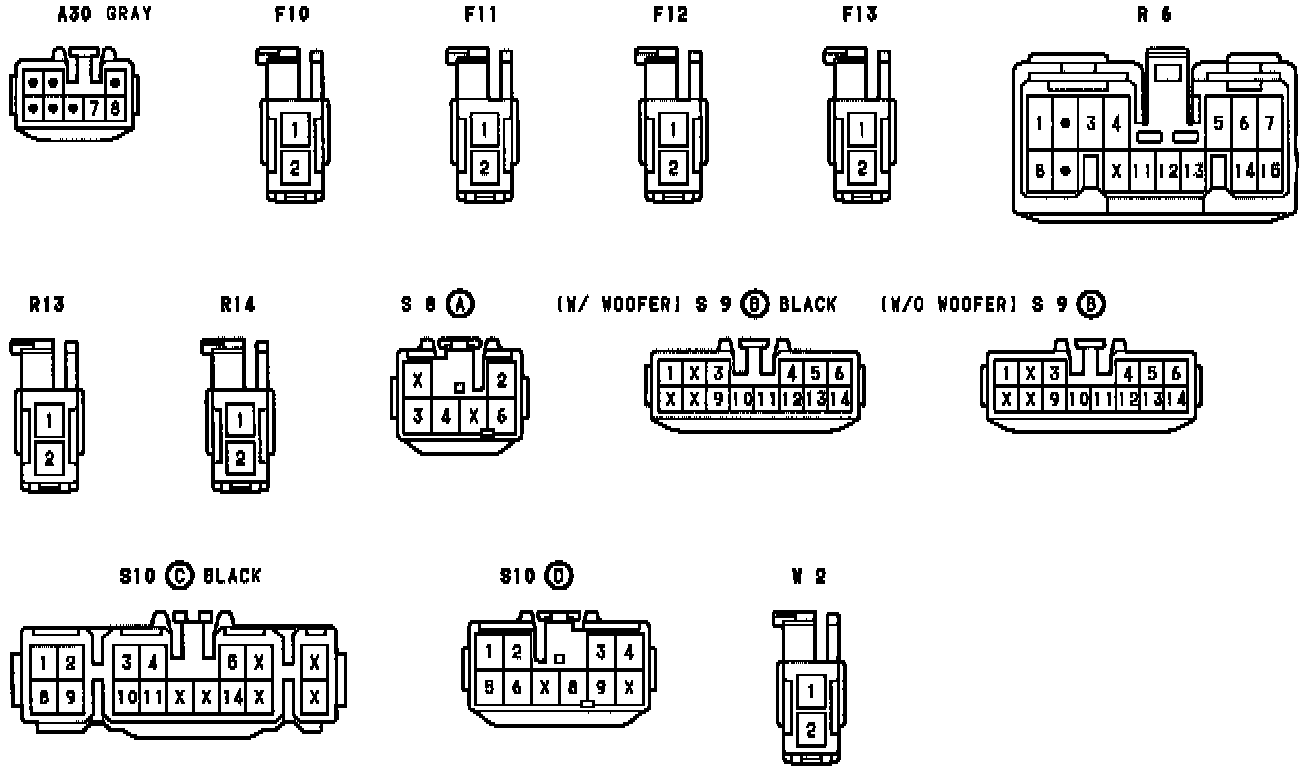

Radio And Player (W/ Stereo Power Amplifier) Connector Views:
