Supra L6-183 2997cc 3.0L DOHC Turbo (2JZ-GTE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cruise Control
Cruise Control

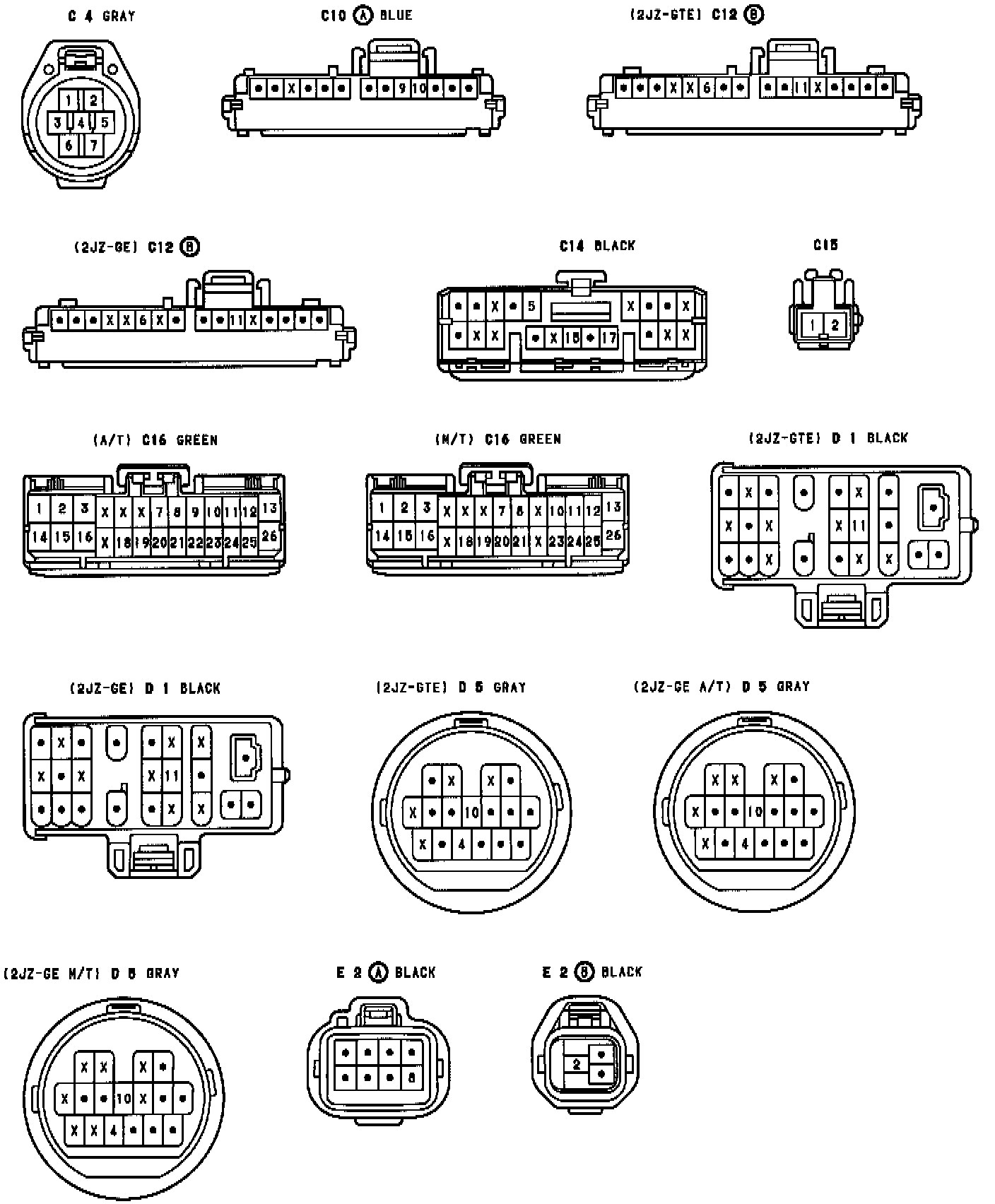

Cruise Control Connector Views:
Cruise Control Connector Views:
