Home >> Toyota >> 1994 >> Supra L6-183 2997cc 3.0L DOHC Turbo (2JZ-GTE) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> Wiring Schematic >> ABS W/Traction Control (TRAC)

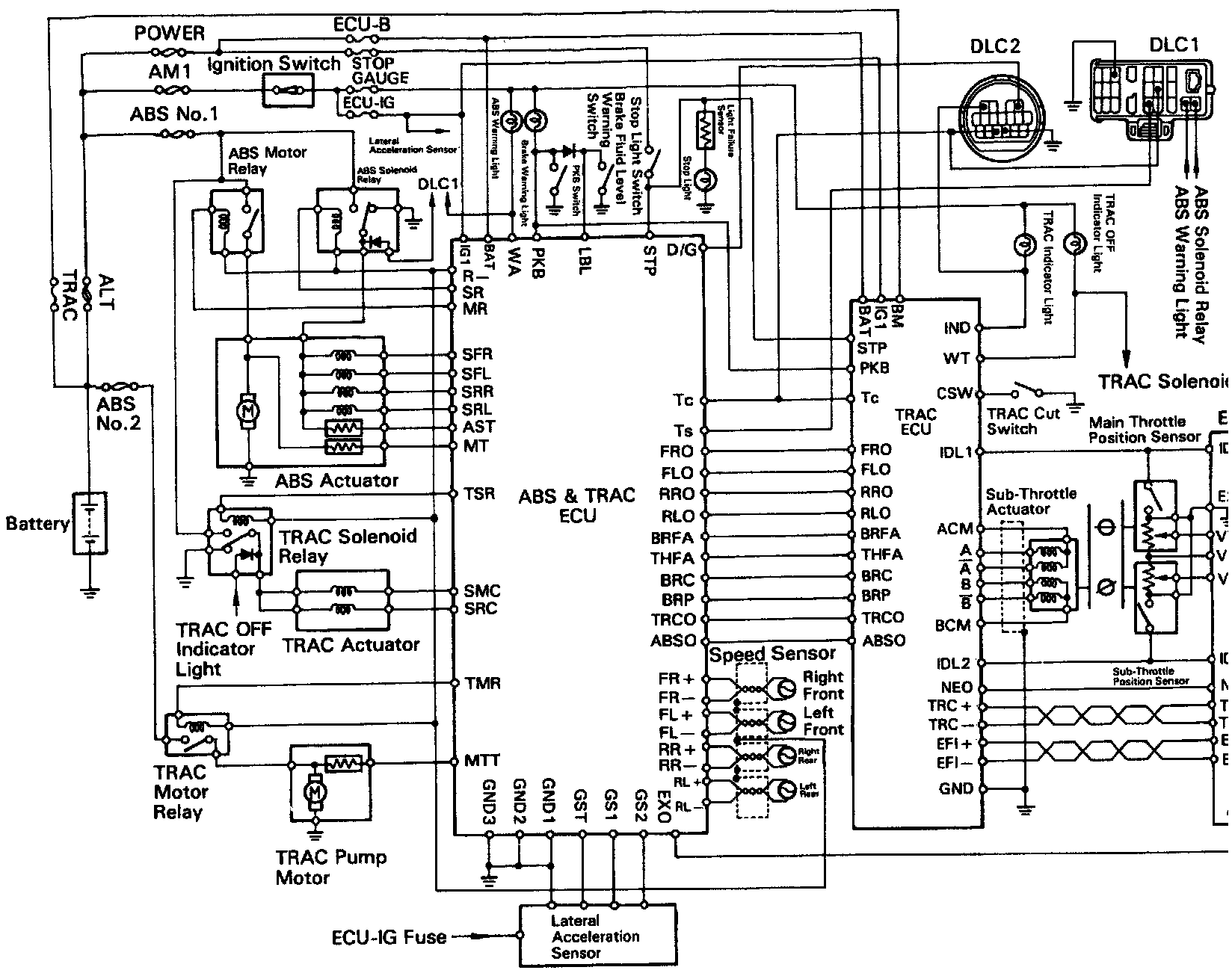

ABS W/Traction Control (TRAC)

��fI:
