DTC 89
DTC 89

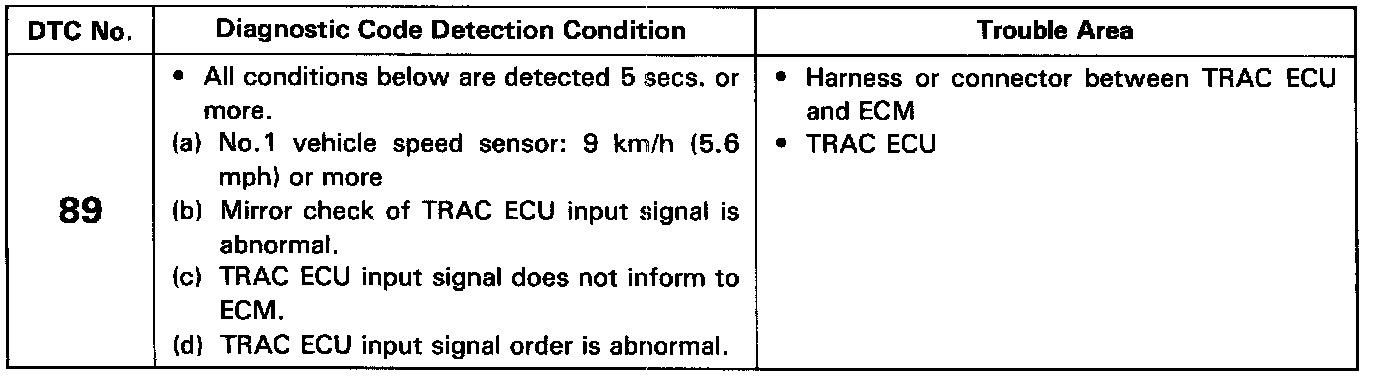

DTC 89 TRAC ECU Circuit
CIRCUIT DESCRIPTION
When the transmission is in the shift up or stall condition, the TRAC ECU sends a sub-throttle valve close signal to the sub-throttle actuator.
WIRING DIAGRAM

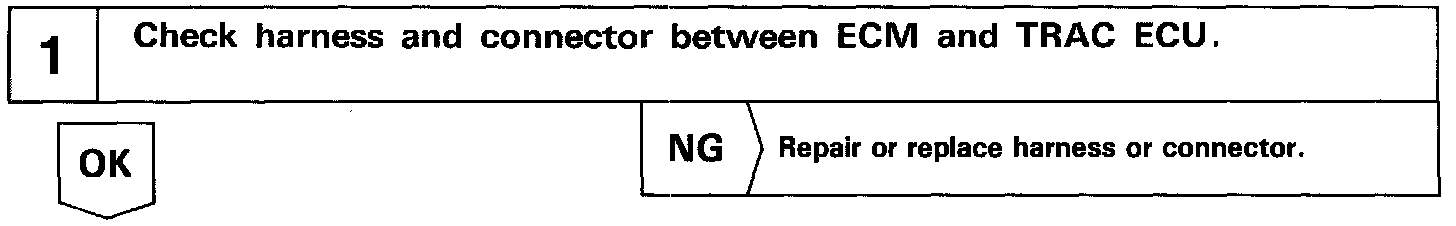

INSPECTION PROCEDURE
