DTC 38

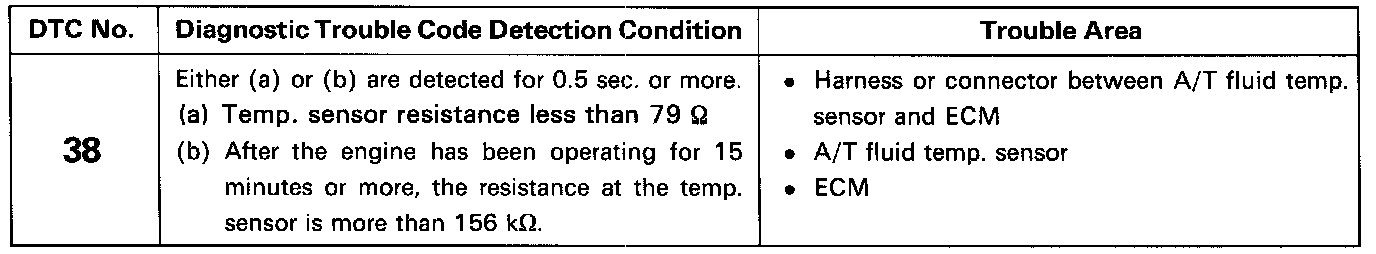

DTC 38 ATF Temperature Sensor Circuit






CIRCUIT DESCRIPTION
The fluid temp. sensor converts fluid temp. into resistance values which is input into the ECM.

WIRING DIAGRAM

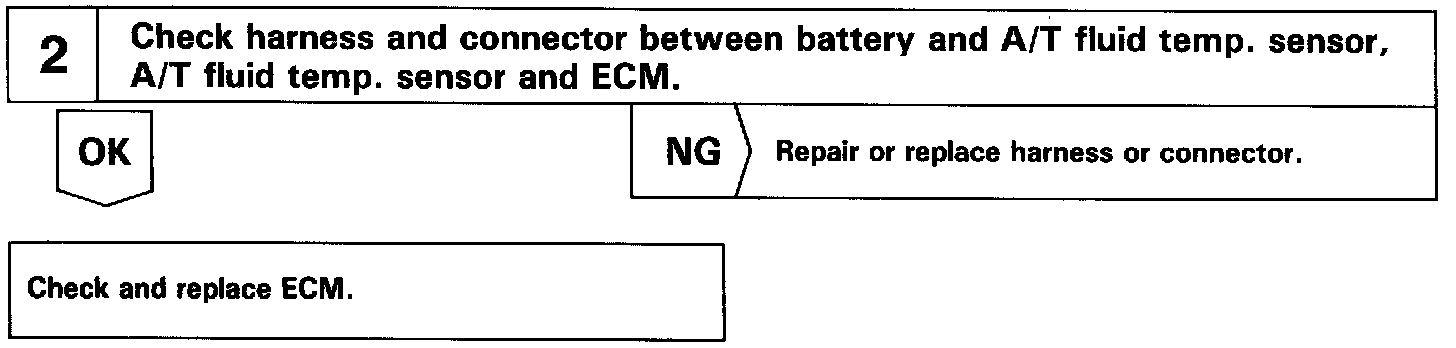

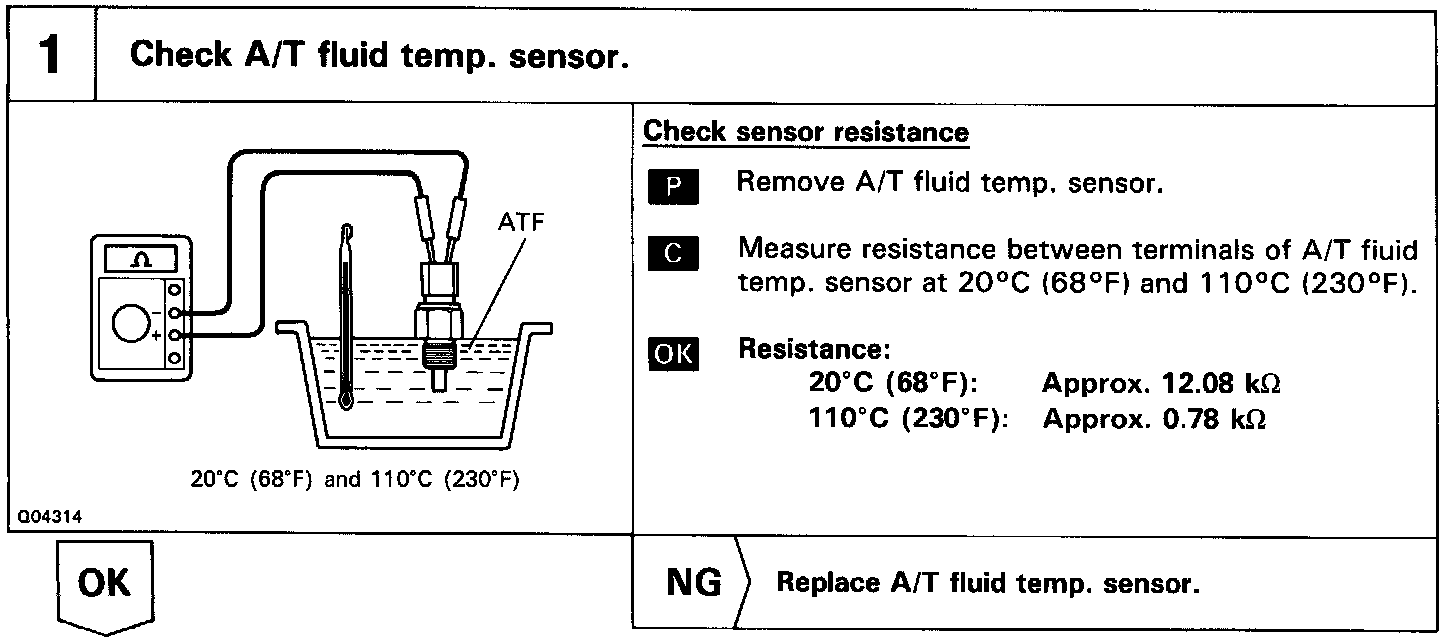

INSPECTION PROCEDURE
