Pinout Values and Diagnostic Parameters

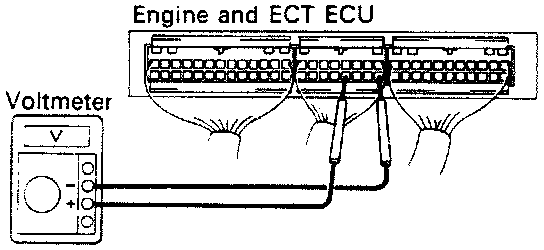

ECU Voltage Measurement:

- Turn on the ignition switch.
- Do not disconnect Engine and ECT ECU connector.
- Measure the voltage at each terminal.

ECU Voltage Chart:

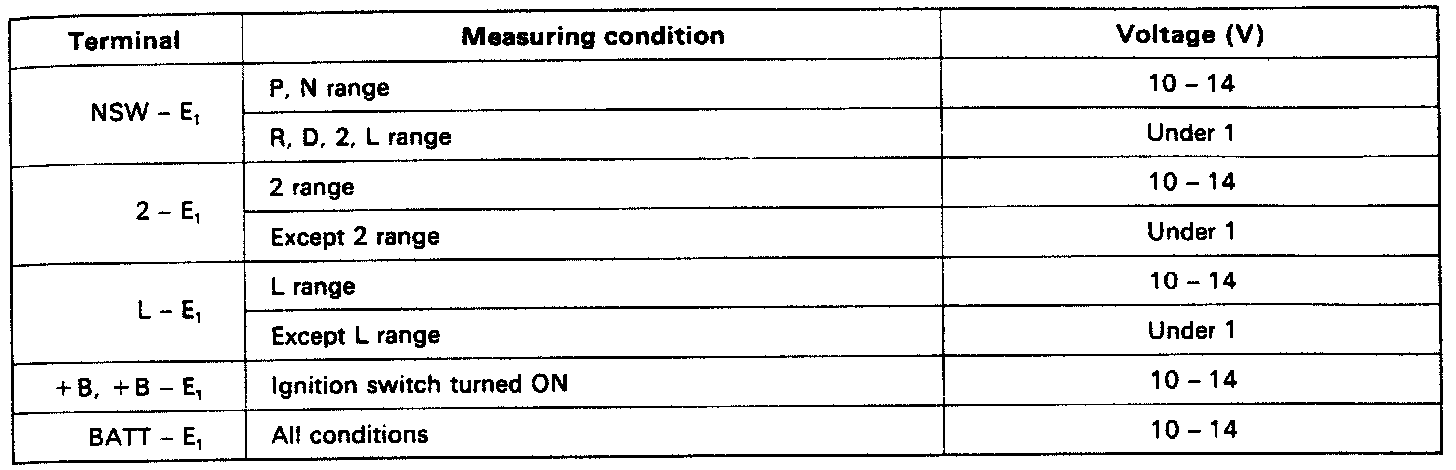

Terminal Voltage - Page 1

ECU Voltage Chart, Page 2:

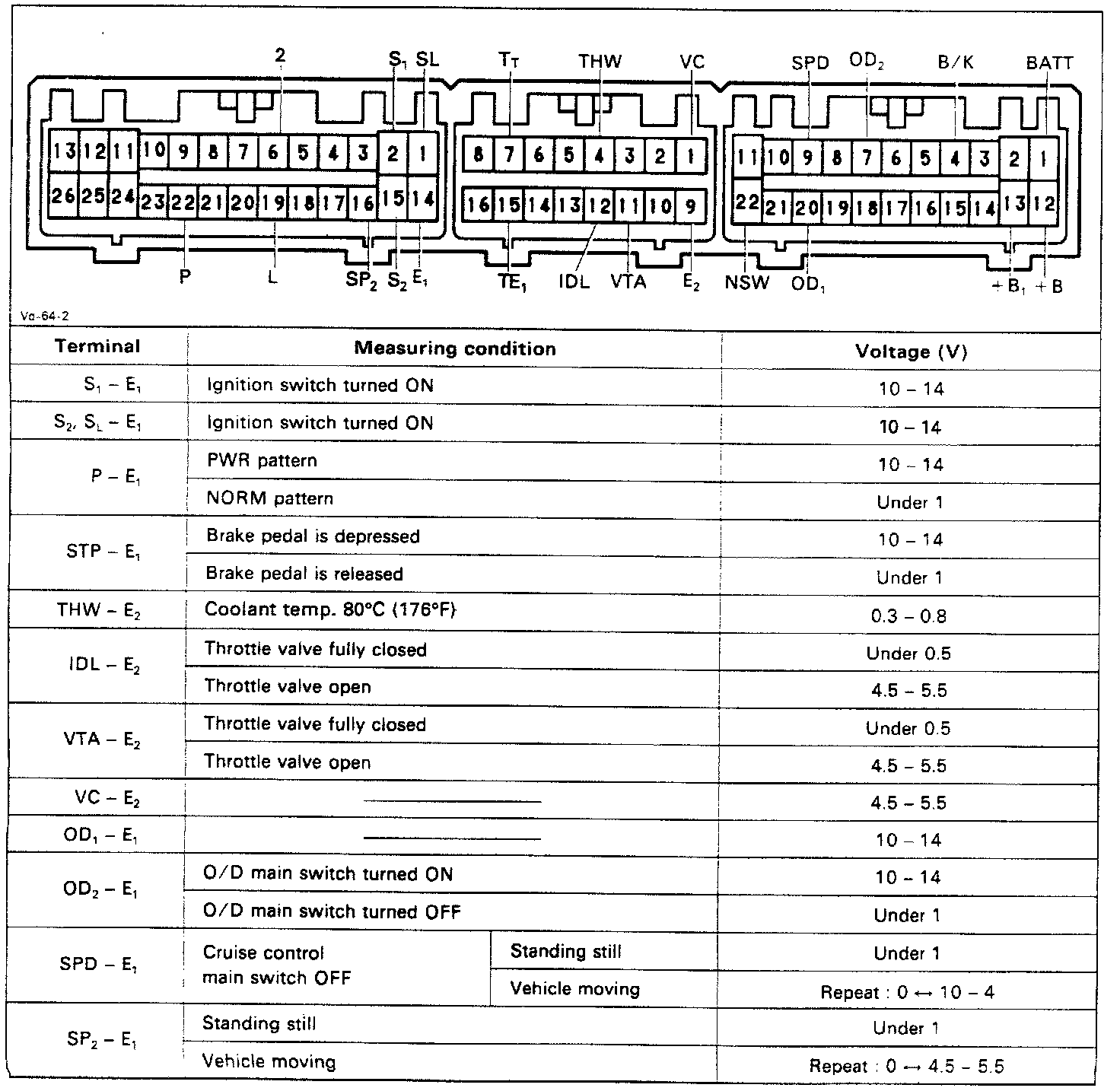

Terminal Voltage - Page 2
