With C52 Transaxle/2WD

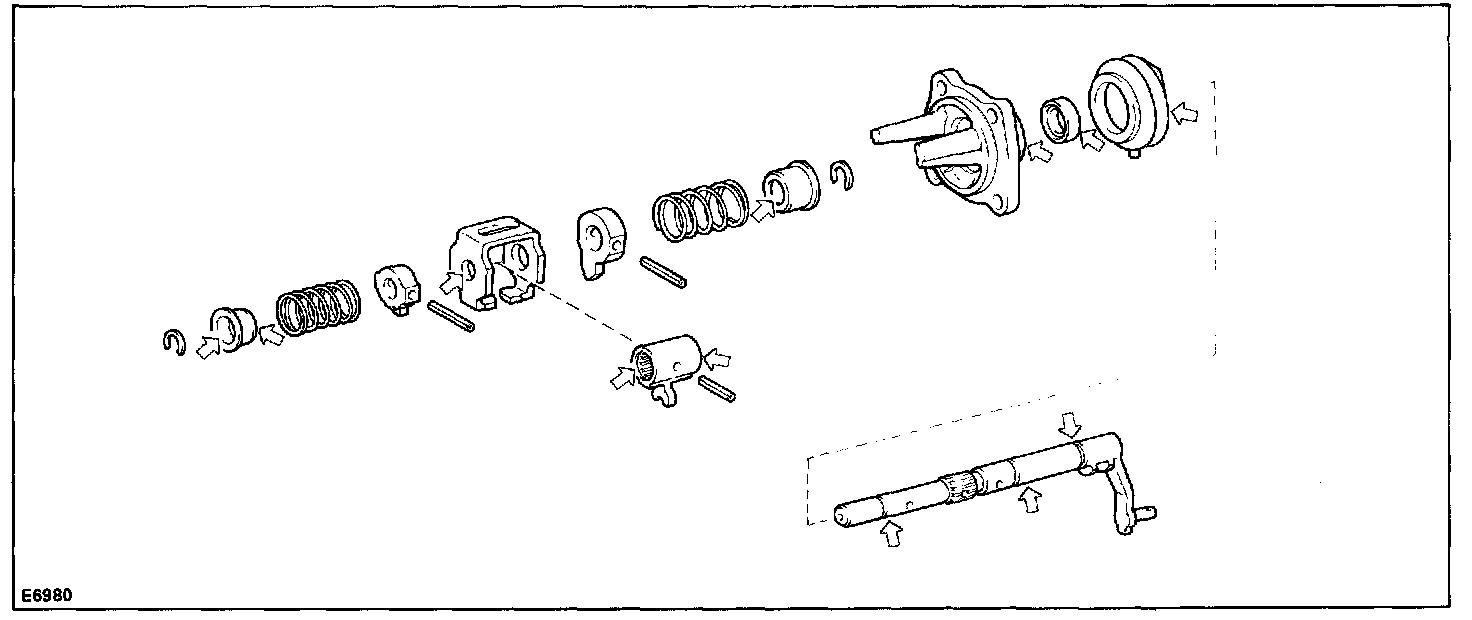

1. APPLY MP GREASE TO PARTS. AS SHOWN

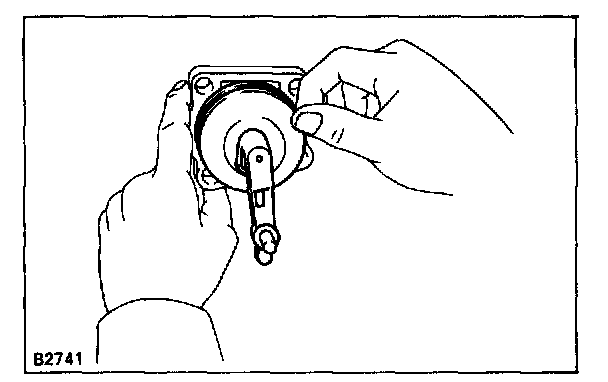

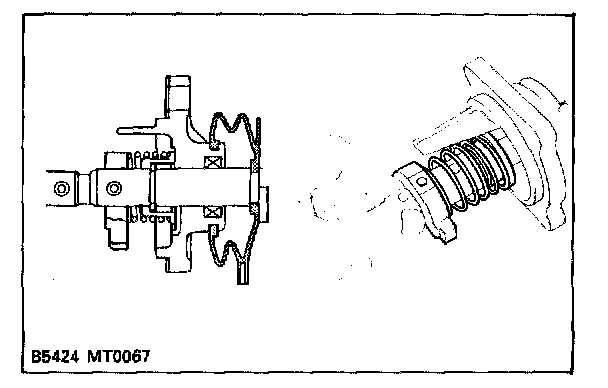

2. INSTALL SHIFT AND SELECT LEVER SHAFT
Install the boot and shaft to the control shaft cover.

HINT: Make sure to install the boot in correct direction. Position the air bleed of the boot downward.

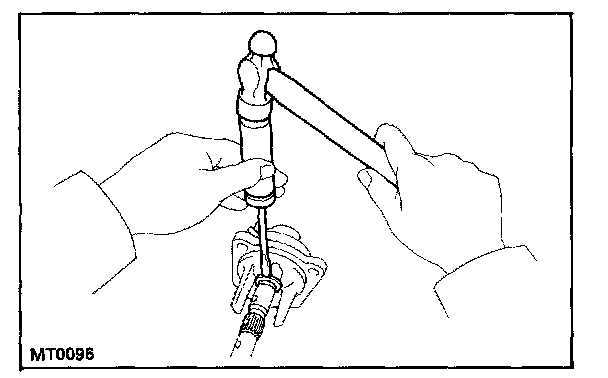

3. INSTALL SNAP RING
Using a screwdriver and hammer, tap in the snap ring.

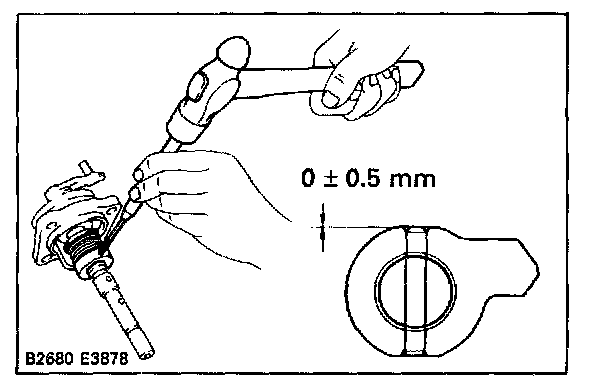

4. INSTALL SELECT INNER LEVER
a. Install the No.1 select spring seat, No.1 select spring and select inner lever.

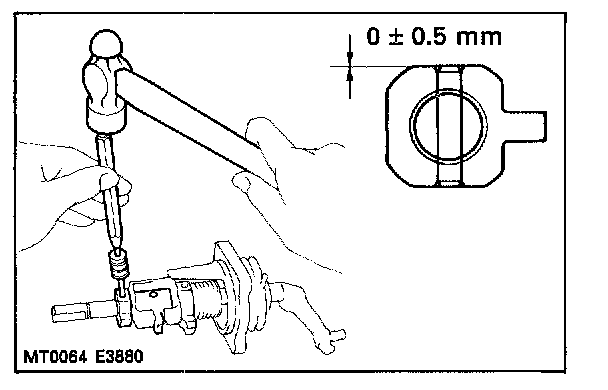

b. Using a pin punch and hammer, drive in the slotted spring pin to the select inner lever.

Drive in depth: 00.5 mm (0 ± 0.020 in.)




5. INSTALL SHIFT INTERLOCK PLATE AND NO.1 SHIFT INNER LEVER
a. Install the shift interlock plate No.1 shift inner lever.




b. Using a pin punch and hammer, drive in the slotted spring pin to the No.1 shift inner lever.

Drive in depth: 0 ± 0.5 mm (0 ± 0.020 in.)

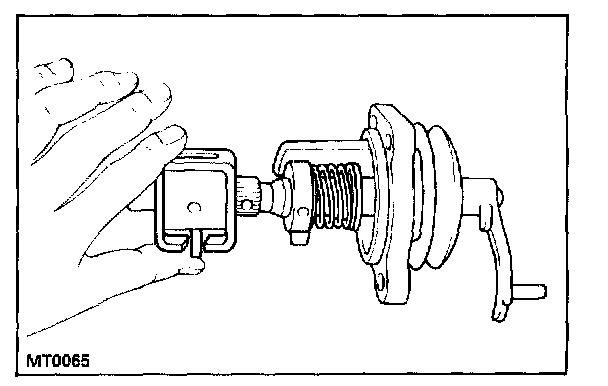

c. Check that the shift interlock plate turns smoothly.

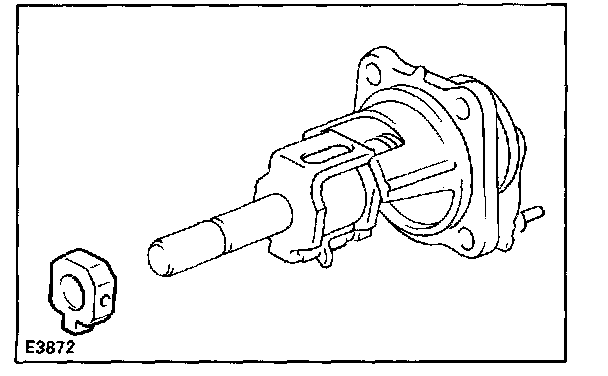

6. INSTALL NO.2 SHIFT INNER LEVER
a. Install the No.2 shift inner lever.




b. Using a pin punch and hammer, drive in the slotted spring pin to the No.2 shift inner lever.

Drive in depth: 0 ± 0.5 mm (0 ± 0.020 in.)

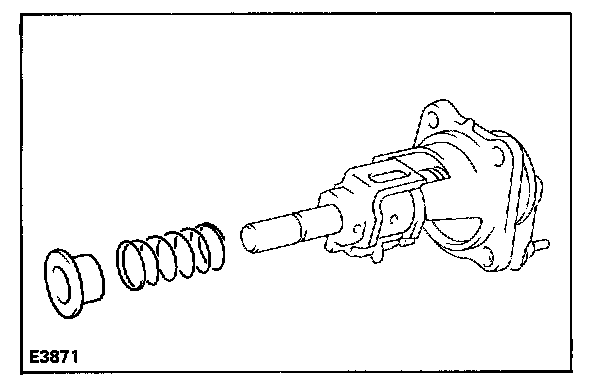

7. INSTALL NO.2 COMPRESSION SPRING, NO.2 SELECT SPRING SEAT AND SNAP RING
a. Install the No.2 compression spring and No.2 select spring seat.

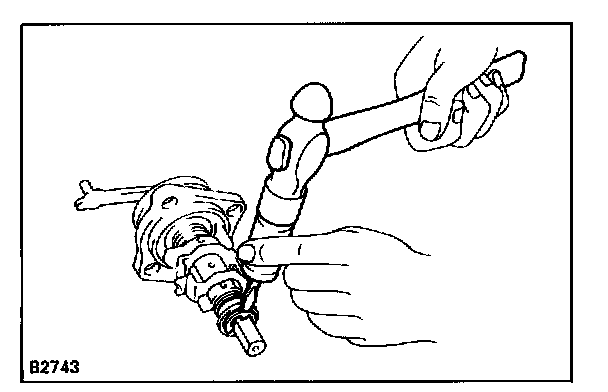

b. Using a screwdriver and hammer, tap in the E-ring.
