With C52 Transaxle/2WD

1. INSPECT THIRD AND FOURTH GEAR THRUST CLEARANCE

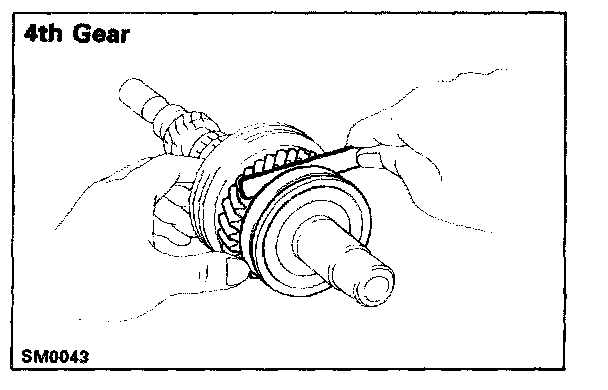

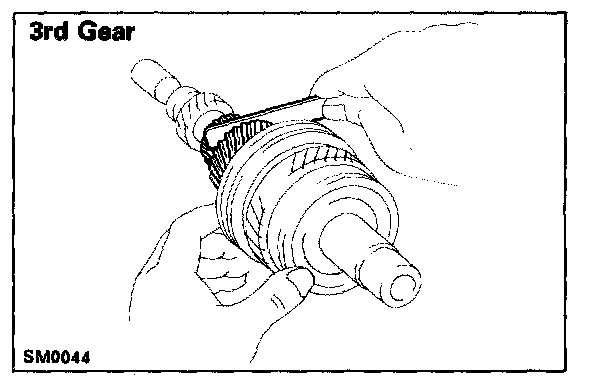

Using a feeler gauge, measure the thrust clearance.

Standard clearance:
3rd gear 0.10-0.35 mm (0.0039 - 0.0138 in.)
4th gear 0.10 - 0.55 mm (0.0039 - 0.0217 in.)

Maximum clearance:
3rd gear 0.40 mm (0.0157 in.)
4th gear 0.60 mm (0.0236 in.)




2. INSPECT THIRD AND FOURTH GEAR OIL CLEARANCE

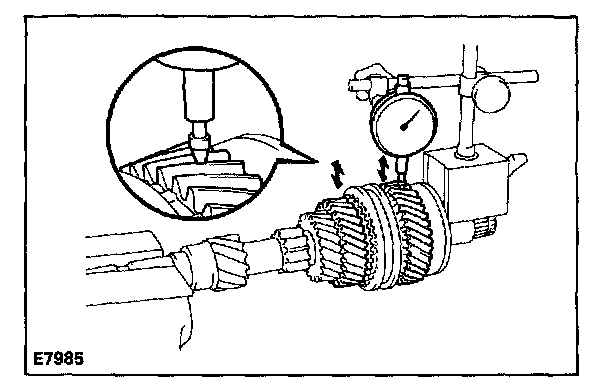

Using dial indicator, measure the oil clearance between the gear and shaft.

Standard clearance: 0.015 - 0.058 mm (0.0006 - 0.0023 in.)
Maximum clearance: 0.070 mm (0.0028 in.)

If the clearance exceeds the maximum, replace the gear, needle roller bearing or shaft.




3. REMOVE SNAP RING

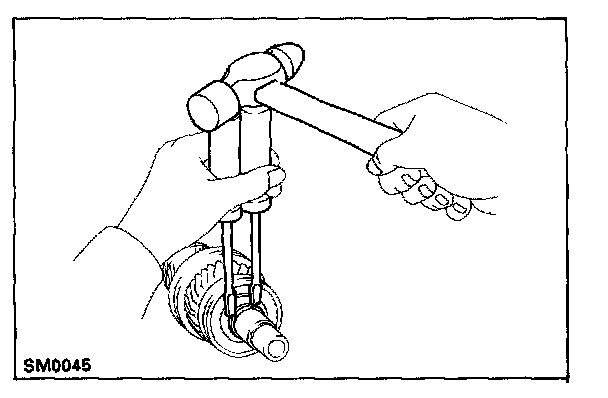

Using two screwdriver and a hammer, tap out the snap ring.




4. REMOVE REAR BALL BEARING, FOURTH GEAR, NEEDLE ROLLER BEARING, SPACER AND SYNCHRONIZER RING FROM INPUT SHAFT

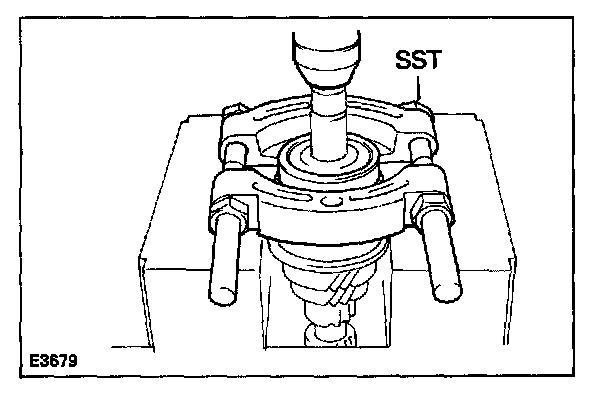

a. Using SST and a press, remove the rear ball bearing.
SST 09950-00020
b. Remove the 4th gear, needle roller bearing, spacer and synchronizer ring.




5. REMOVE SNAP RING

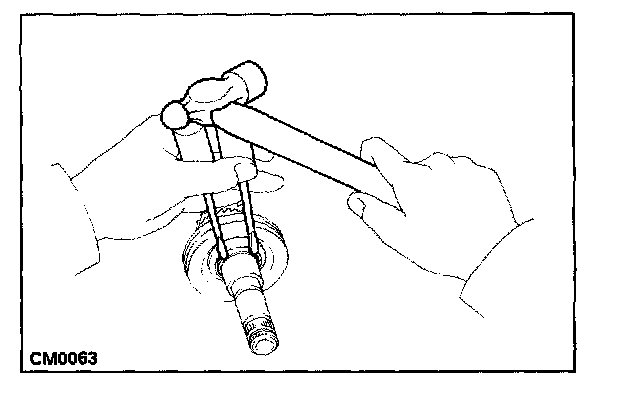

Using two screwdriver and a hammer, tap out the snap ring.




6. REMOVE NO.2 HUB SLEEVE ASSEMBLY, THIRD
GEAR, SYNCHRONIZER RING AND NEEDLE ROLLER BEARING

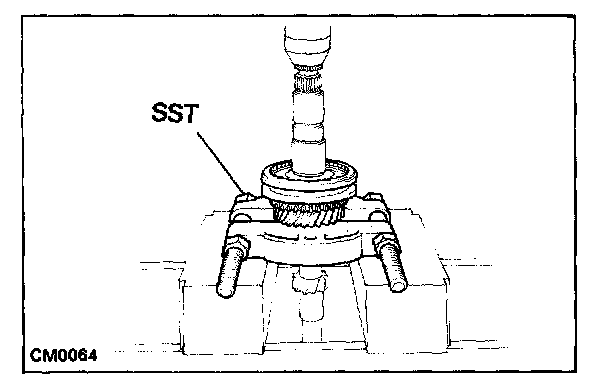

Using SST and a press, remove No.2 hub sleeve, 3rd gear, synchronizer ring and needle roller bearing.
SST 09950-00020




7. REMOVE NO.2 HUB SLEEVE, SHIFTING KEYS AND SPRINGS FROM NO.2 CLUTCH HUB

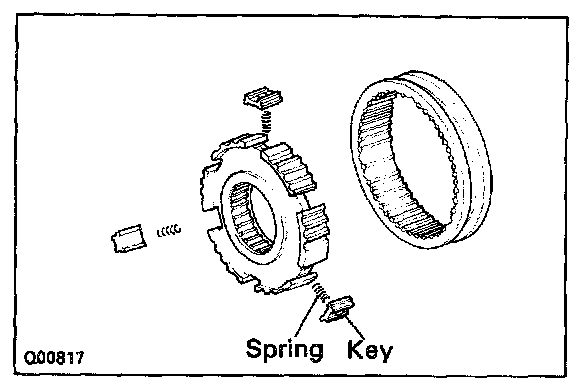

Using a screwdriver, remove the three shifting keys and springs from No.2 clutch hub.
