Shift Cable: Adjustments

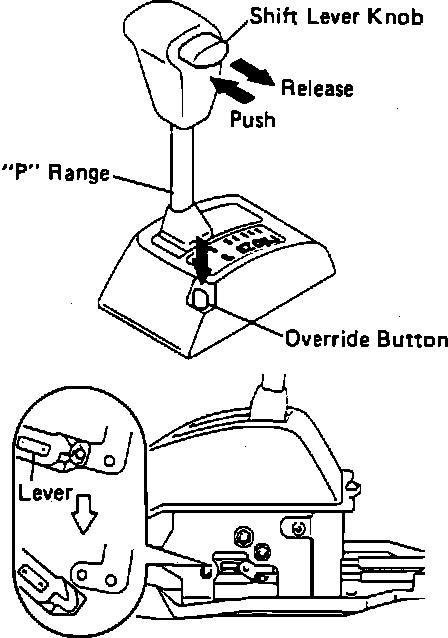

Fig. 4 Park Lock Cable Adjustment:

1. Remove slide key, then lightly pull park lock cable, to remove looseness.
2. Do not strongly pull on cable.
3. Install lock cable slide key.
4. Push set cable lever inward, Fig. 4, set cable lever should go down.
5. Move shift lever to P range.
6. While pushing shift lock override button, push shift lever knob, then release it. Ensure set cable lever is released.
