Lights - Aerodynamic Headlamps Adjustment

91toyota05

REF.: ELECTRICAL


NO.: EL91-007


DATE: SEPTEMBER 13,1991


MODEL: ALL MODELS


ADJUSTMENT OF AERODYNAMIC HEADLAMP ASSEMBLY

The aerodynamic headlamps used on some Toyota models require an adapter for proper headlamp adjustments. Identification of the correct adaptor settings is essential for obtaining accurate adjustment of these headlamps.

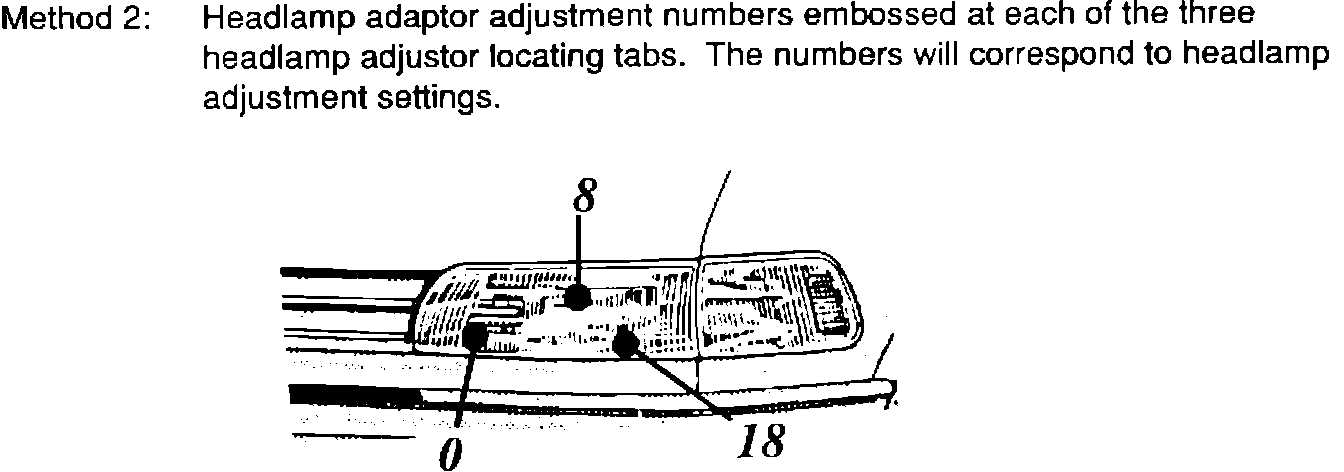

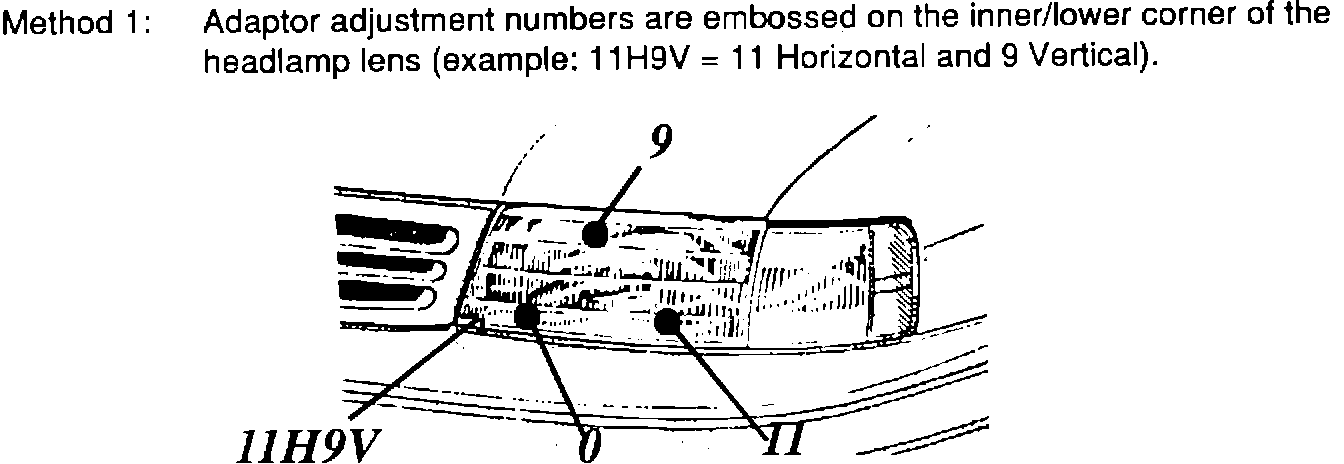

The following are the two methods used by Toyota to identify aerodynamic headlamp adaptor settings:

EXAMPLES:

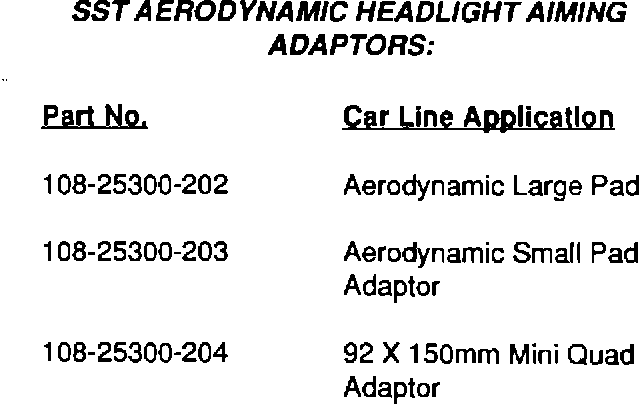

SST HEADLAMP AIMING ADAPTORS

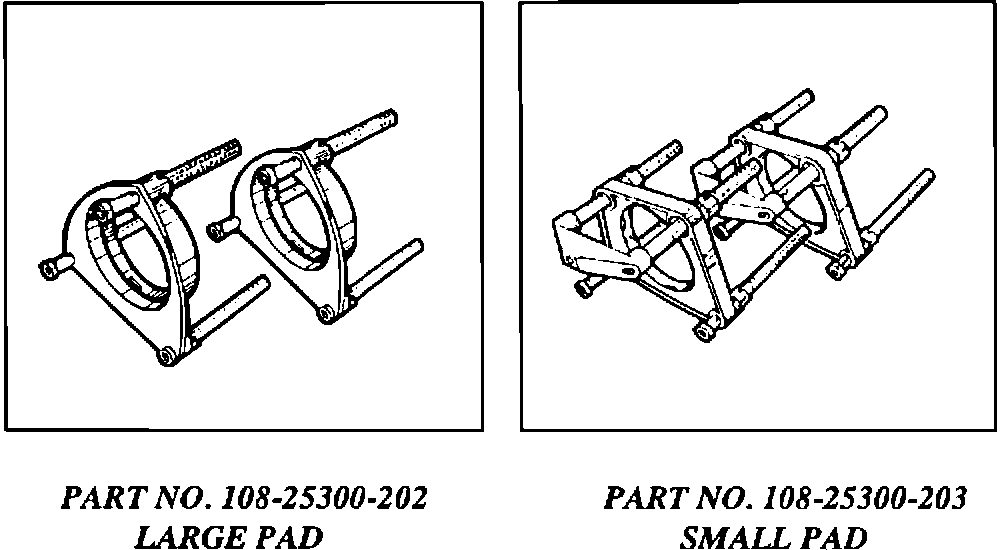

There are two types of SST adaptors (large and small pad) which must be used to properly set headlamps needing adjustment:
