Home >> Toyota >> 1992 >> Celica Convertible L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Points >> ID and IF

ID and IF

Ground Points - ID And IF:

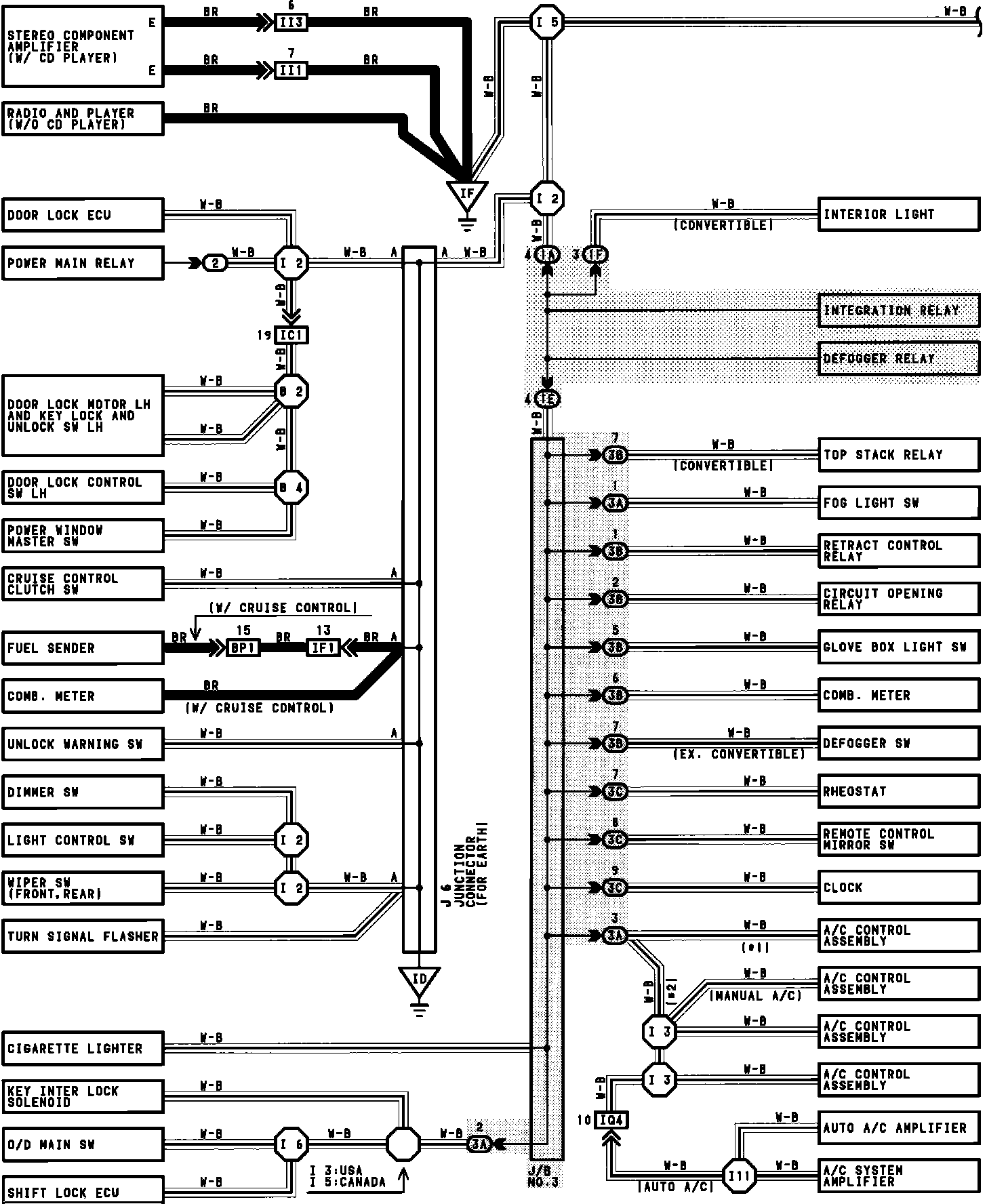

WIRING DIAGRAM

ID Left Kick Panel
IF Instrument Panel Brace RH
