BI and BL

Ground Points - BI And BL:

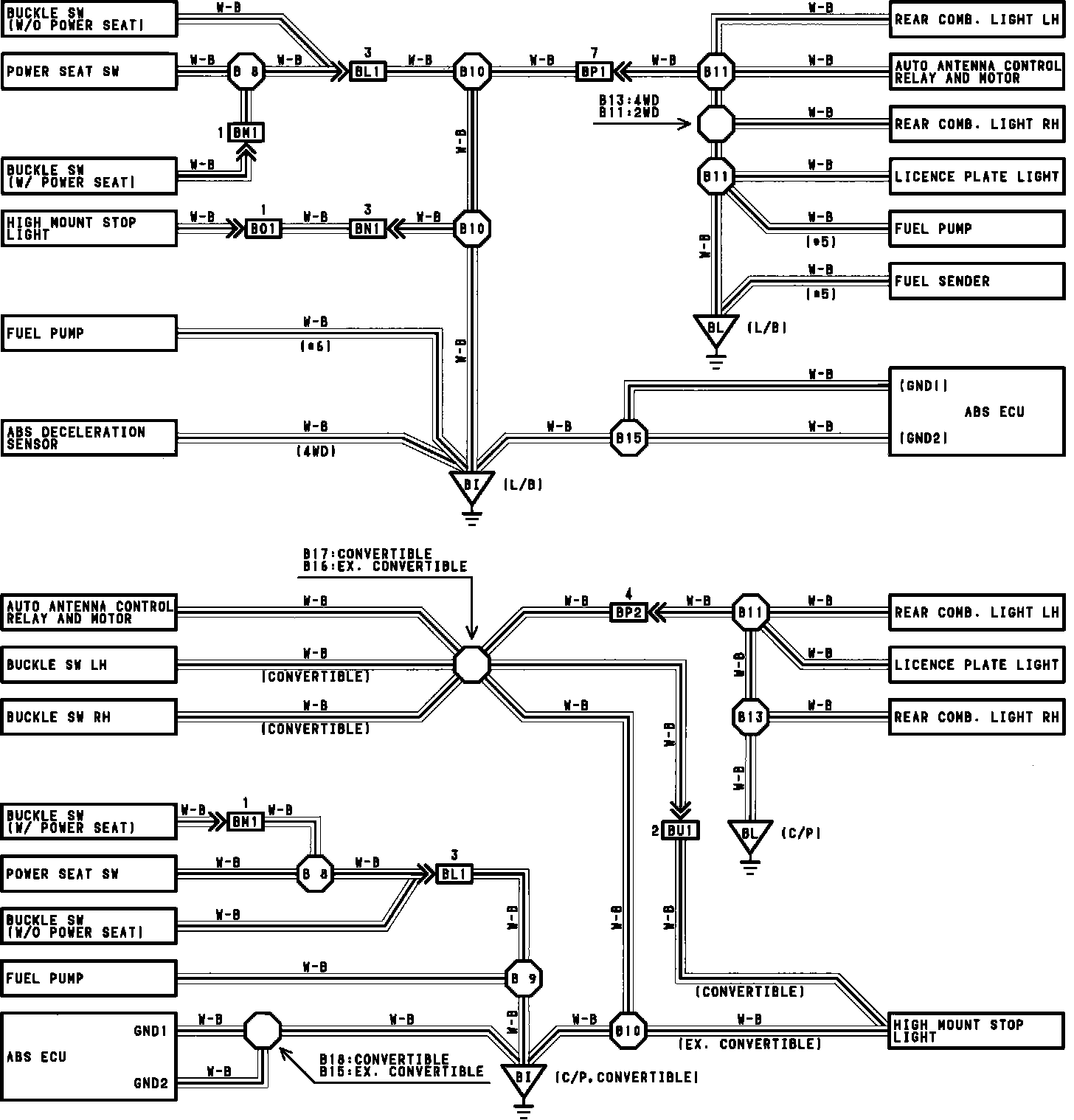

WIRING DIAGRAM

BI Under Left Center Pillar
BL Back Panel Center
