Alignment Specifications

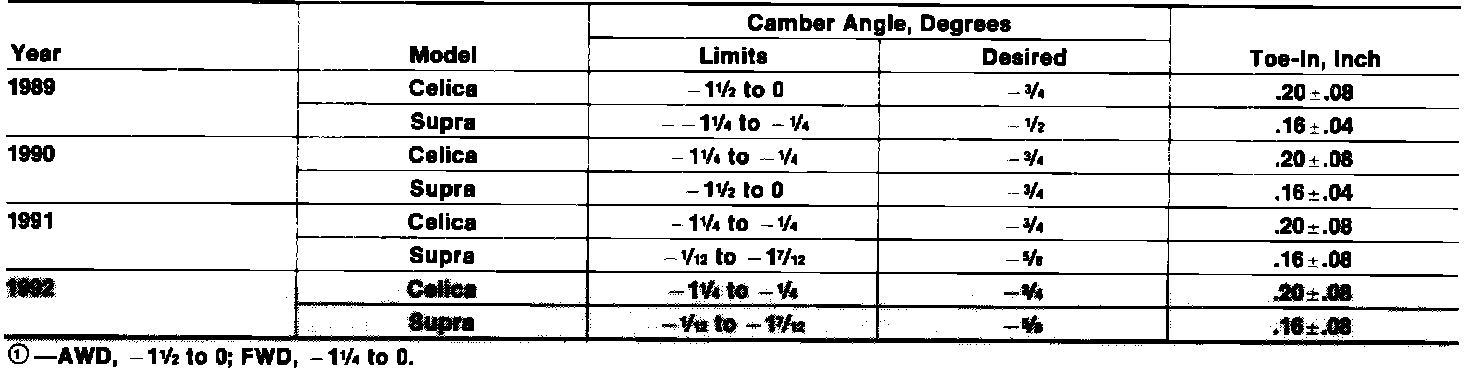

Front Wheel Alignment Specifications:



Rear Wheel Alignment Specifications:
