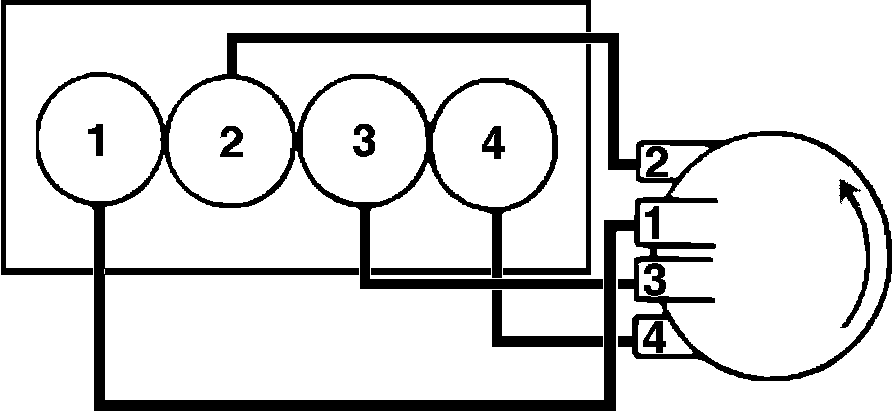

Firing Order

FIRING ORDER: 1 3 4 2

DISTRIBUTOR:

Torque Value 16 ft.lb (22 Nm)

DISTRIBUTOR ROTATION:

Distributor Rotation:

SIGNAL GENERATOR (PICK-UP COIL) AIR GAP:

G Pickup 0.008 - 0.016 in (.2 - .4 mm) [1]

NE Pickup 0.008 - 0.016 in (.2 - .4 mm) [1]

[1] Air gap is not adjustable

SPARK PLUGS:

Gap 0.043 in (1.1 mm)

Torque Value 13 ft.lb (18 Nm)
