Home >> Toyota >> 1992 >> Celica Convertible L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly >> D/F Technical Data

D/F Technical Data

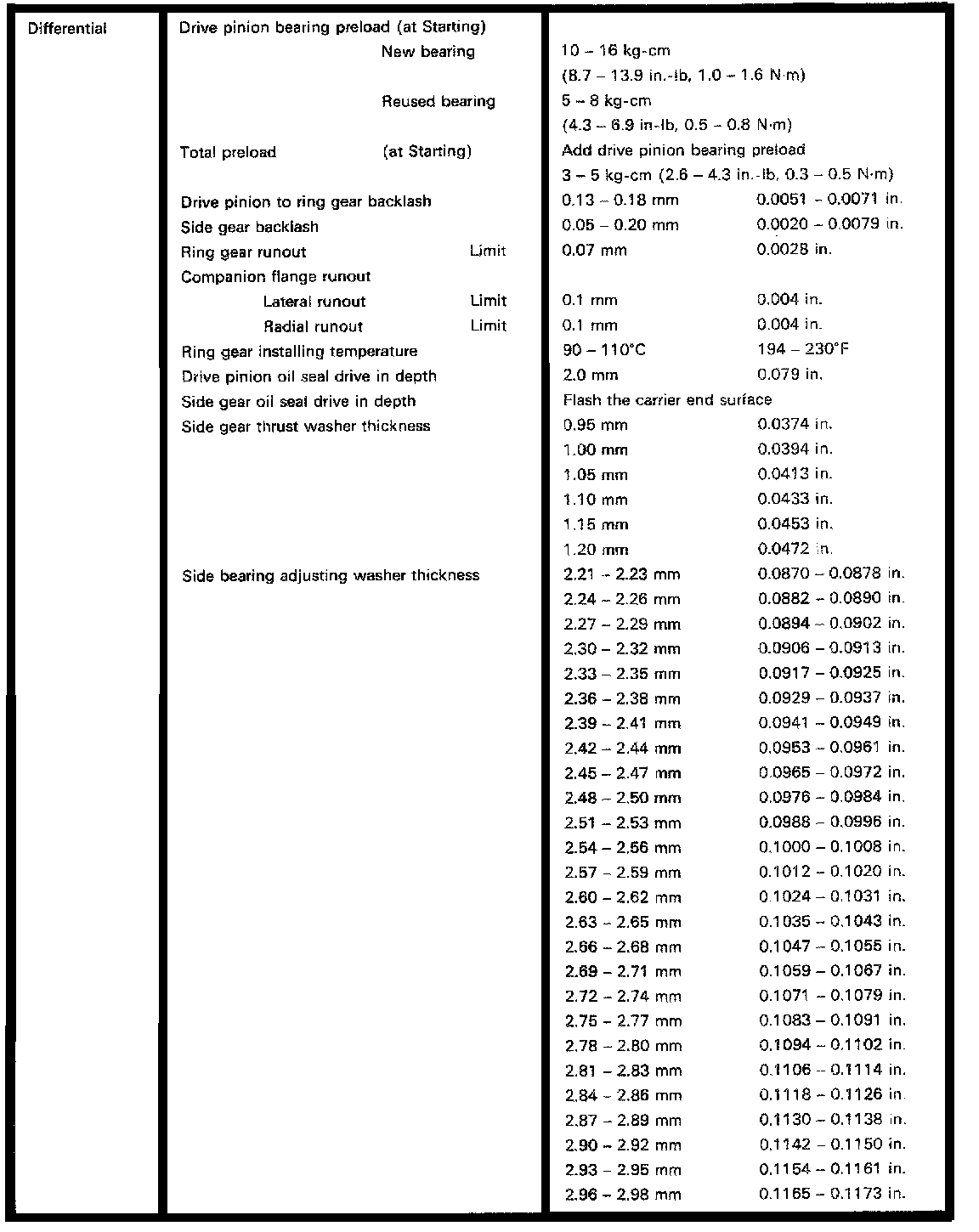

Rear Differential, Carrier Clearances:

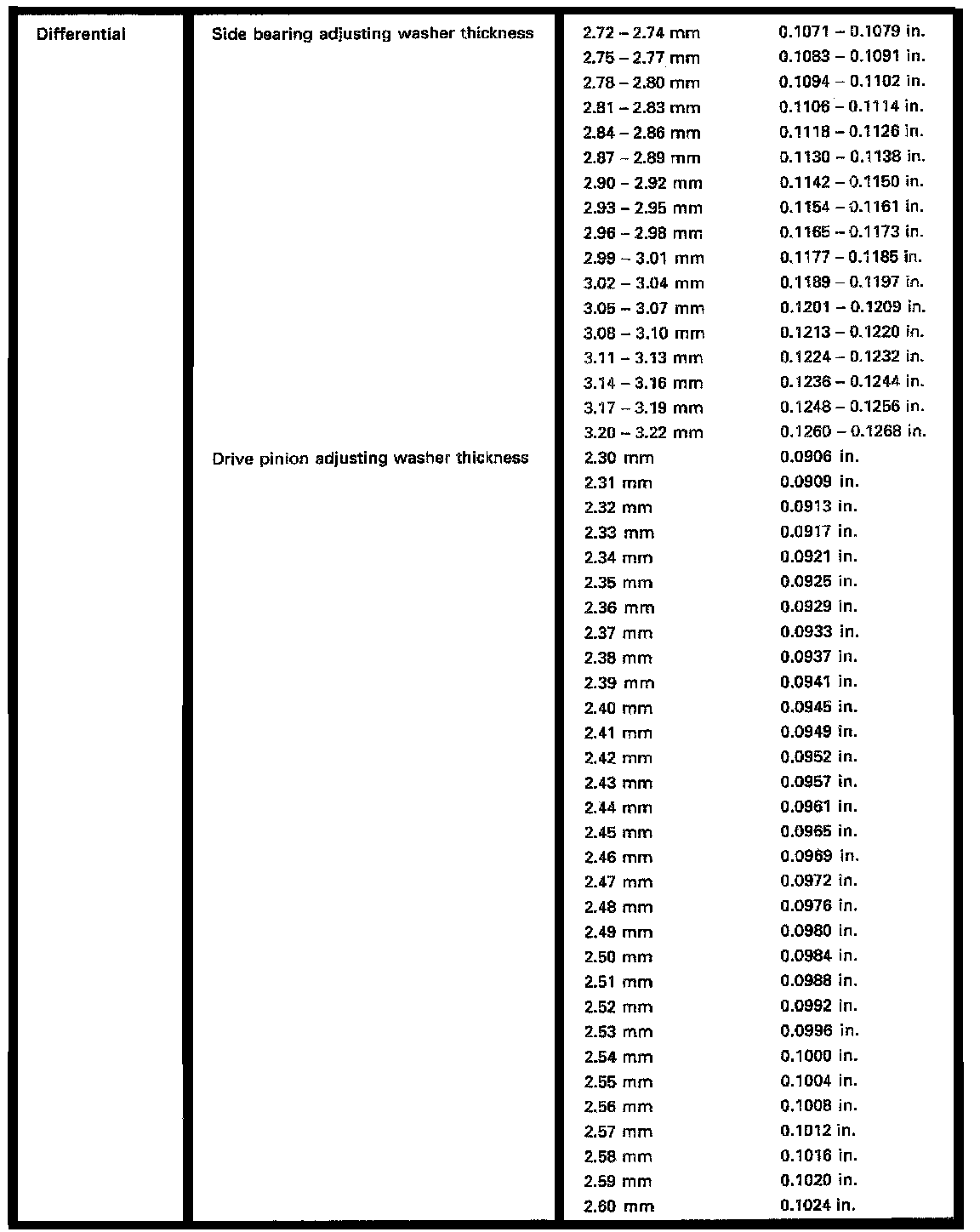

Rear Differential, Side Bearing/Pinion Thickness:

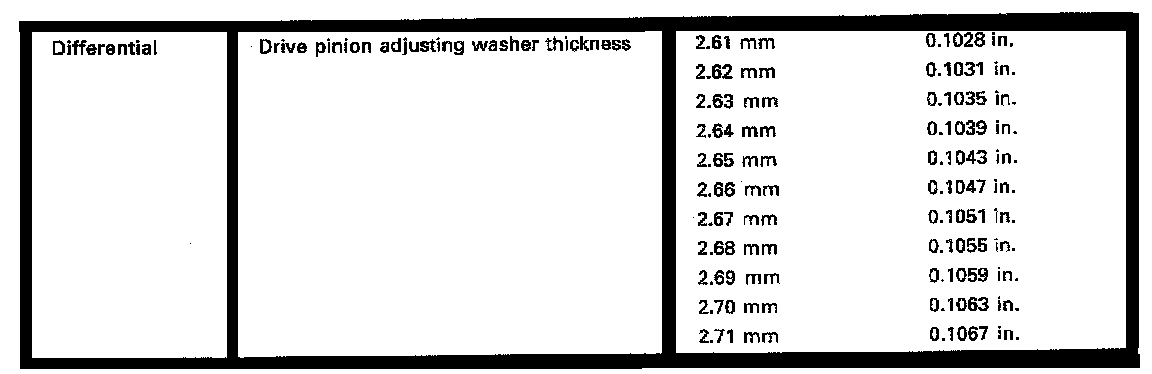

Rear Differential, Drive Pinion Thickness Cont.:
