Celica Convertible L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures
Fig. 9 Airbag Warning Lamp Diagnosis (Part 1 Of 2). Celica, MR2 & Supra:

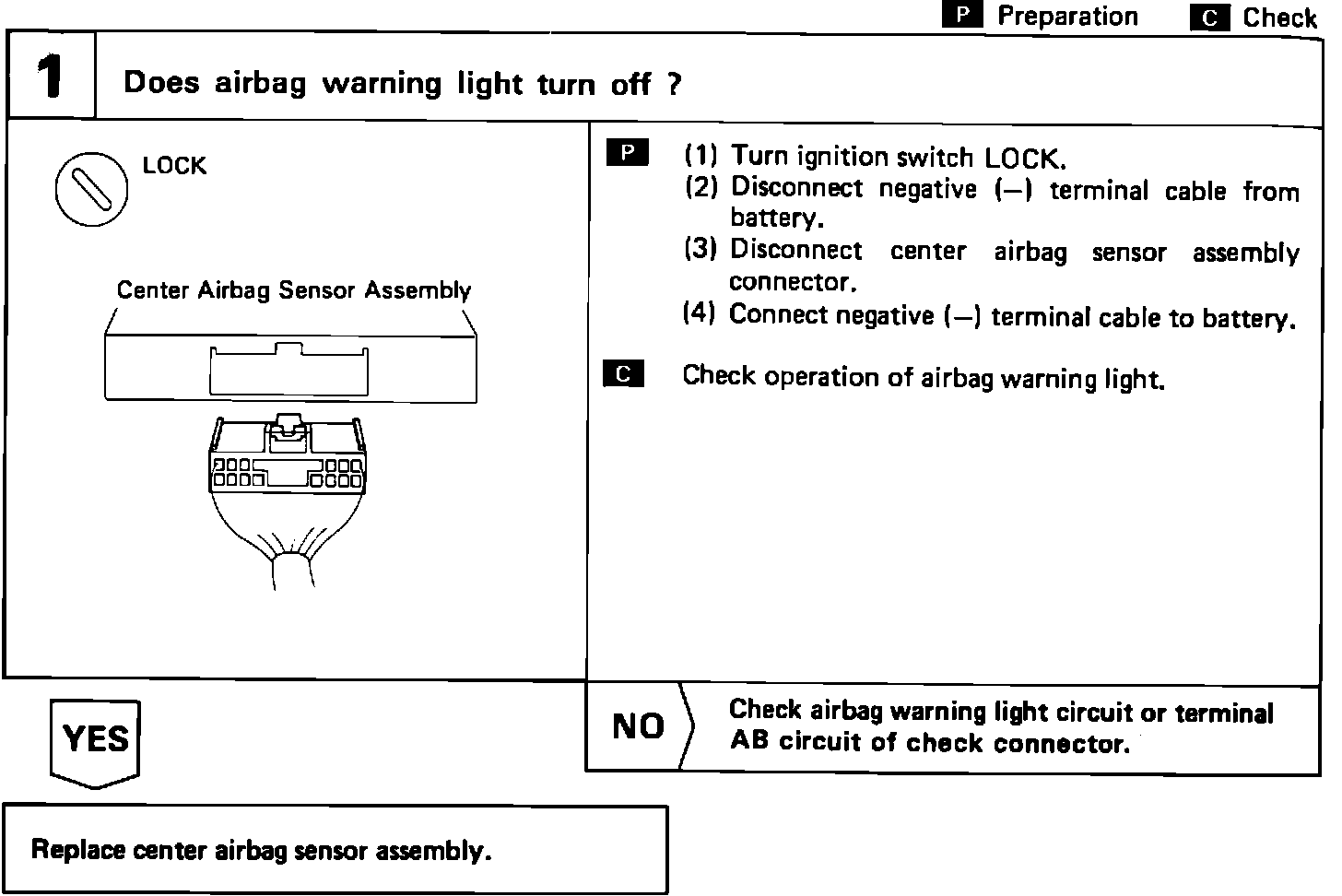

Fig. 9 Airbag Warning Lamp Diagnosis (Part 2 Of 2). Celica & Supra:
