SRS Component Connectors

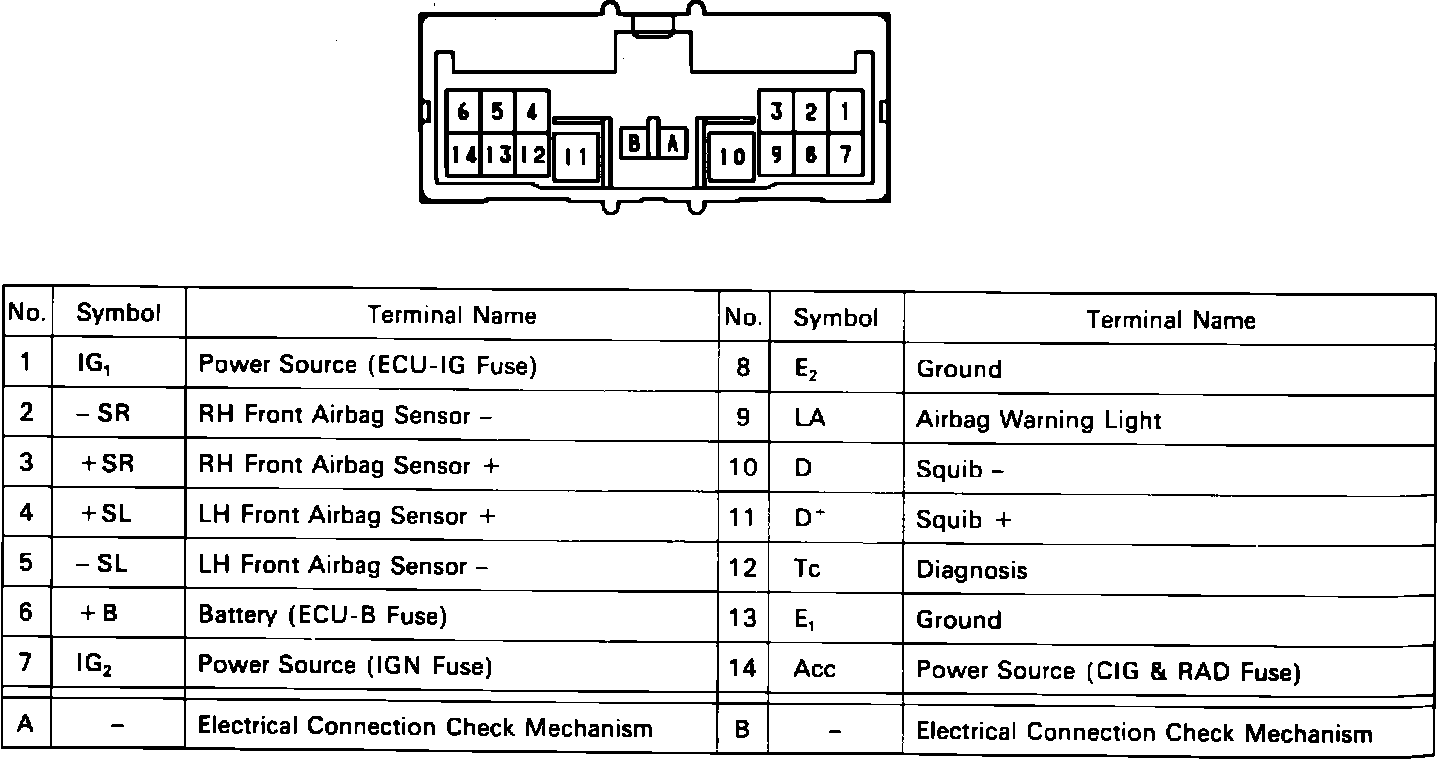

Fig. 22 Center Airbag Sensor Assembly Connector. Celica & Supra:

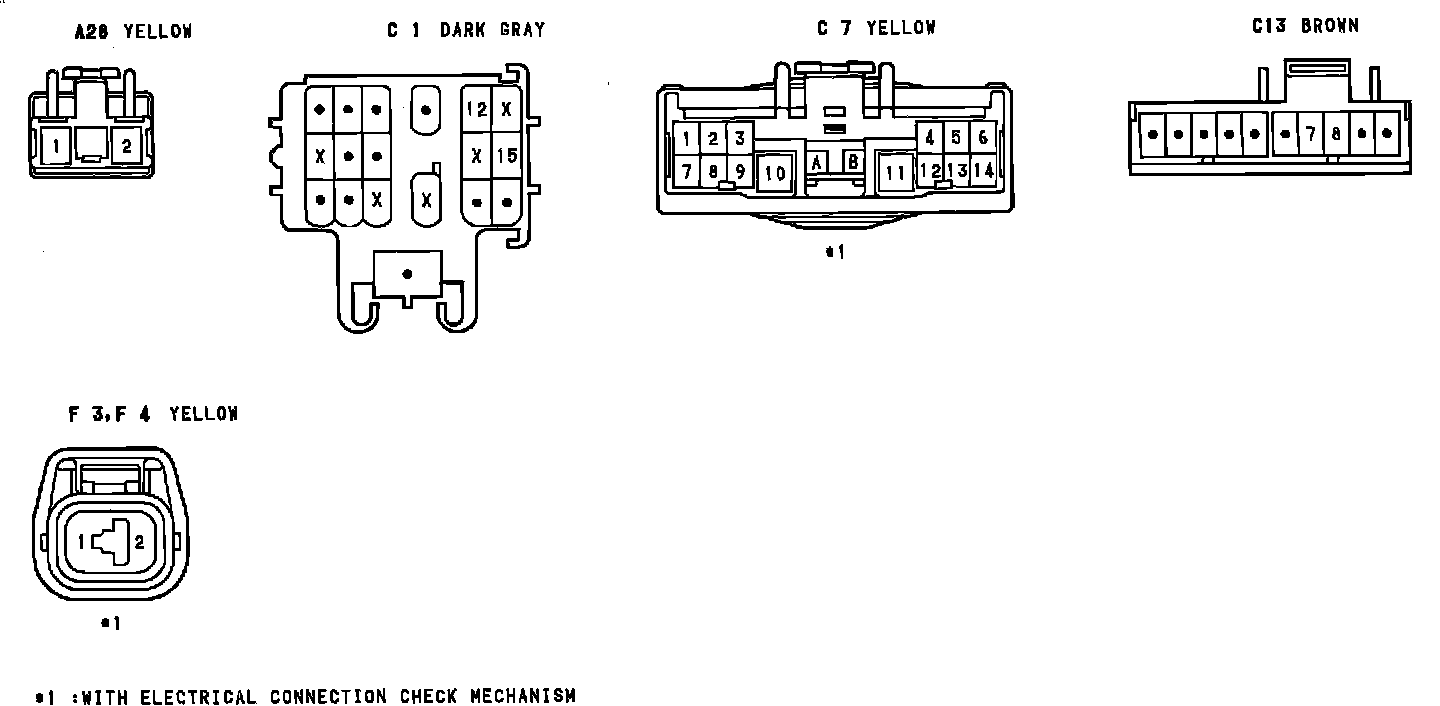

Connector Identification:
