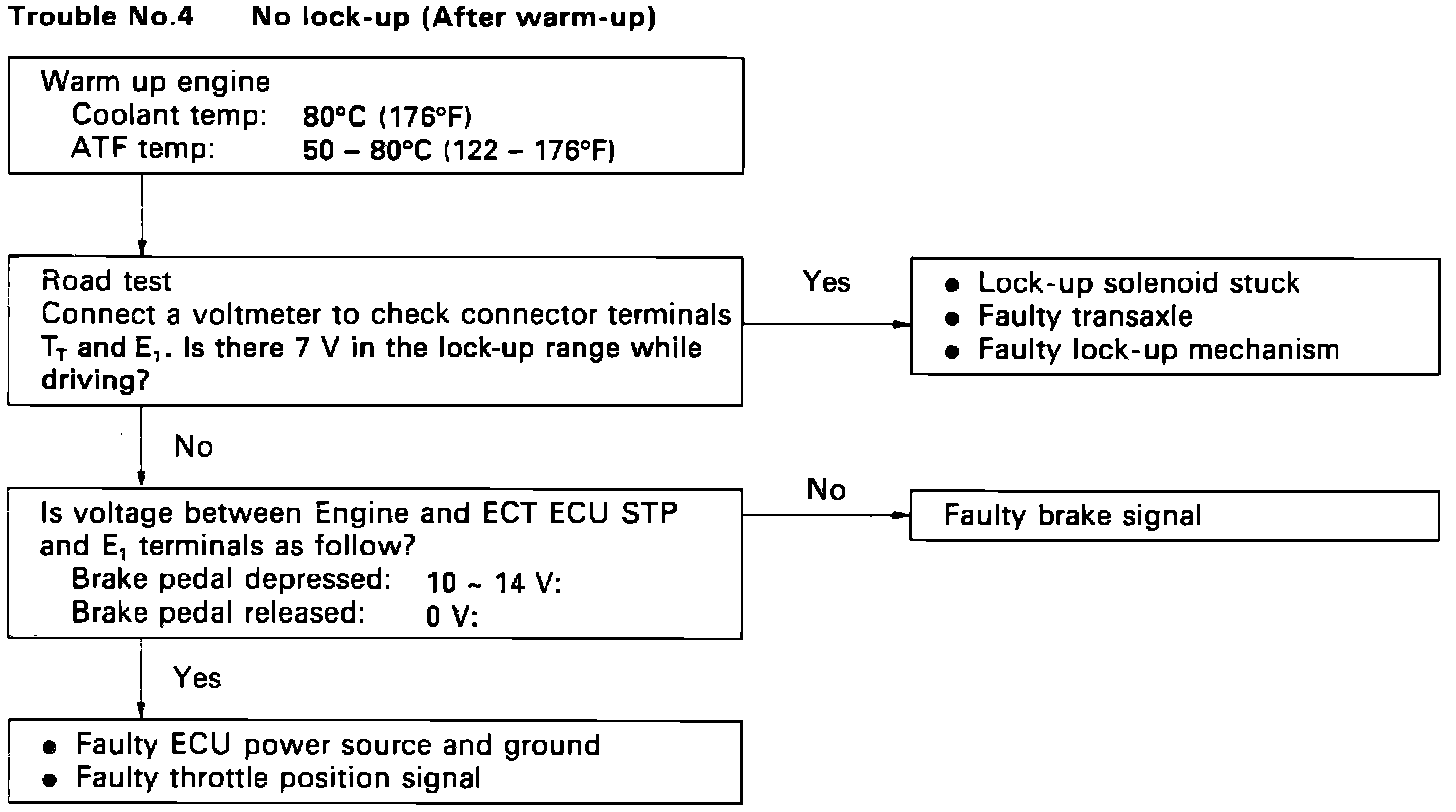

Trouble 4 - No Lock-Up (After Warm-Up)
Trouble 4 - No Lock-Up (After Warm-Up)
Trouble Shooting - No Lock-up After Warm:
