Vehicle Speed Sensor: Locations

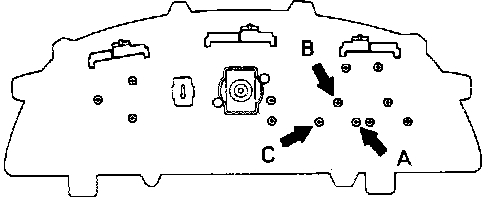

Vehicle Speed Sensor Location:
Mounted on the combination meter circuit board.
