Home >> Toyota >> 1992 >> Celica Convertible L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Diagrams >> Electrical Diagrams >> Automatic Transmission >> Wiring Diagram >> Part 3 of 3

Part 3 of 3

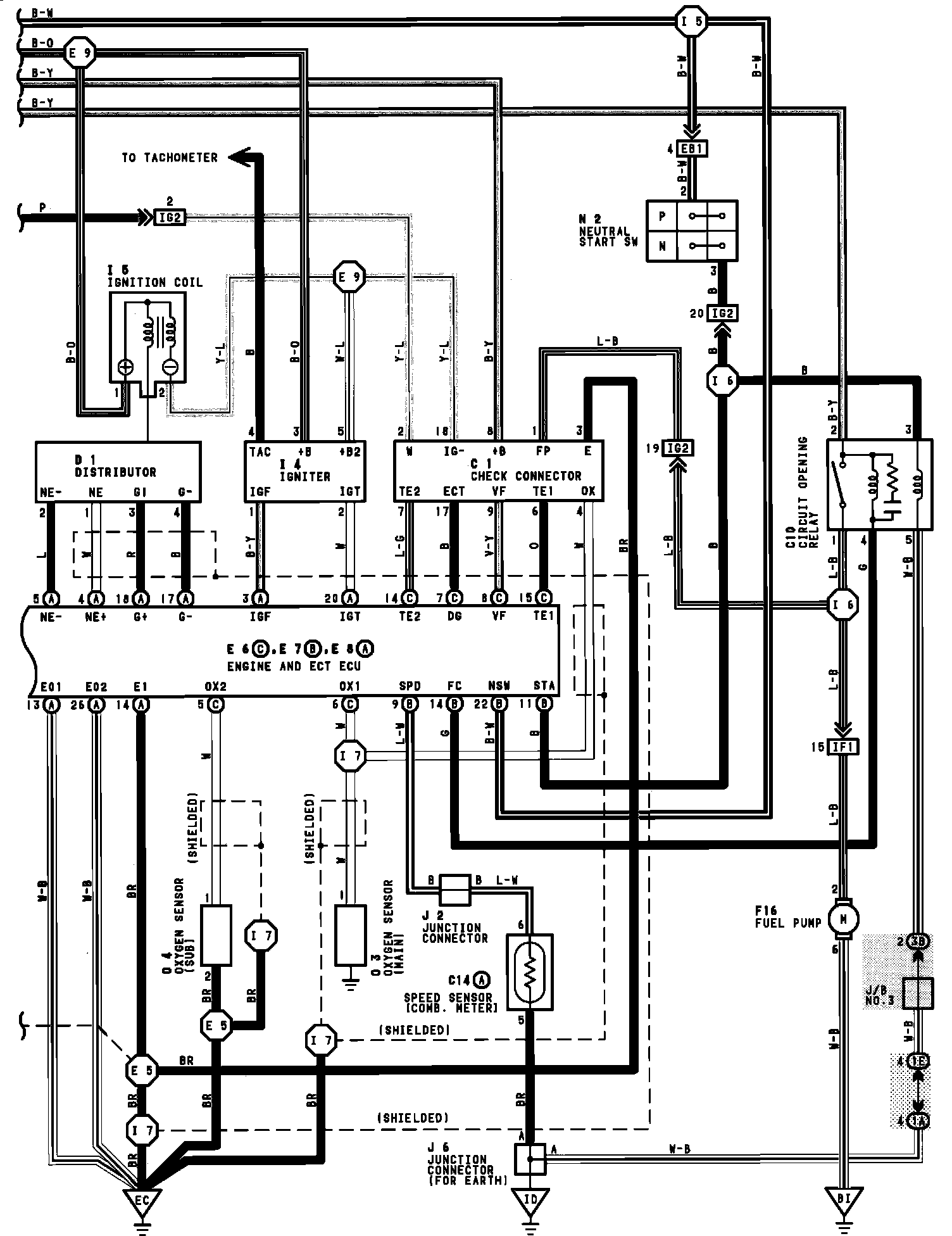

Engine Control:
