Difficult to Start or No Start (Cranks OK)

DIFFICULT TO START OR NO START
(Cranks OK)

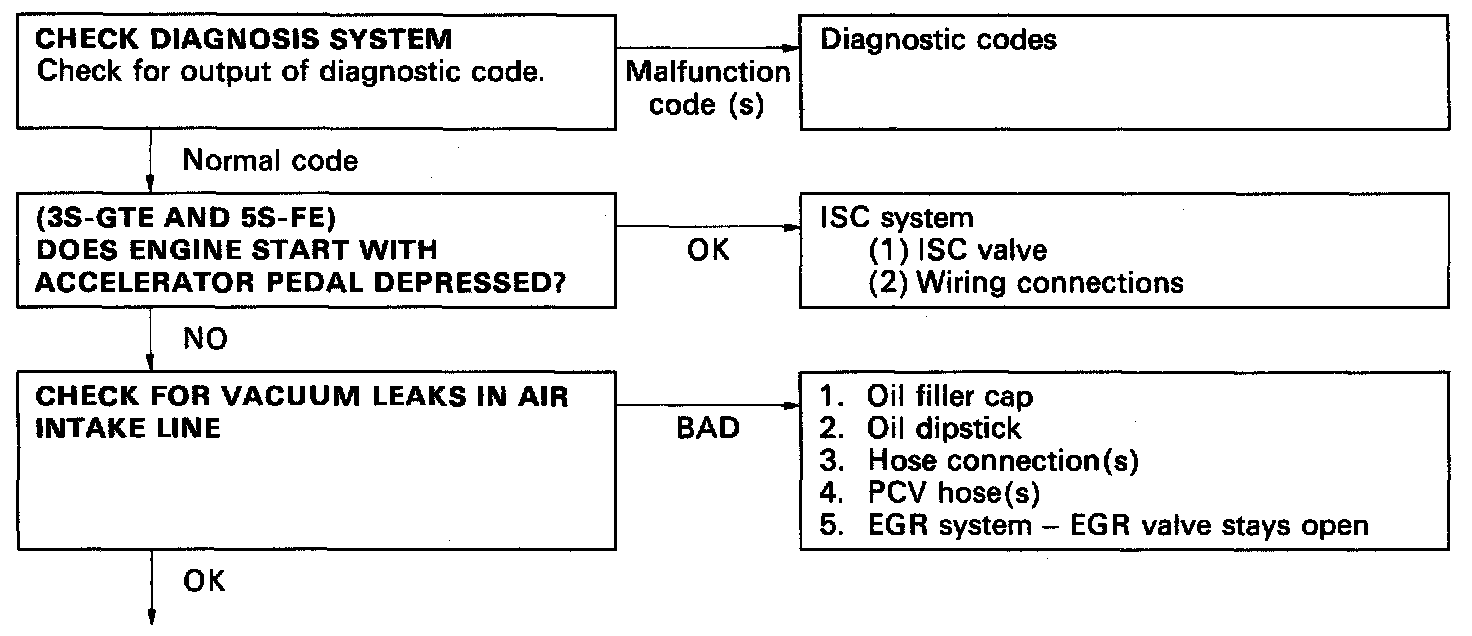

Part 1 Of 3:

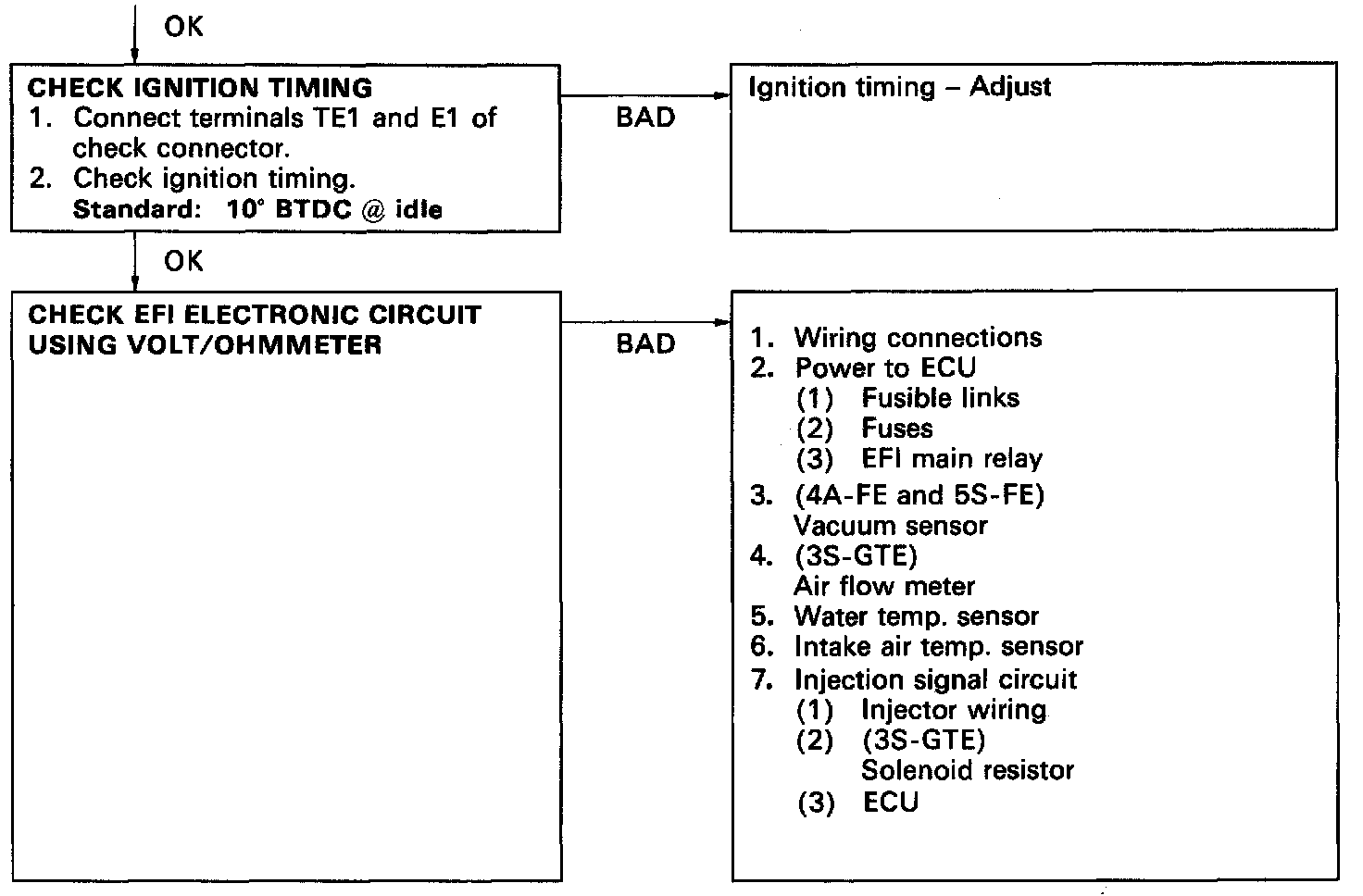

Part 2 Of 2:

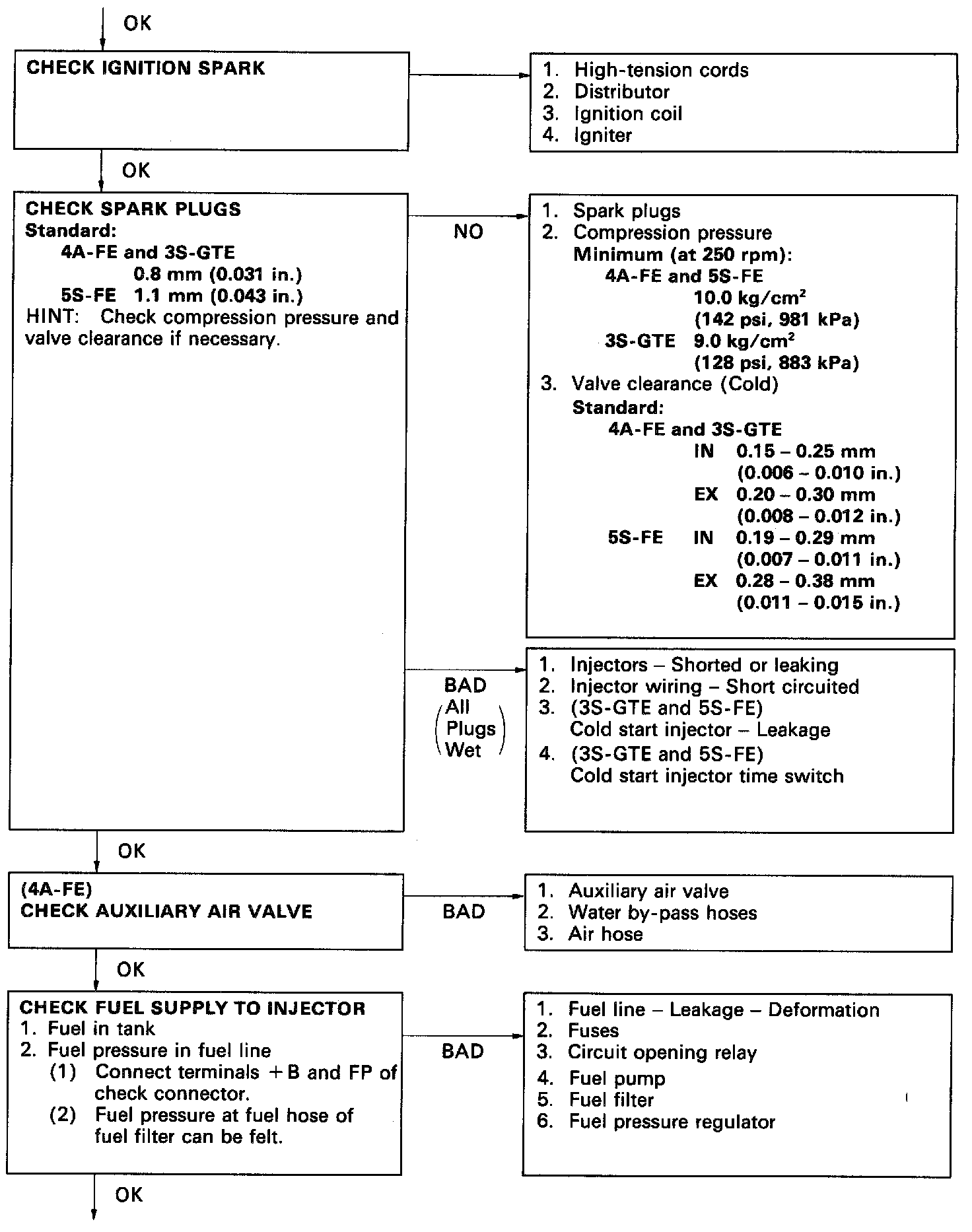

Part 3 Of 3:
