Celica Convertible L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Engine Backfires
>>
Muffler Explosion (Afterfire) - Rich Air Fuel Mixture - Misfire
Muffler Explosion (Afterfire) - Rich Air Fuel Mixture - Misfire
MUFFLE EXPLOSION (After Fire) - Rich Fuel Misfire

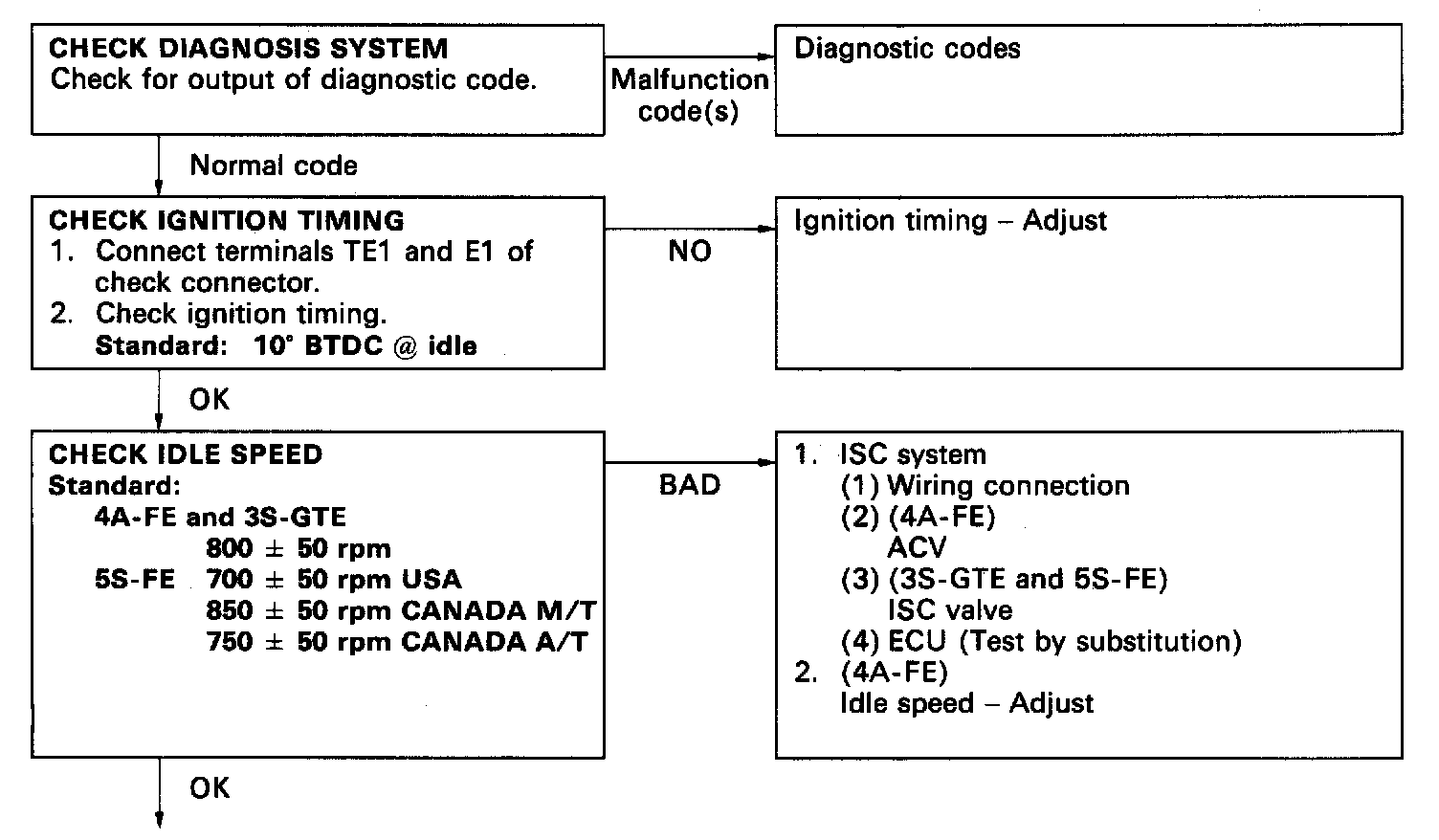

Part 1 Of 2:

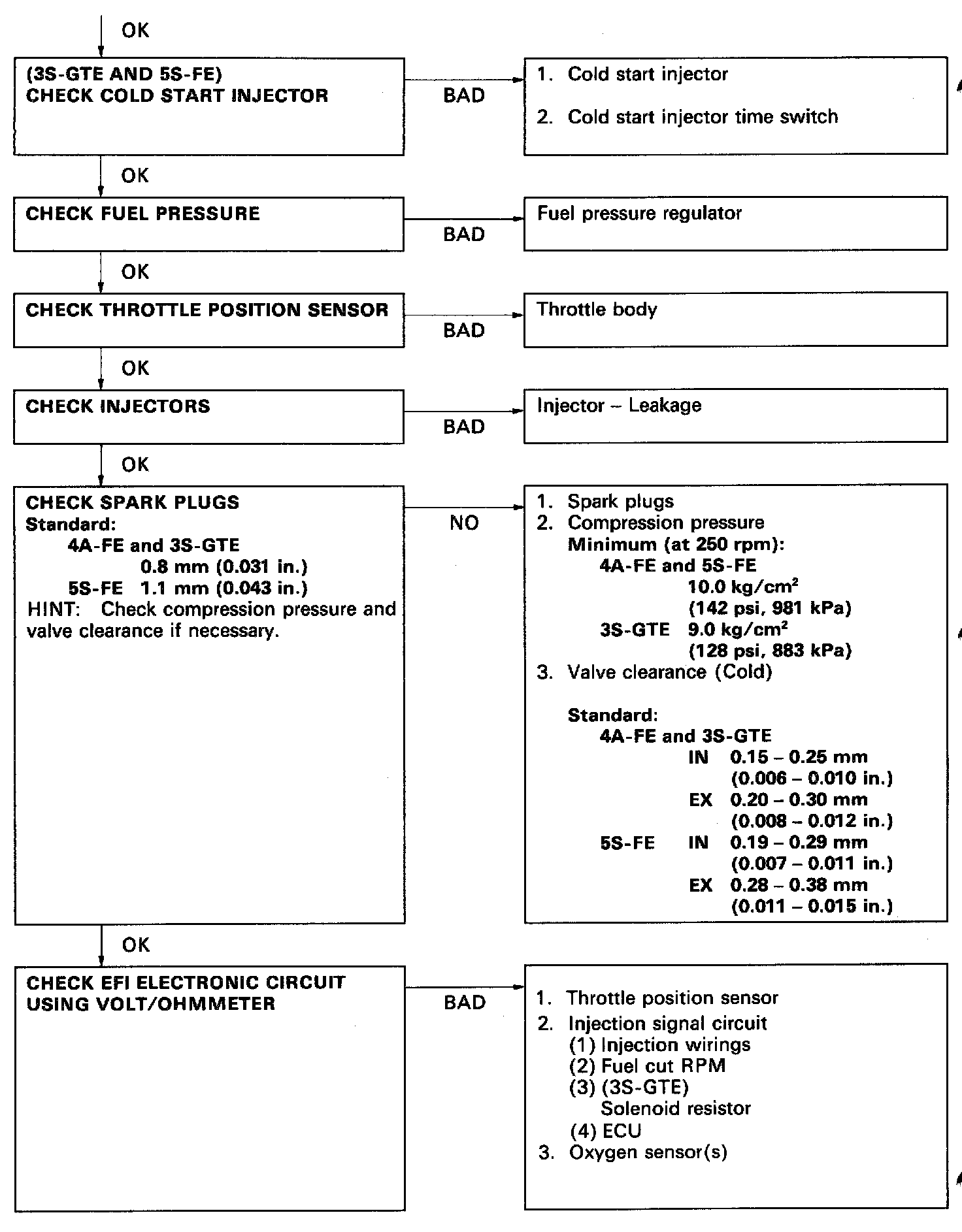

Part 2 Of 2:
