Celica Convertible L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Testing and Inspection
>>
Main Oxygen Sensor Circuit
>>
Manual Transmission
Manual Transmission
Oxygen Sensor Testing:
Diagnostic Chart

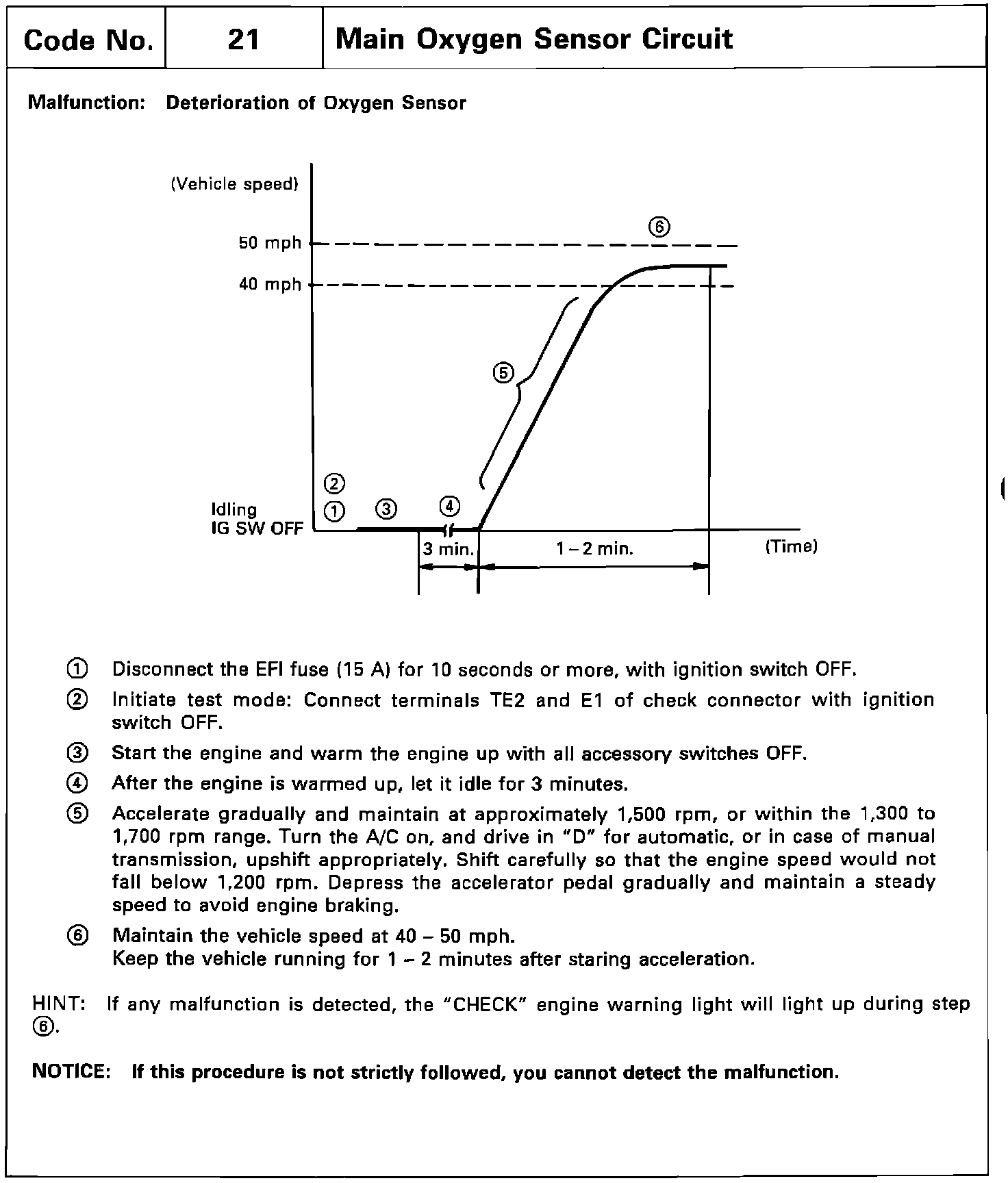

Code 21 - Detection Driving Pattern:
Detection Driving Pattern
