Connector Locations
Connector Locations

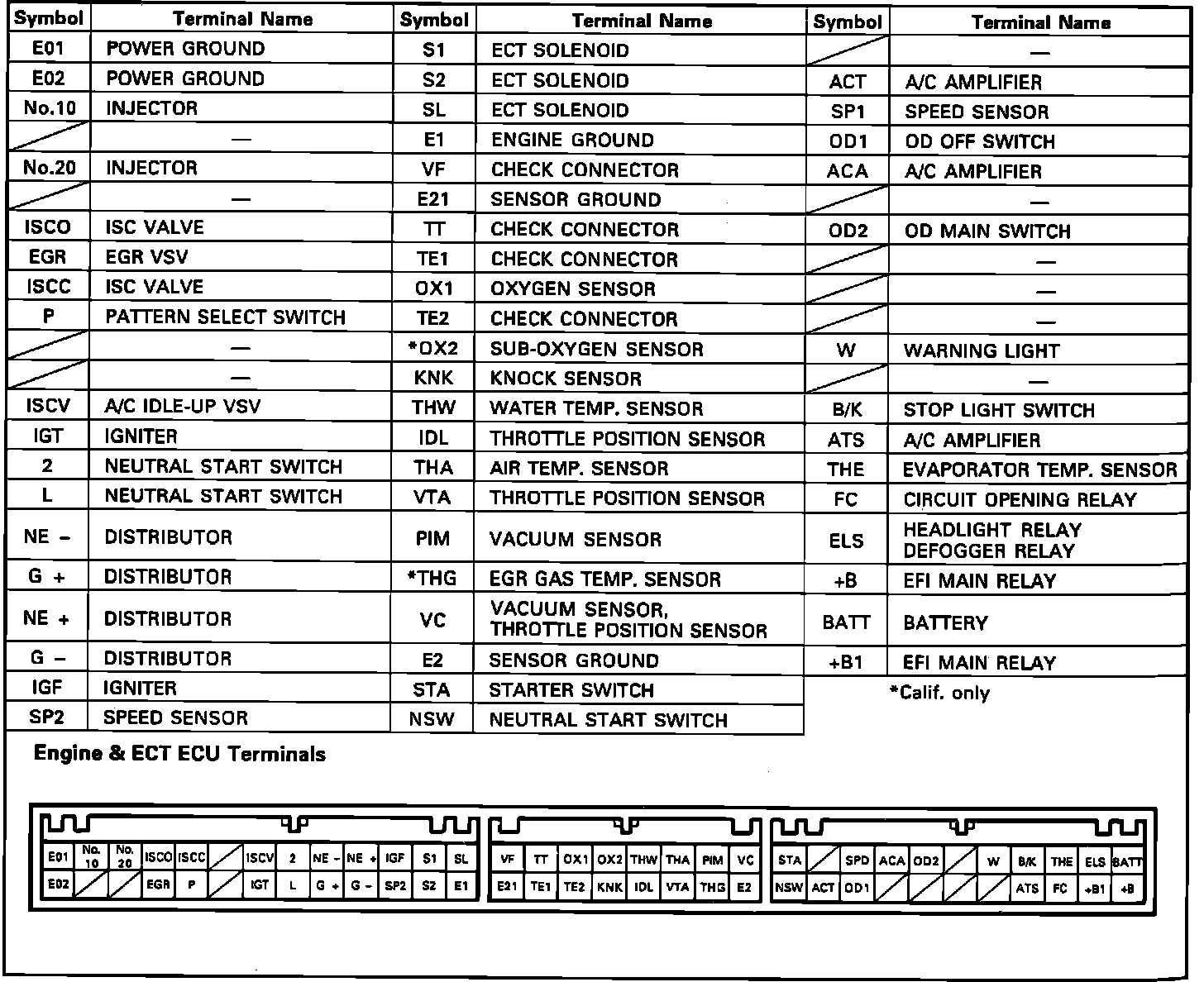

ECU Terminal Pin-Out Identification (w/ECT):
With ECT

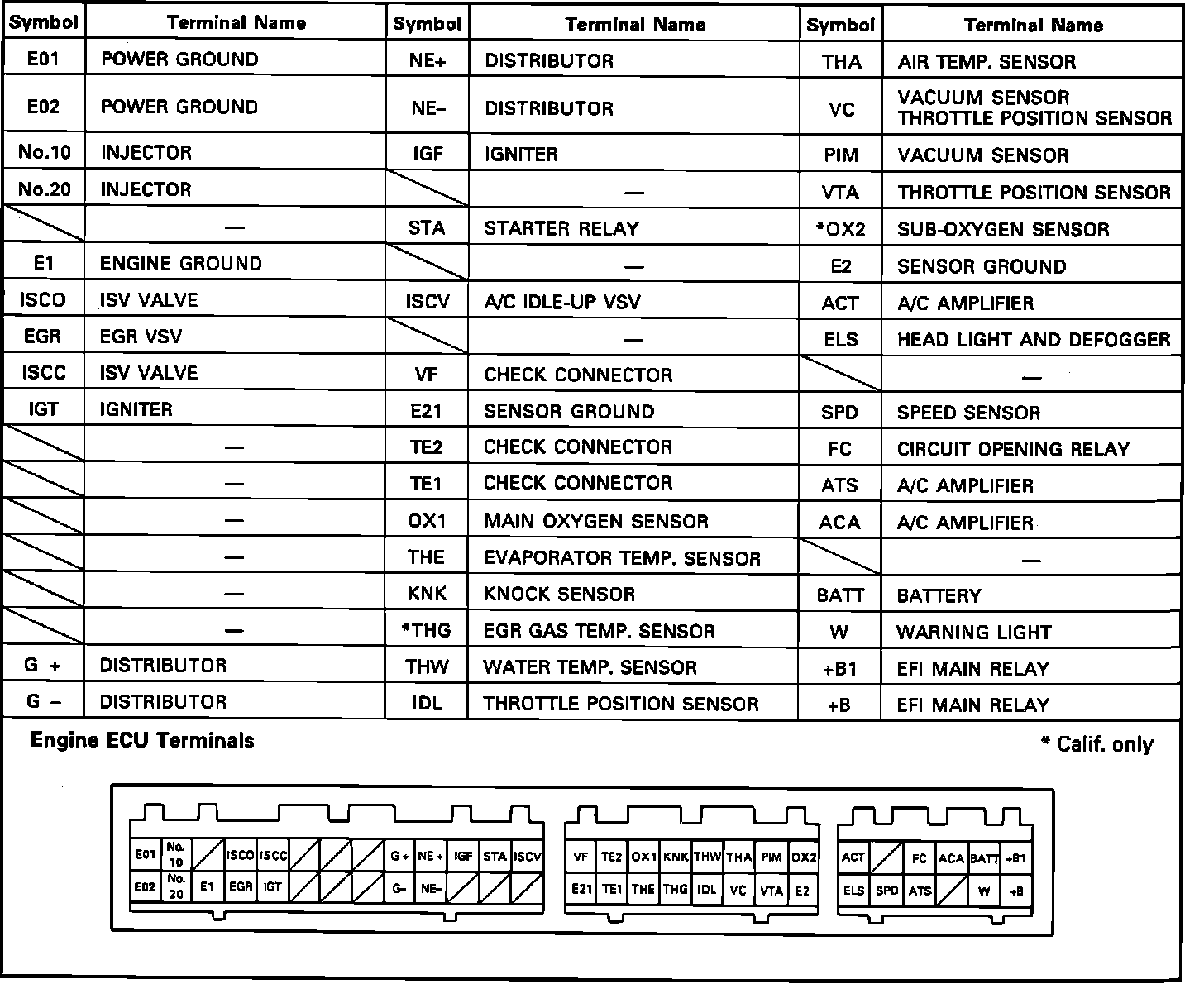

ECU Terminal Pin-Out Identification (w/o ECT):
Without ECT
