Vehicle Ride Height

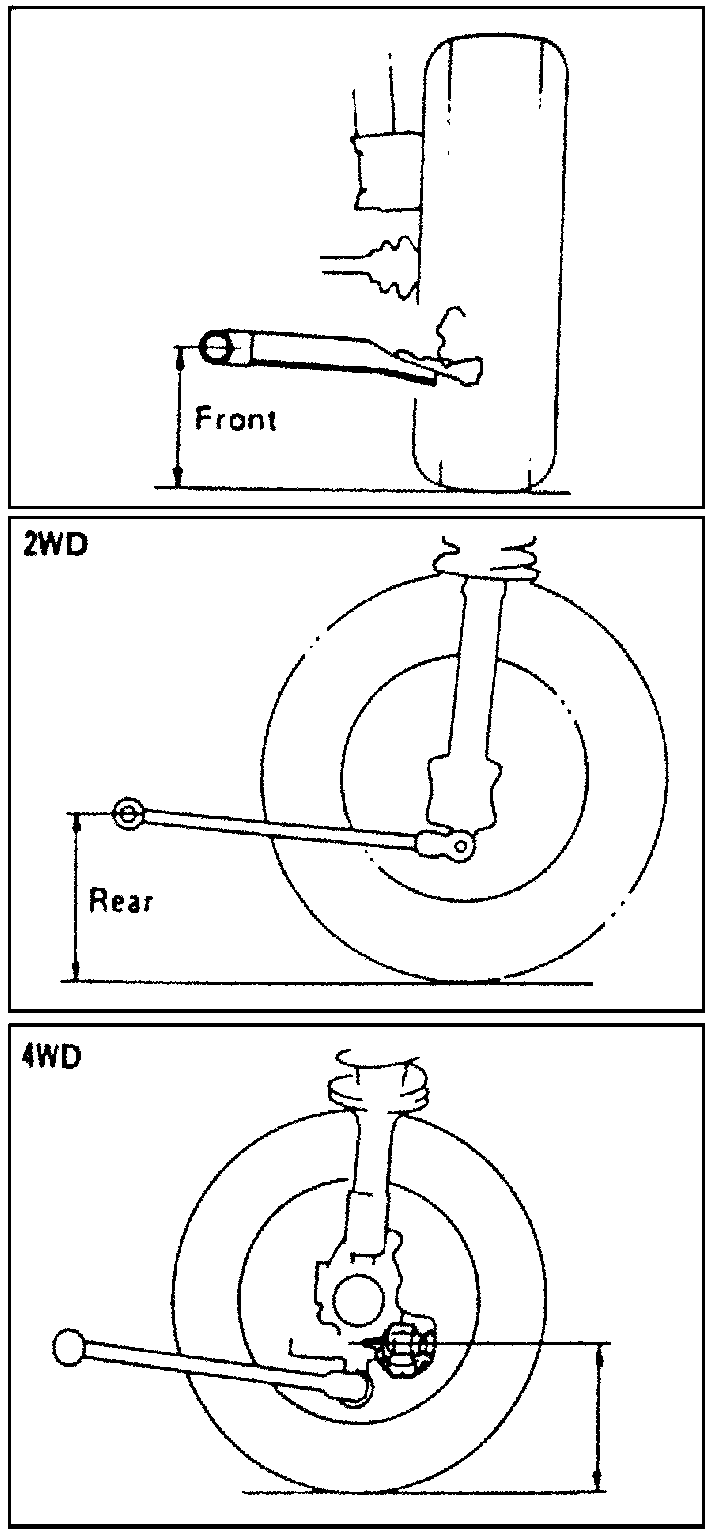

Refer to Figs. 13through 18, for trim height and specifications.Fig. 13 Ride Height Measurement.:

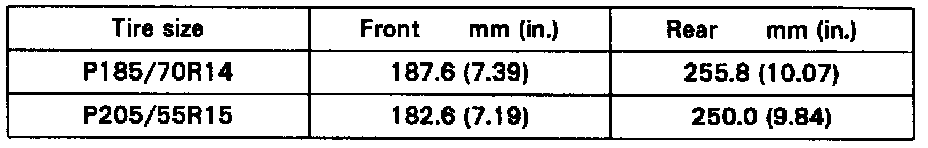

Fig. 14 Ride Height Specifications.:

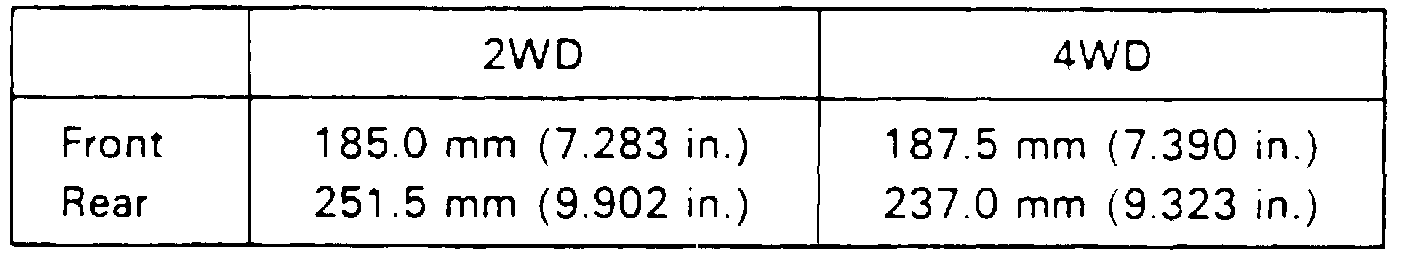

Fig. 15 Ride Height Specifications.:

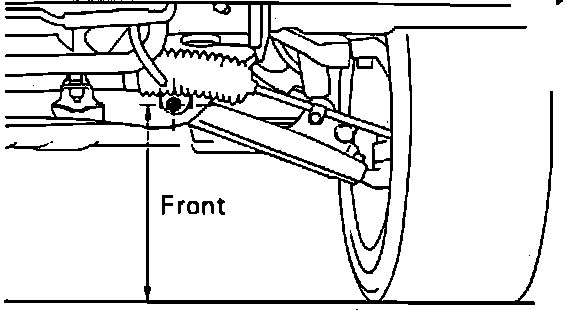

Fig. 7 Front Ride Height Measurement. Supra:

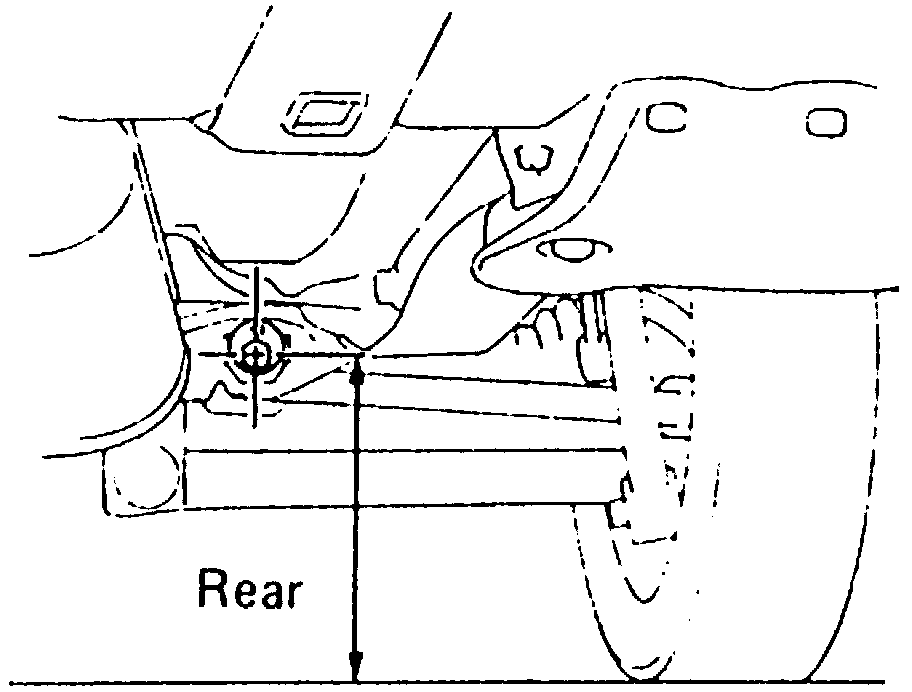

Fig. 17 Rear Ride Height Measurement.:
