Instrument Panel and Center Console

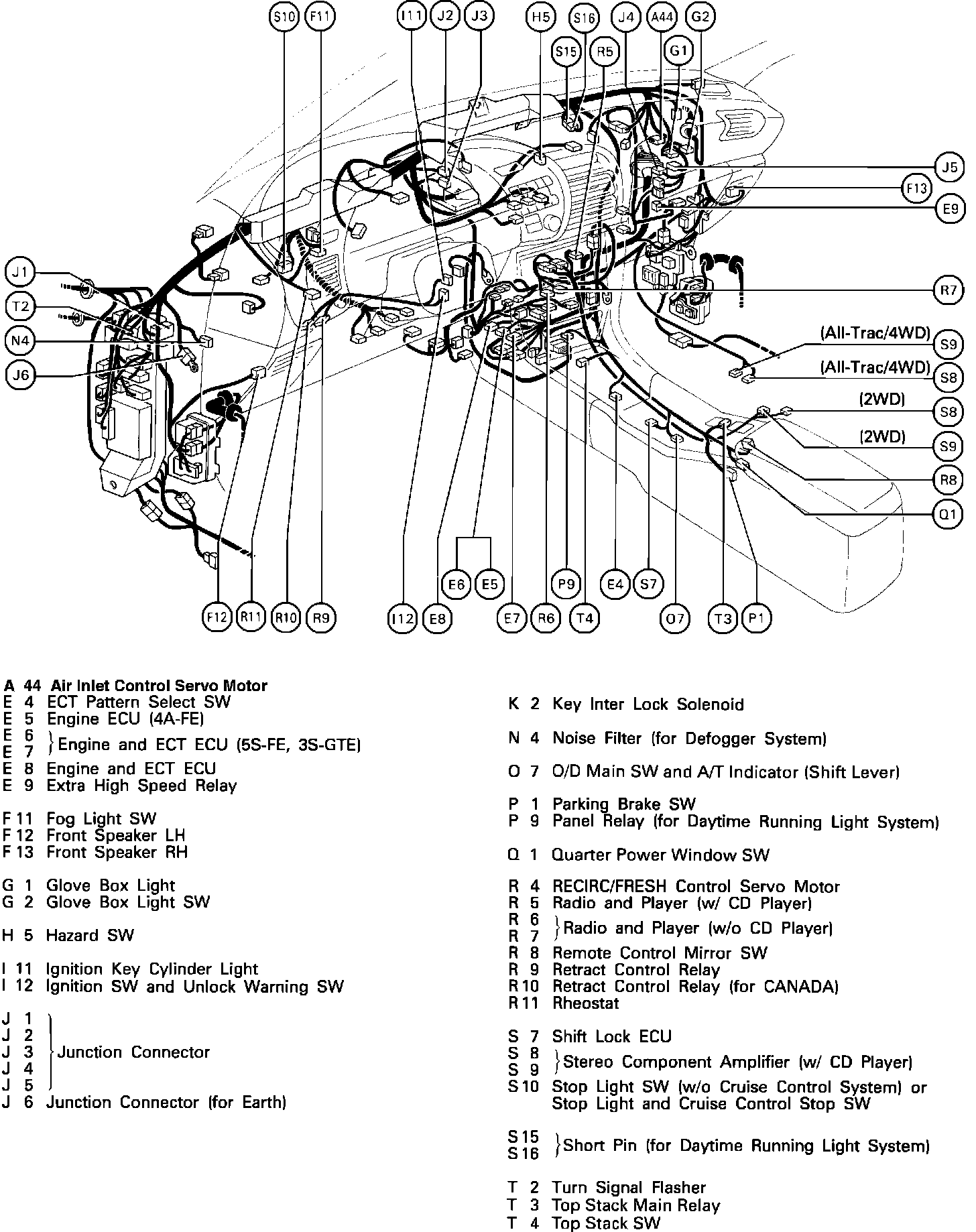

Position Of Parts In Instrument Panel:

A 17 A/C Amplifier
A 18
A 19 A/C Control Assembly
A 20
A 21 A/C Evaporator Temp. Sensor
A 22 A/C Power Transistor
A 23 A/C Room Temp. Sensor
A 24 A/C Solar Sensor
A 25 A/C System Amplifier
A 26 A/C Thermistor
A 27 A/C Water Temp. Sensor
A 28 Airbag Squib
A 29 Air Mix Control Servo Motor
A 30 Air Vent Mode Control Servo Motor
A 31 Ashtray Illumination
A 32
A 33 Auto A/C Amplifier
A 34
A 35 Auto Tilt Away Actuator
A 36 Auto Tilt Away ECU
A 44 Air Inlet Control Servo Motor

B 3 Blower Control Relay
B 4 Blower Motor
B 5 Blower Resistor
B 6

C 7 Center Airbag Sensor Assembly
C 8 Cigarette Lighter
C 9 Cigarette Lighter Illumination
C 10 Circuit Opening Relay
C 11 Clock
C 12 Clutch Start SW
C 13
C 14 Combination Meter
C 15
C 16 Combination SW
C 17
C 18 Cruise Control Clutch SW
C 19 Cruise Control ECU
C 20

D 2 Defogger SW
D 3 Diode (for O/D System)
D 4 Diode (for Cruise Control System)
D 5 Diode (for Key Off)
D 6 Door Lock ECU
D 18 Diode (for Daytime Running Light System)

Position Of Parts In Instrument Panel:

E 4 ECT Pattern Select SW
E 5 Engine ECU (4A-FE)
E 6 Engine and ECT ECU (5S-FE, 3S-GTE)
E 7
E 8 Engine and ECT ECU
E 9 Extra High Speed Relay

F 1 Fog Light SW
F 12 Front Speaker LH
F 13 Front Speaker RH

G 1 Glove Box Light
G 2 Glove Box Light SW

H 5 Hazard SW

I 11 Ignition Key Cylinder Light
I 12 Ignition SW and Unlock Warning SW

J 1
J 2
J 3 Junction Connector
J 4
J 5
J 6 Junction Connector (for Earth)

K 2 Key Inter Lock Solenoid

N 4 Noise Filter (for Defogger System)

0 7 O/D Main SW and A/T Indicator (Shift Lever)

P 1 Parking Brake SW
P 9 Panel Relay (for Daytime Running Light System)

Q 1 Quarter Power Window SW

R 4 RECIRC/FRESH Control Servo Motor
R 5 Radio and Player (w/ CD Player)
R 6
R 7 Radio and Player (w/o CD Player)
R 8 Remote Control Mirror SW
R 9 Retract Control Relay
R 10 Retract Control Relay (for CANADA)
R 11 Rheostat

S 7 Shift Lock ECU
S 8 Stereo Component Amplifier (w/ CD Player)
S 9
S 10 Stop Light SW (w/o Cruise Control System) or Stop
Light and Cruise Control Stop SW
S 15 Short Pin (for Daytime Running Light System)
S 16

T 2 Turn Signal Flasher
T 3 Top Stack Main Relay
T 4 Top Stack SW
