Engine Compartment

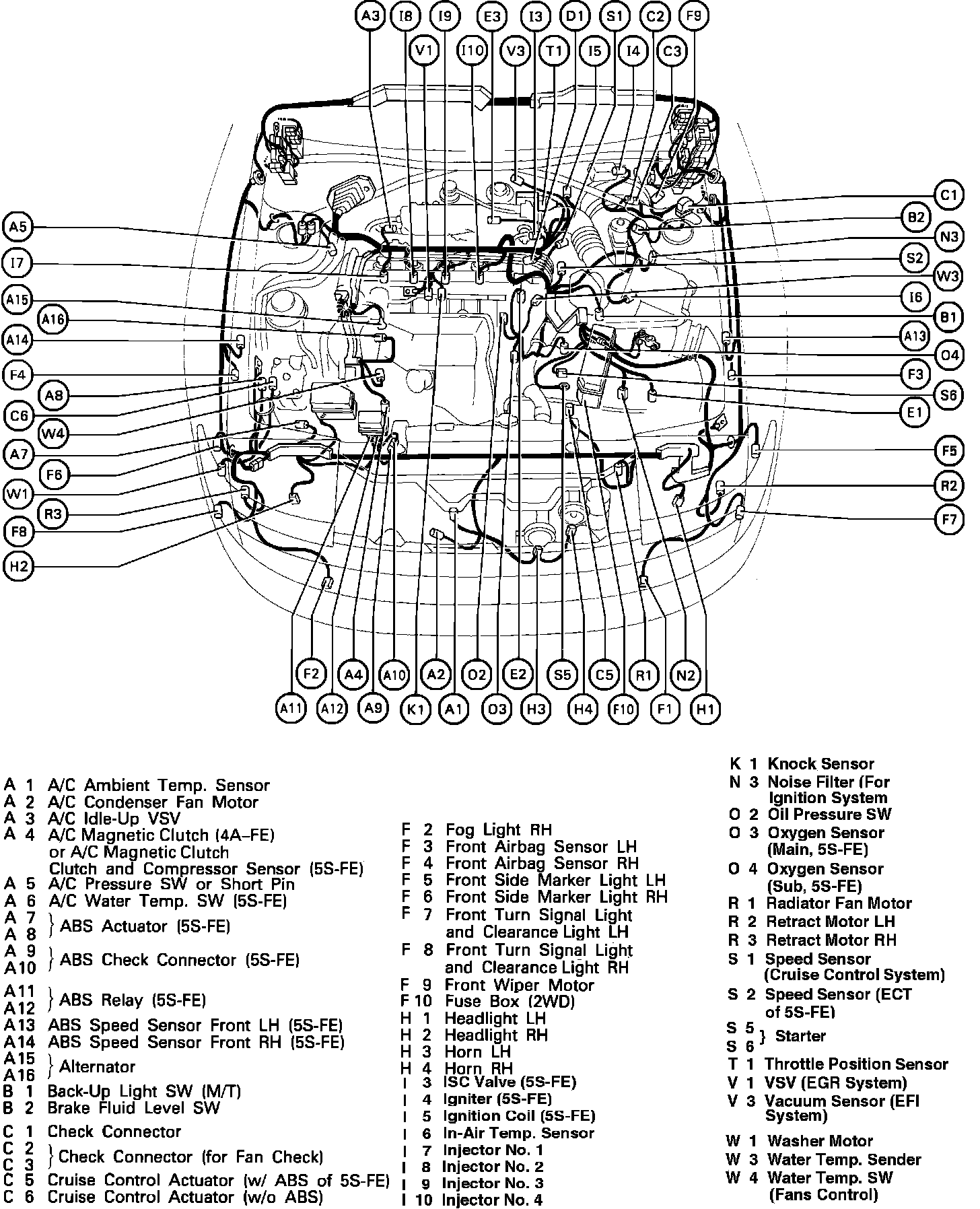

Position Of Parts In Engine Compartment:

A 1 A/C Ambient Temp. Sensor
A 2 A/C Condenser Fan Motor
A 3 A/C Idle-Up VSV
A 4 A/C Magnetic Clutch (4A-FE) or A/C Magnetic Clutch
Clutch and Compressor Sensor (5S-FE)
A 5 A/C Pressure SW or Short Pin
A 6 A/C Water Temp. SW (5S-FE)
A 7 ABS Actuator (5S-FE)
A 8
A 9 ABS Check Connector (5S-FE)
A 10
A 11 ABS Relay (5S-FE)
A 12
A 13 ABS Speed Sensor Front LH (5S-FE)
A 14 ABS Speed Sensor Front RH (5S-FE)
A 15 Alternator
A 16

B 1 Back-Up Light SW (M/T)
B 2 Brake Fluid Level SW

C 1 Check Connector
C 2 Check Connector (for Fan Check)
C 3
C 5 Cruise Control Actuator (w/ ABS of 5S-FE)
C 6 Cruise Control Actuator (w/o ABS)

D 1 Distributor (5S-FE)

E 1 ECT Solenoid (5S-FE)
E 2 EFI Water Temp. Sensor
E 3 EGR Gas Temp. Sensor (for California)

F 1 Fog Light LH
F 2 Fog Light RH
F 3 Front Airbag Sensor LH
F 4 Front Airbag Sensor RH
F 5 Front Side Marker Light LH
F 6 Front Side Marker Light RH
F 7 Front Turn Signal Light and Clearance Light LH
F 8 Front Turn Signal Light and Clearance Light RH
F 9 Front Wiper Motor
F 10 Fuse Box (2WD)

H 1 Headlight LH
H 2 Headlight RH
H 3 Horn LH
H 4 Horn RH

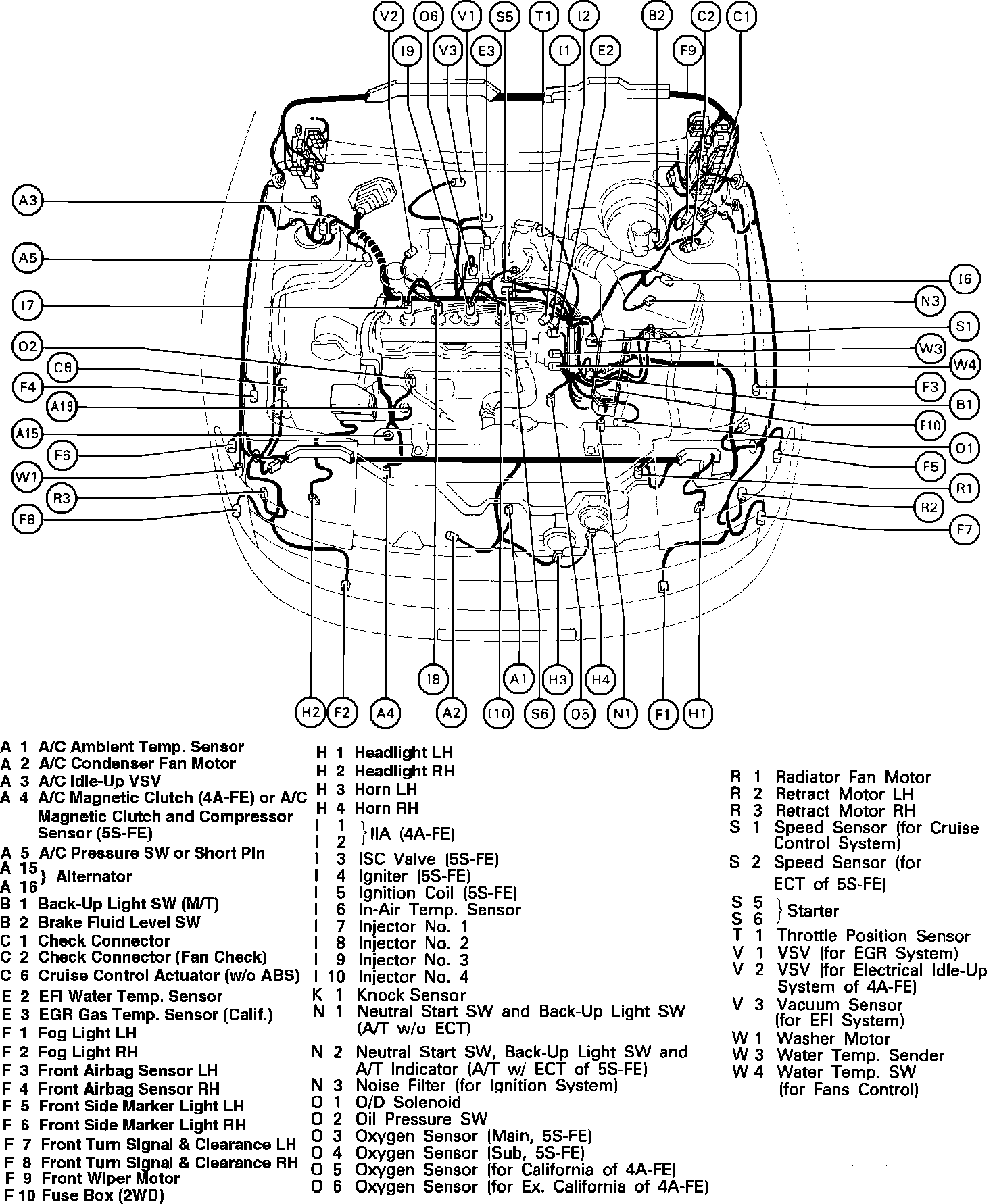

Position Of Parts In Engine Compartment:

I 1
I 2 IIA (4A-FE)
I 3 ISC Valve (5S-FE)
I 4 Igniter (5S-FE)
I 5 Ignition Coil (5S-FE)
I 6 In-Air Temp. Sensor
I 7 Injector No. 1
I 8 Injector No. 2
I 9 Injector No. 3
I 10 Injector No. 4

K 1 Knock Sensor

N 1 Neutral Start SW and Back-Up Light SW (A/T w/o
ECT)
N 2 Neutral Start SW, Back-Up Light SW and A/T Indicator
(A/T w/ ECT of 5S-FE)
N 3 Noise Filter (for Ignition System)

O 1 O/D Solenoid
O 2 Oil Pressure SW
O 3 Oxygen Sensor (Main, 5S-FE)
O 4 Oxygen Sensor (Sub, 5S-FE)
O 5 Oxygen Sensor (for California of 4A-FE)
O 6 Oxygen Sensor (for Ex. California of 4A-FE)

R 1 Radiator Fan Motor
R 2 Retract Motor LH
R 3 Retract Motor RH

S 1 Speed Sensor (for Cruise Control System)
S 2 Speed Sensor (for ECT of 5S-FE)
S 5 Starter
S 6

T 1 Throttle Position Sensor

V 1 VSV (for EGR System)
V 2 VSV (for Electrical Idle-Up System of 4A-FE)
V 3 Vacuum Sensor (for EFI System)

W 1 Washer Motor
W 3 Water Temp. Sender
W 4 Water Temp. SW (for Fans Control)
