Coupe

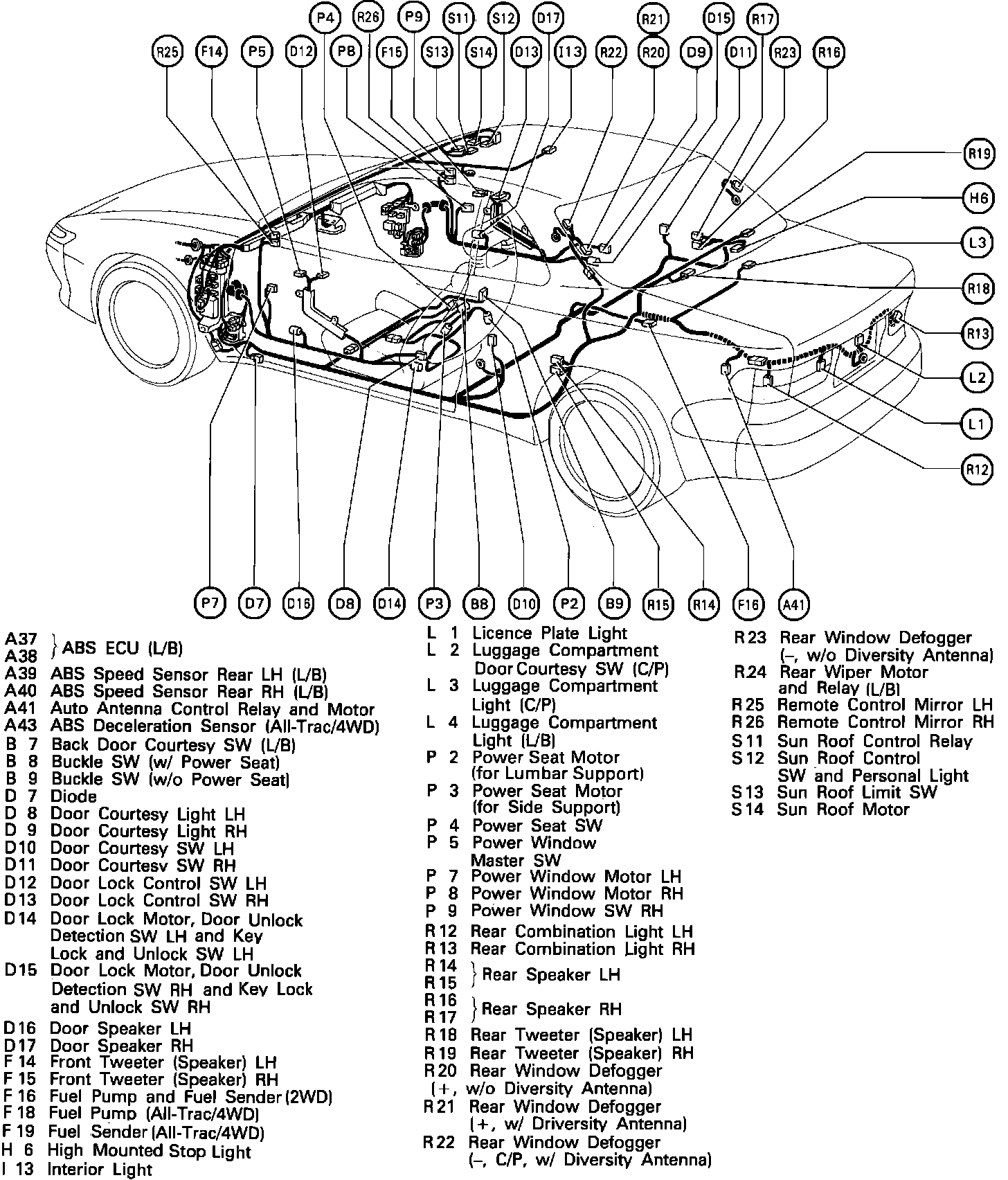

Position Of Parts In Body:

A 37 ABS ECU
A 38
A 39 ABS Speed Sensor Rear LH
A 40 ABS Speed Sensor Rear RH
A 41 Auto Antenna Control Relay and Motor

B 7 Back Door Courtesy SW (L/B)
B 8 Buckle SW (w/ Power Seat)
B 9 Buckle SW LH (w/o Power Seat)
B 10 Buckle SW RH (w/o Power Seat)

D 7 Diode
D 8 Door Courtesy Light LH
D 9 Door Courtesy Light RH
D 10 Door Courtesy SW LH
D 11 Door Courtesy SW RH
D 12 Door Lock Control SW LH
D 13 Door Lock Control SW RH
D 14 Door Lock Motor, Door Unlock Detection SW LH and Key
Lock and Unlock SW LH
D 15 Door Lock Motor, Door Unlock Detection SW RH and
Key Lock and Unlock SW RH
D 16 Door Speaker LH
D 17 Door Speaker RH

F 14 Front Tweeter (Speaker) LH
F 15 Front Tweeter (Speaker) RH
F 16 Fuel Pump and Fuel Sender

H 6 High Mount Stop Light

I 13 Interior Light



L 1 Licence Plate Light
L 2 Luggage Compartment Door Courtesy SW (C/P)
L 3 Luggage Compartment Light (C/P)
L 4 Luggage Compartment Light (L/B)

P 2 Power Seat Motor (for Lumbar Support)
P 3 Power Seat Motor (for Side Support)
P 4 Power Seat SW
P 5 Power Window Master SW
P 7 Power Window Motor LH
P 8 Power Window Motor RH
P 9 Power Window SW RH

R 12 Rear Combination Light LH
R 13 Rear Combination Light RH
R 14 Rear Speaker LH
R 15
R 16 Rear Speaker RH
R 17
R 18 Rear Tweeter (Speaker) LH
R 19 Rear Tweeter (Speaker) RH
R 20 Rear Window Defogger (+, w/o Diversity Antenna)
R 21 Rear Window Defogger (+, w/ Diversity Antenna)
R 22 Rear Window Defogger (-, C/P, w/ Diversity Antenna)
R 23 Rear Window Defogger (-, w/o Diversity Antenna)
R 24 Rear Wiper Motor and Relay (L/B)
R 25 Remote Control Mirror LH
R 26 Remote Control Mirror RH

S 11 Sun Roof Control Relay
S 12 Sun Roof Control SW and Personal Light
S 13 Sun Roof Limit SW
S 14 Sun Roof Motor
