Convertible

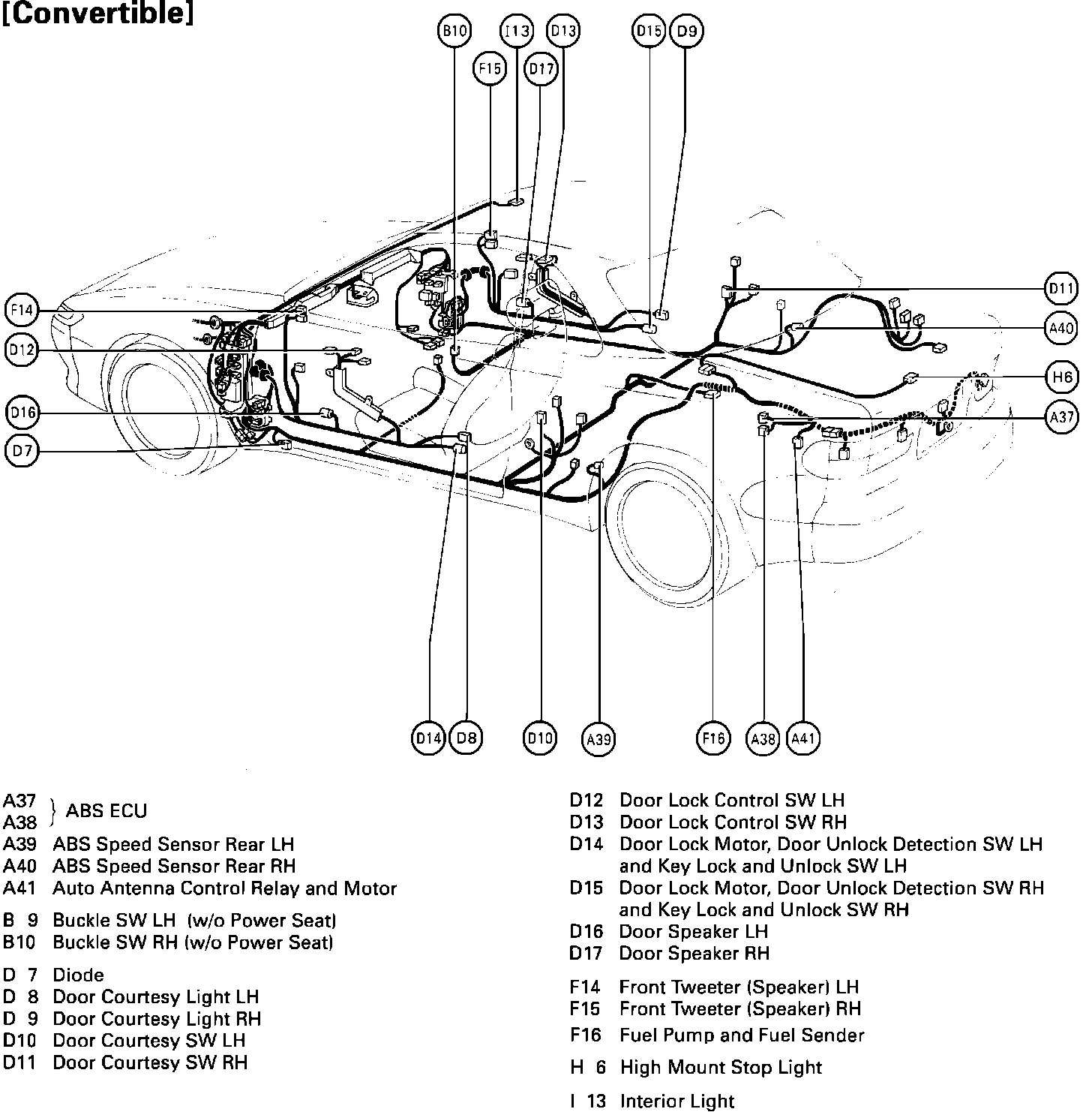

Position Of Parts In Body - Convertible:

A 37 ABS ECU
A 38
A 39 ABS Speed Sensor Rear LH
A 40 ABS Speed Sensor Rear RH
A 41 Auto Antenna Control Relay and Motor

B 9 Buckle SW LH (w/o Power Seat)
B 10 Buckle SW RH (w/o Power Seat)

D 7 Diode
D 8 Door Courtesy Light LH
D 9 Door Courtesy Light RH
D 10 Door Courtesy SW LH
D 11 Door Courtesy SW RH
D 12 Door Lock Control SW LH
D 13 Door Lock Control SW RH
D 14 Door Lock Motor, Door Unlock Detection SW LH and Key
Lock and Unlock SW LH
D 15 Door Lock Motor, Door Unlock Detection SW RH and
Key Lock and Unlock SW RH
D 16 Door Speaker LH
D 17 Door Speaker RH

F 14 Front Tweeter (Speaker) LH
F 15 Front Tweeter (Speaker) RH
F 16 Fuel Pump and Fuel Sender

H 6 High Mount Stop Light

I 13 Interior Light

Position Of Parts In Body - Convertible:

L 1 Licence Plate Light
L 2 Luggage Compartment Door Courtesy SW
L 3 Luggage Compartment Light
P 5 Power Window Master SW
P 6 Power Window Master SW
P 7 Power Window Motor LH
P 8 Power Window Motor RH
P 9 Power Window SW RH

Q 2 Quarter Power Window Motor LH
Q 3 Quarter Power Window Motor RH

R 12 Rear Combination Light LH
R 13 Rear Combination Light RH
R 14 Rear Speaker LH
R 16 Rear Speaker RH
R 25 Remote Control Mirror LH
R 26 Remote Control Mirror RH

S 15 Seat Belt Solenoid (Driver's)
S 16 Seat Belt Solenoid (Passenger's)

T 5 Top Stack Motor
T 6 Top Stack Relay
T 7
