Hazard Warning Flasher: Locations

Celica hazard switch is wired through the turn signal flasher.

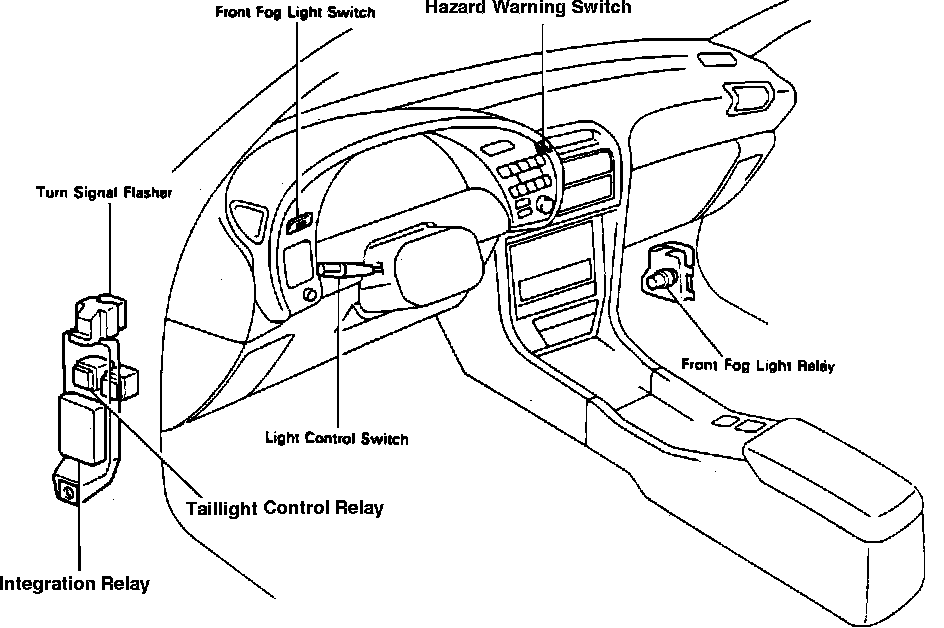

Instrument Panel Switch Locations:






LH Side kick Panel
