Main Heater Relay

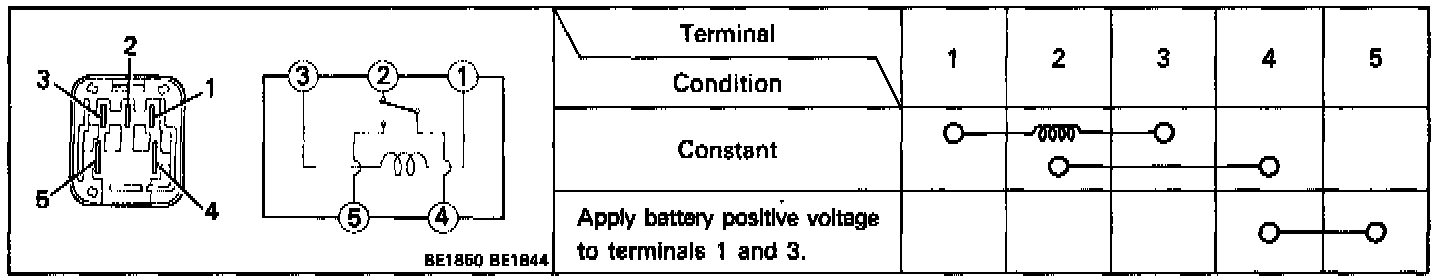

Inspect heater main relay continuity.
If continuity is not as specified, replace the relay.
