Home >> Toyota >> 1992 >> Celica Convertible L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Exhaust System >> Catalytic Converter >> Locations >> Federal and Canadian Models

Federal and Canadian Models

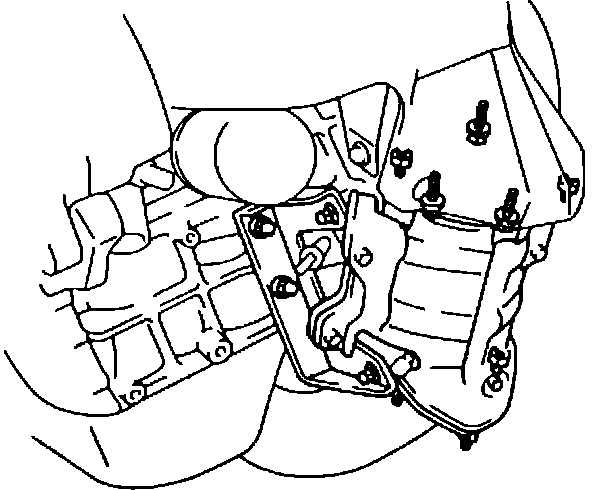

Main Three-way Catalyst:






Mounted to the exhaust manifold, front, LH side of engine
