Service Specifications

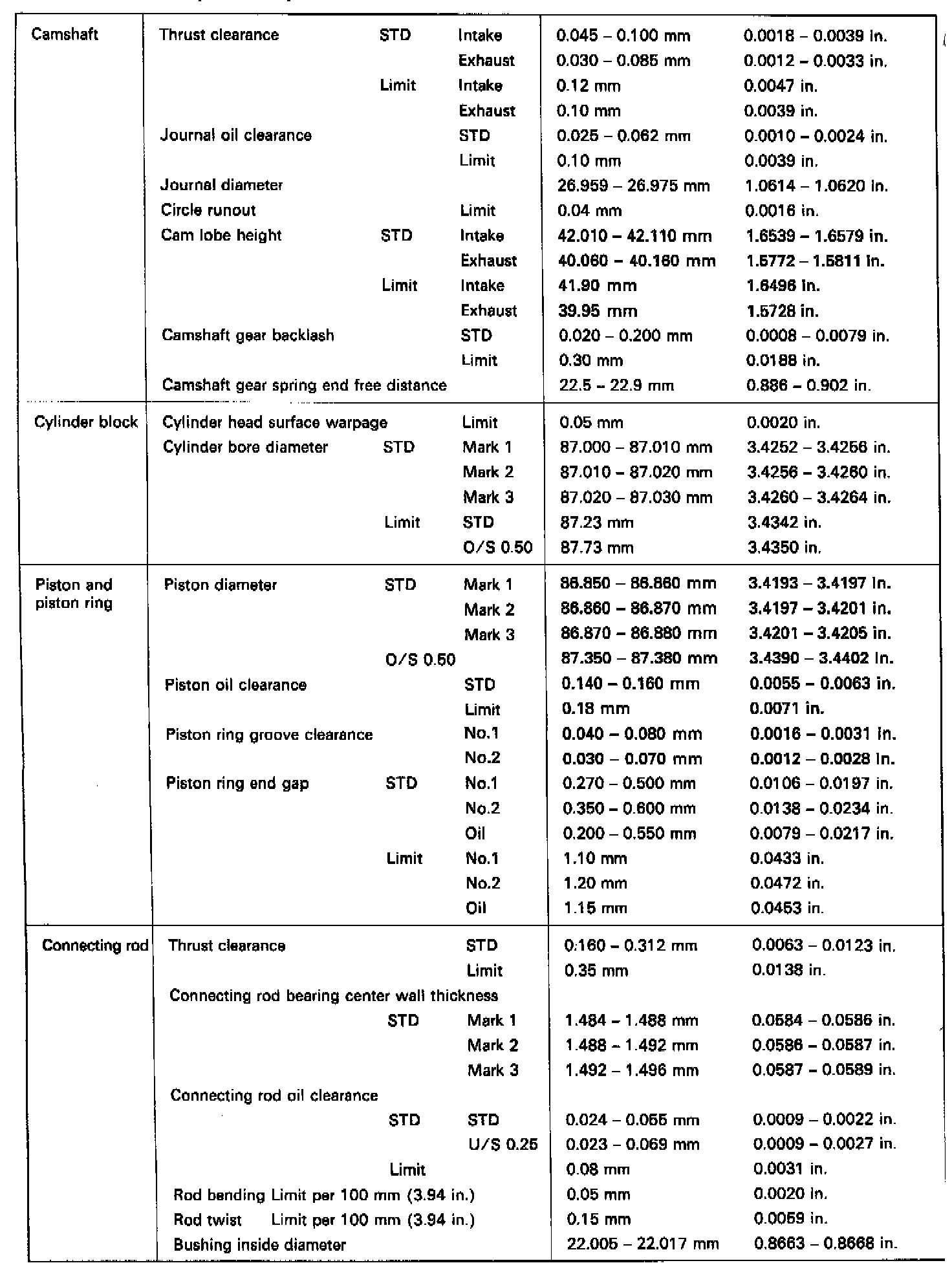

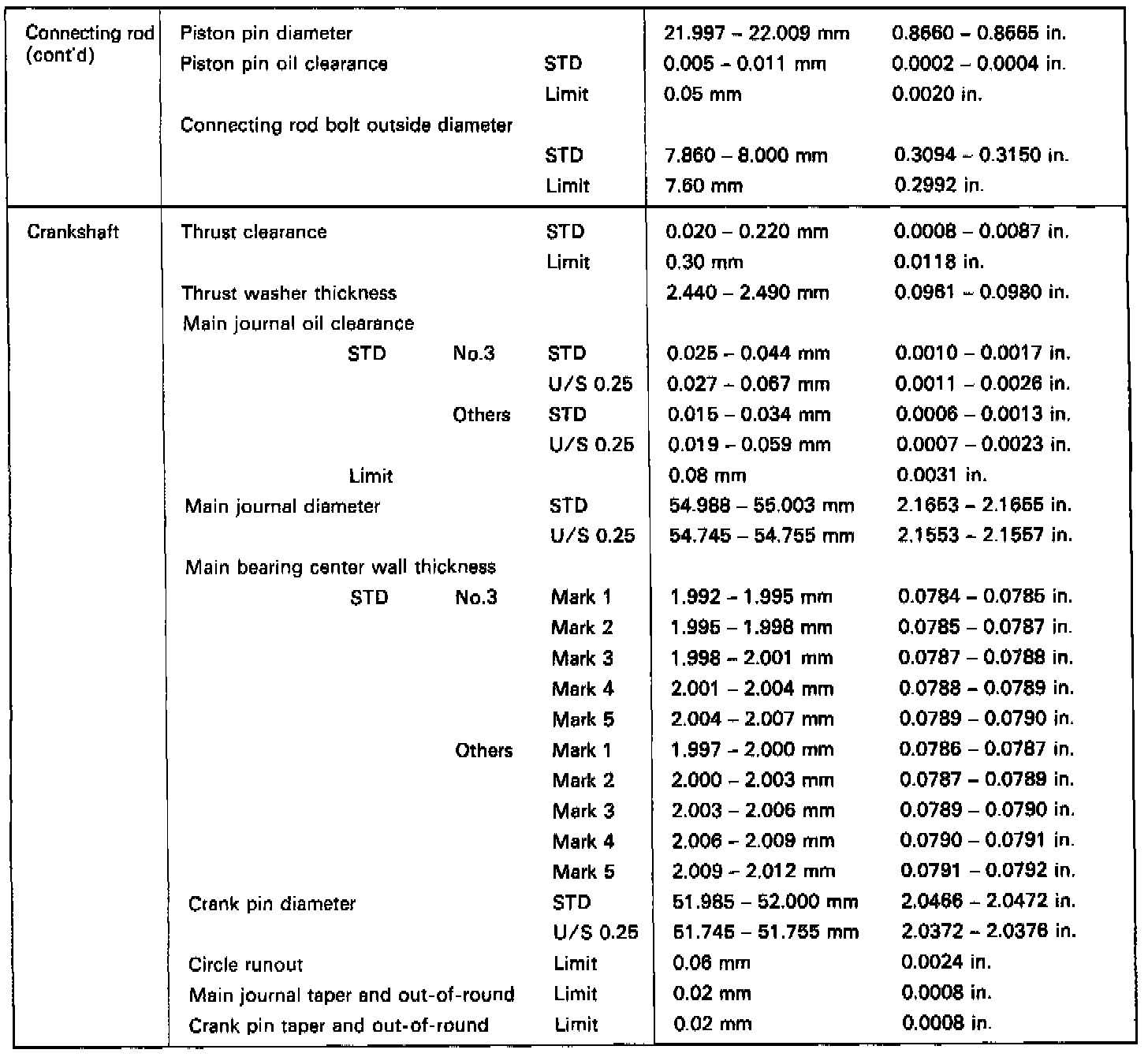

5S-FE Mechanical Specifications (1 Of 3):

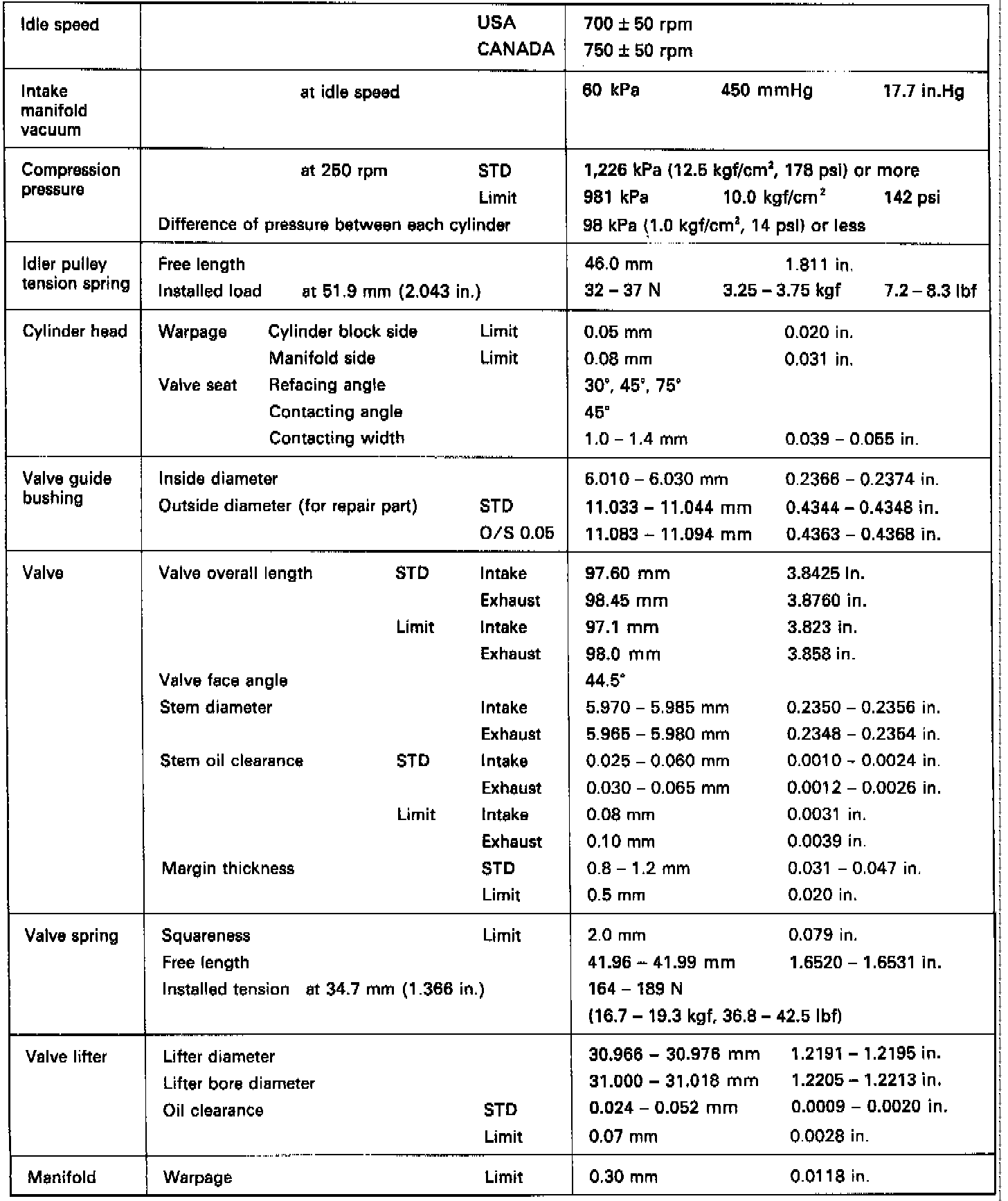

5S-FE Mechanical Specifications (3 Of 3):





Mechanical Specifications
