Celica Convertible L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Engine Lubrication
>>
Oil Cooler
>>
Service and Repair
>>
Inspection
Inspection
1.

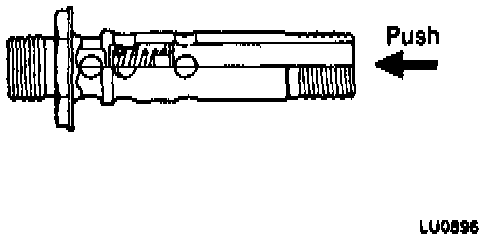

Inspect relief valve. Push the valve with a wooden stick to check if it is stuck. If stuck, replace the relief valve.
2.

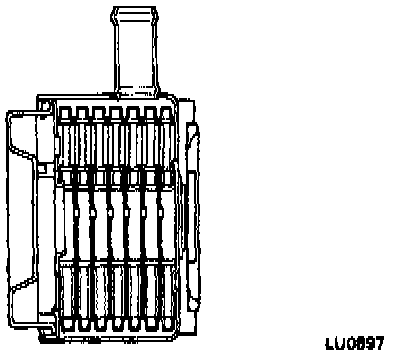

Inspect oil cooler for damage or clogging. If necessary, replace the oil cooler.
