Radiator Cooling Fan Motor: Testing and Inspection

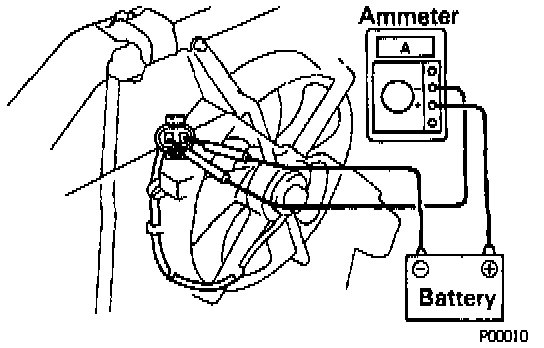

1. Connect battery and ammeter to the cooling fan connector.
2. Check that the cooling fan rotates smoothly, and check the reading on the ammeter.
Standard amperage: 5.8-7.4 Amperes
