Home >> Toyota >> 1992 >> Celica Convertible L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Diagrams >> Electrical Diagrams >> With Auto A/C

With Auto A/C

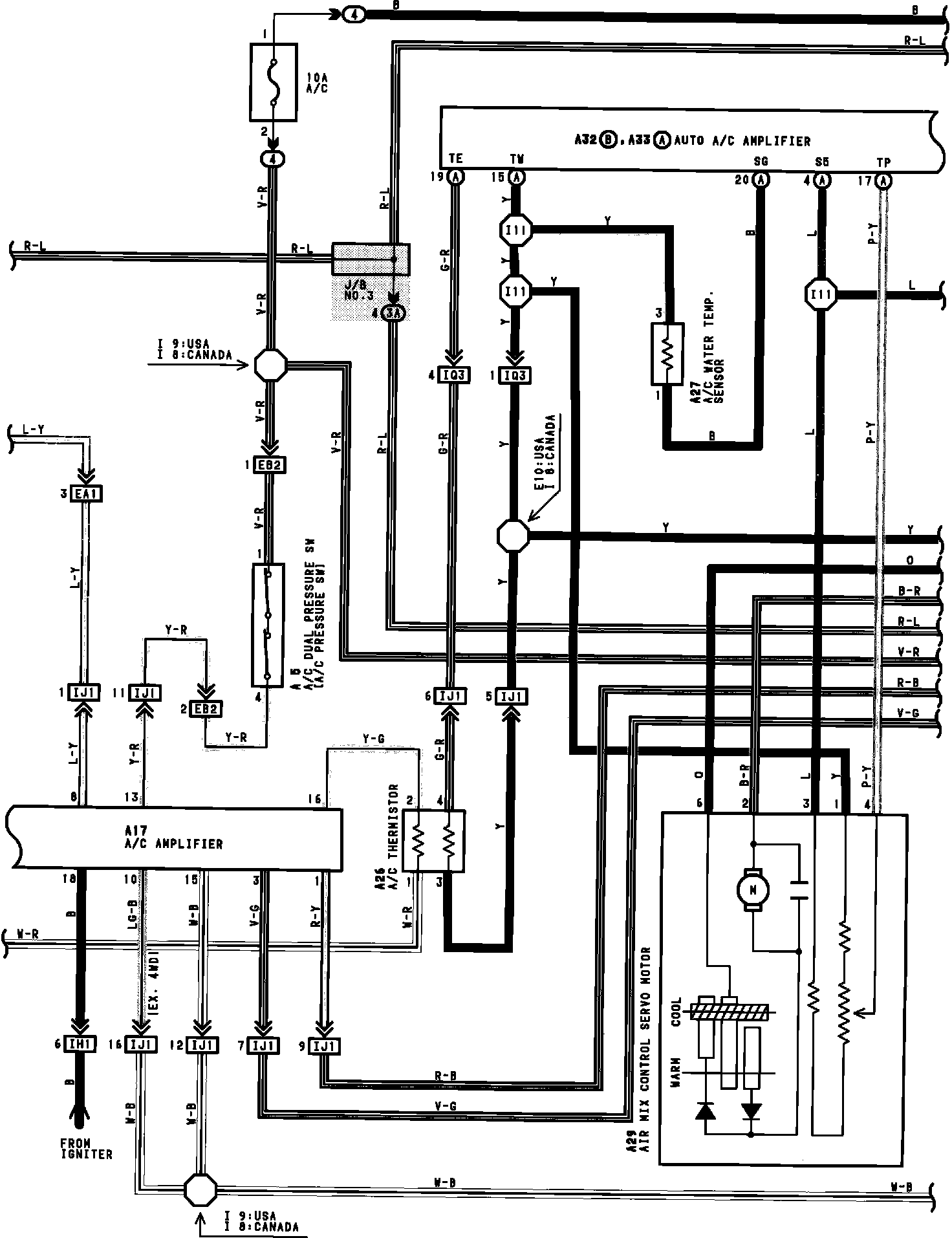

Radiator Fan And Air Conditioner (Automatic Air Conditioner):

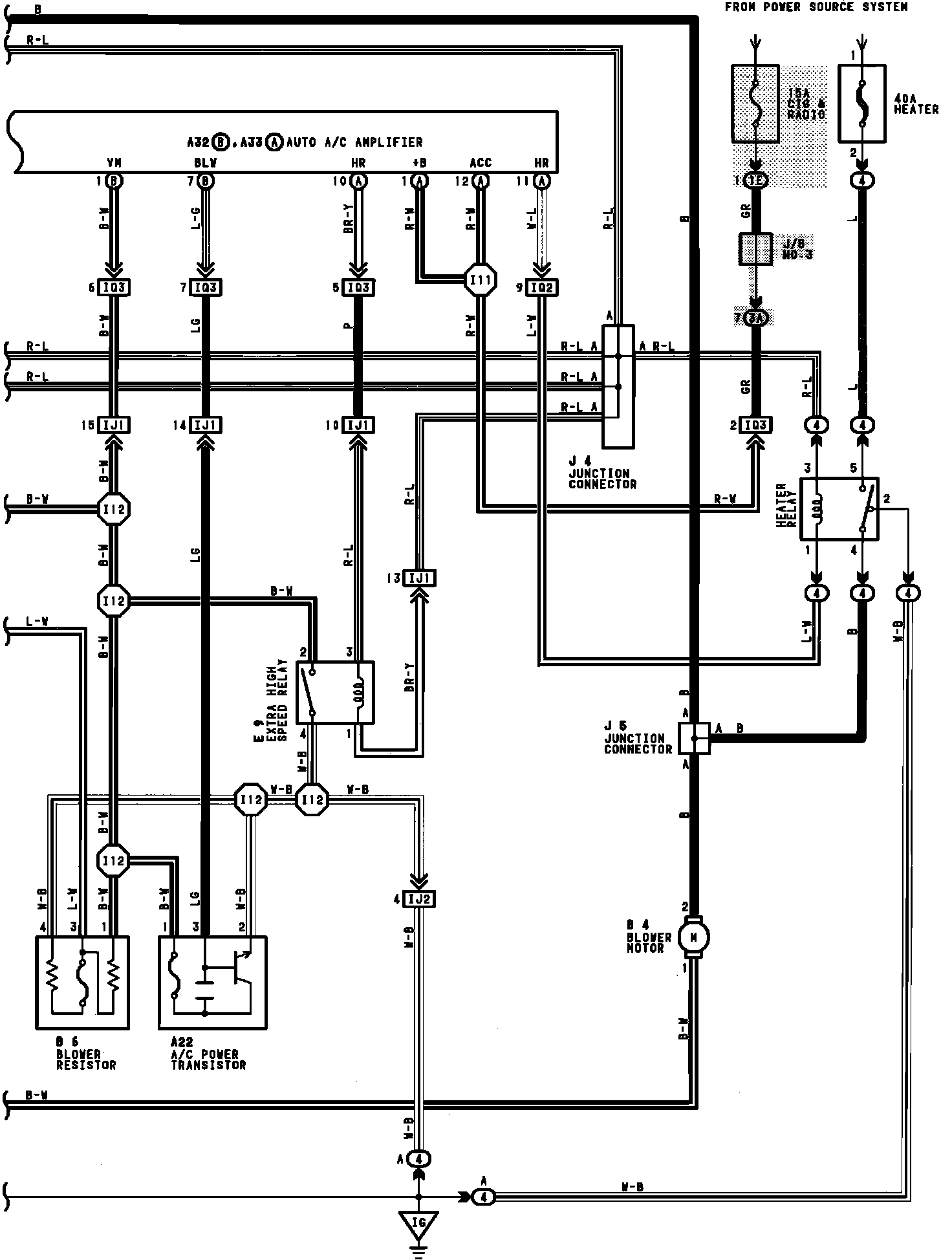

Radiator Fan And Air Conditioner (Automatic Air Conditioner):

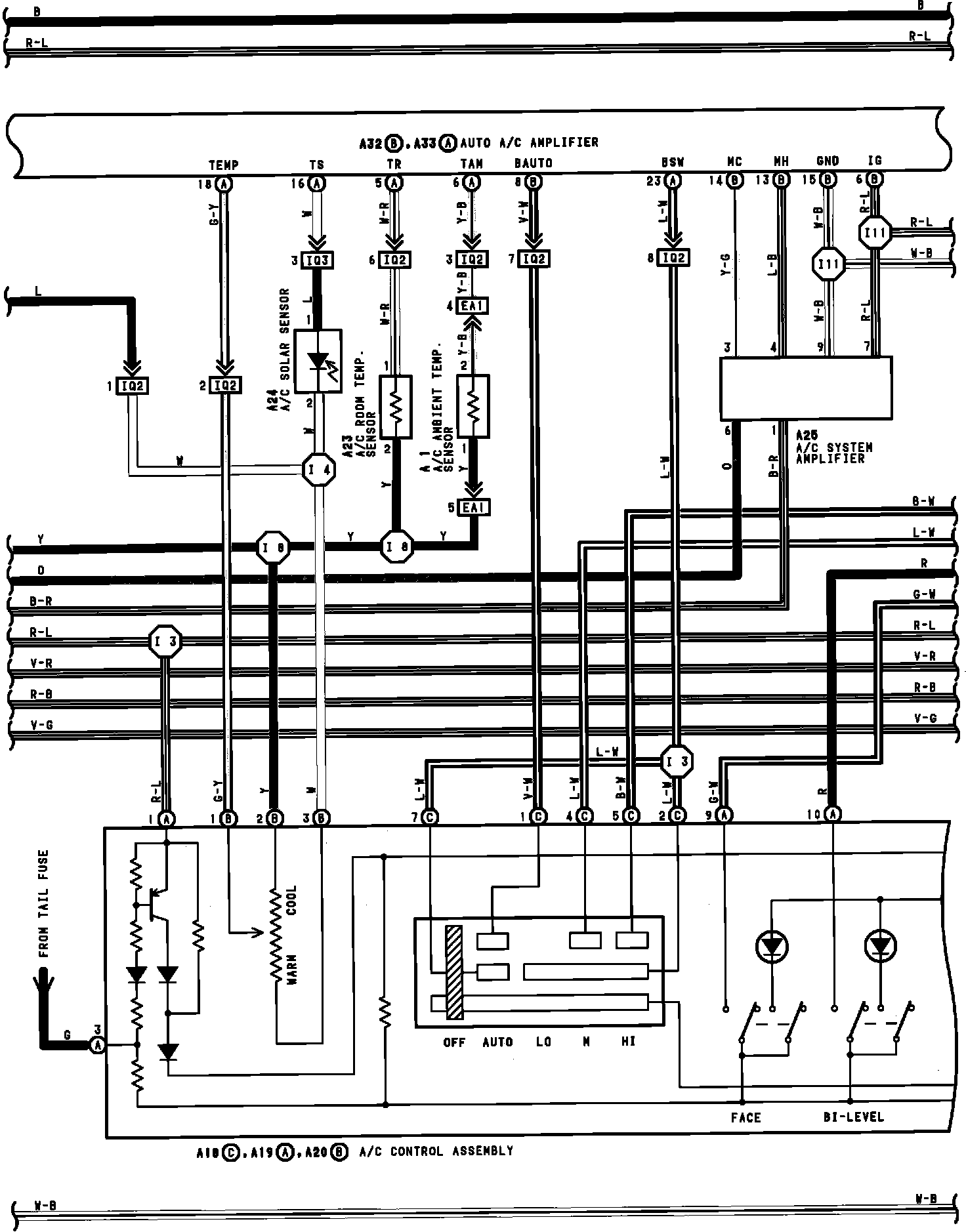

Radiator Fan And Air Conditioner (Automatic Air Conditioner):

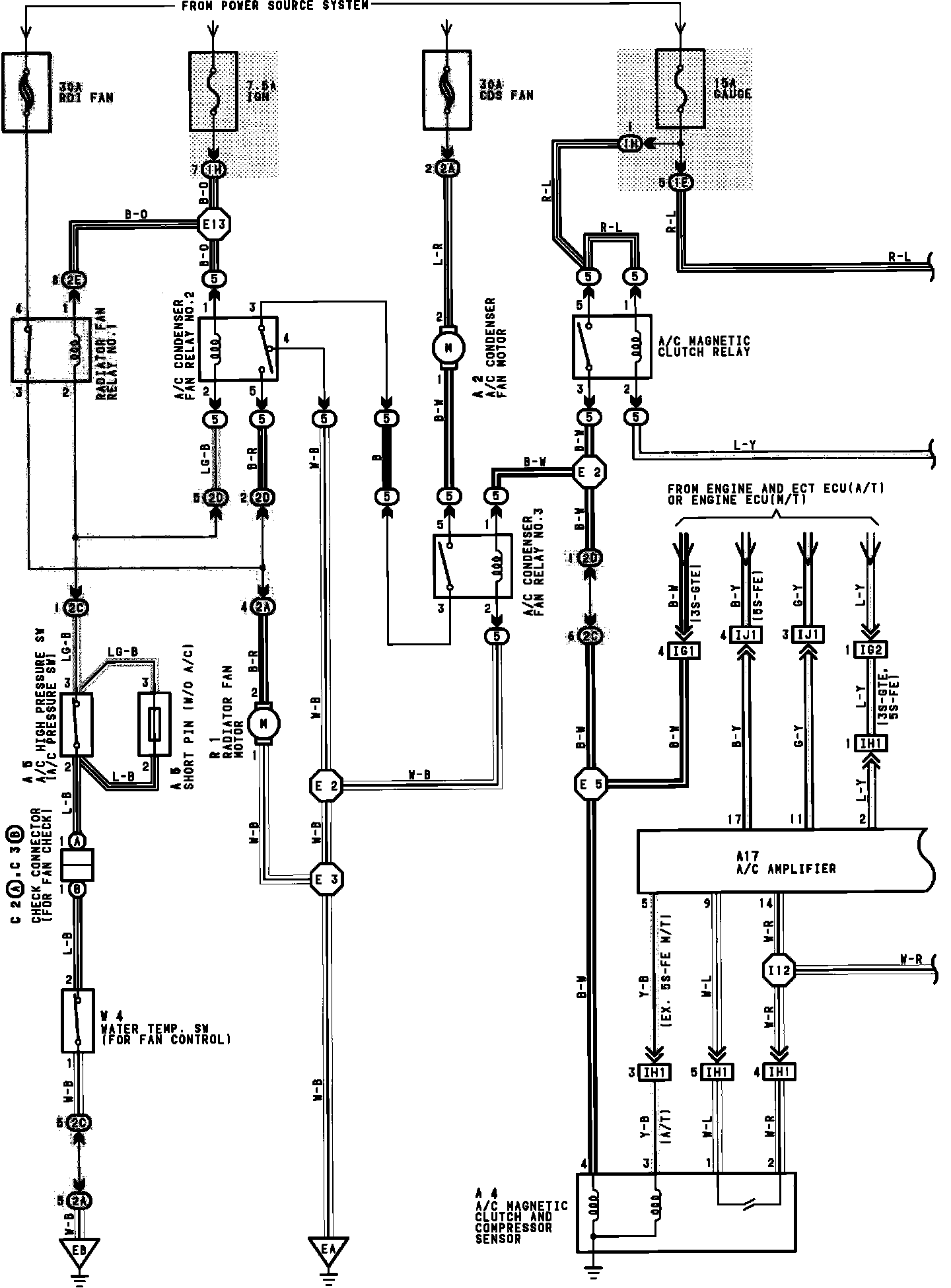

Radiator Fan And Air Conditioner (Automatic Air Conditioner):

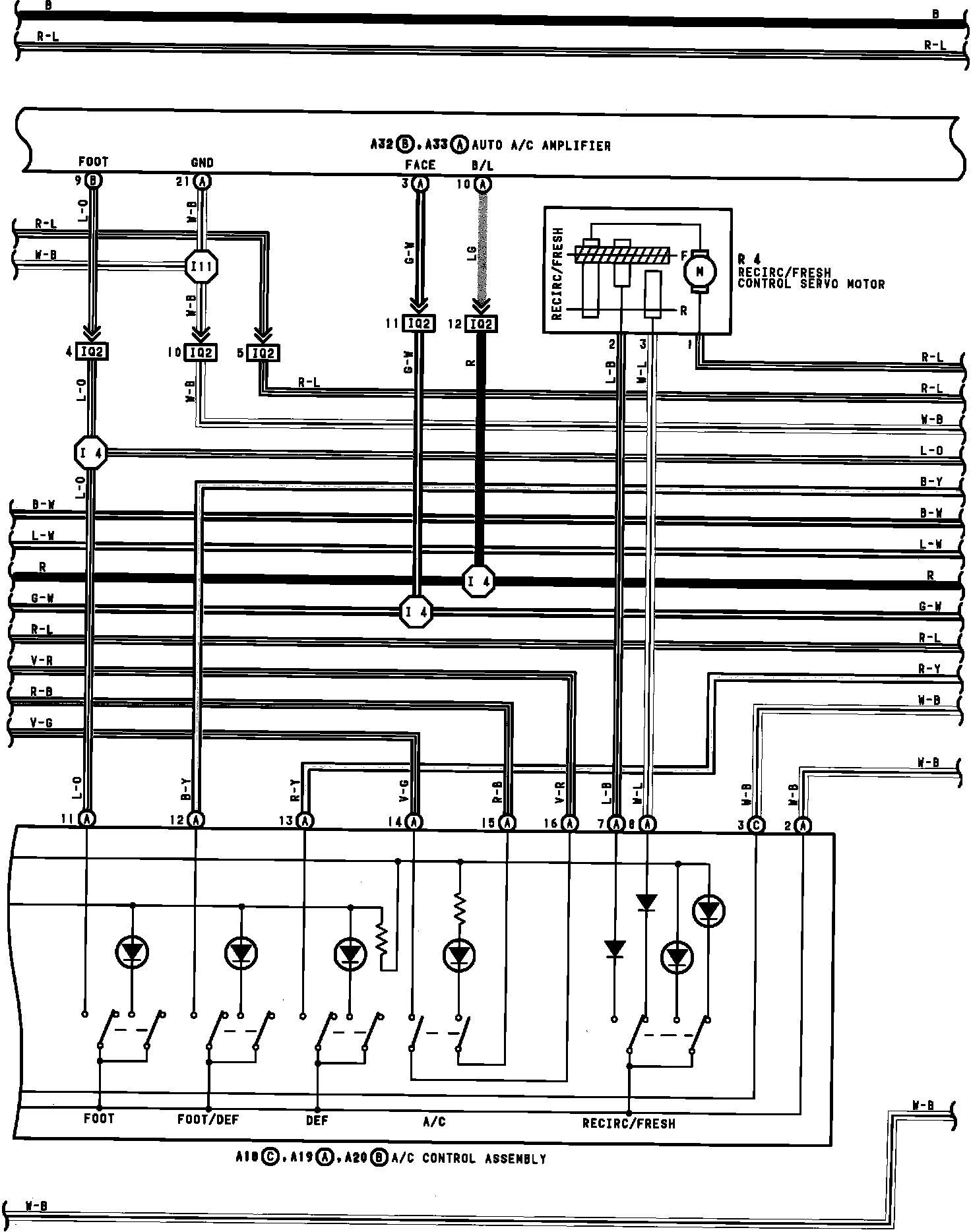

Radiator Fan And Air Conditioner (Automatic Air Conditioner):



Radiator Fan And Air Conditioner (Automatic Air Conditioner):
