Celica Convertible L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Tail Lamp
Tail Lamp

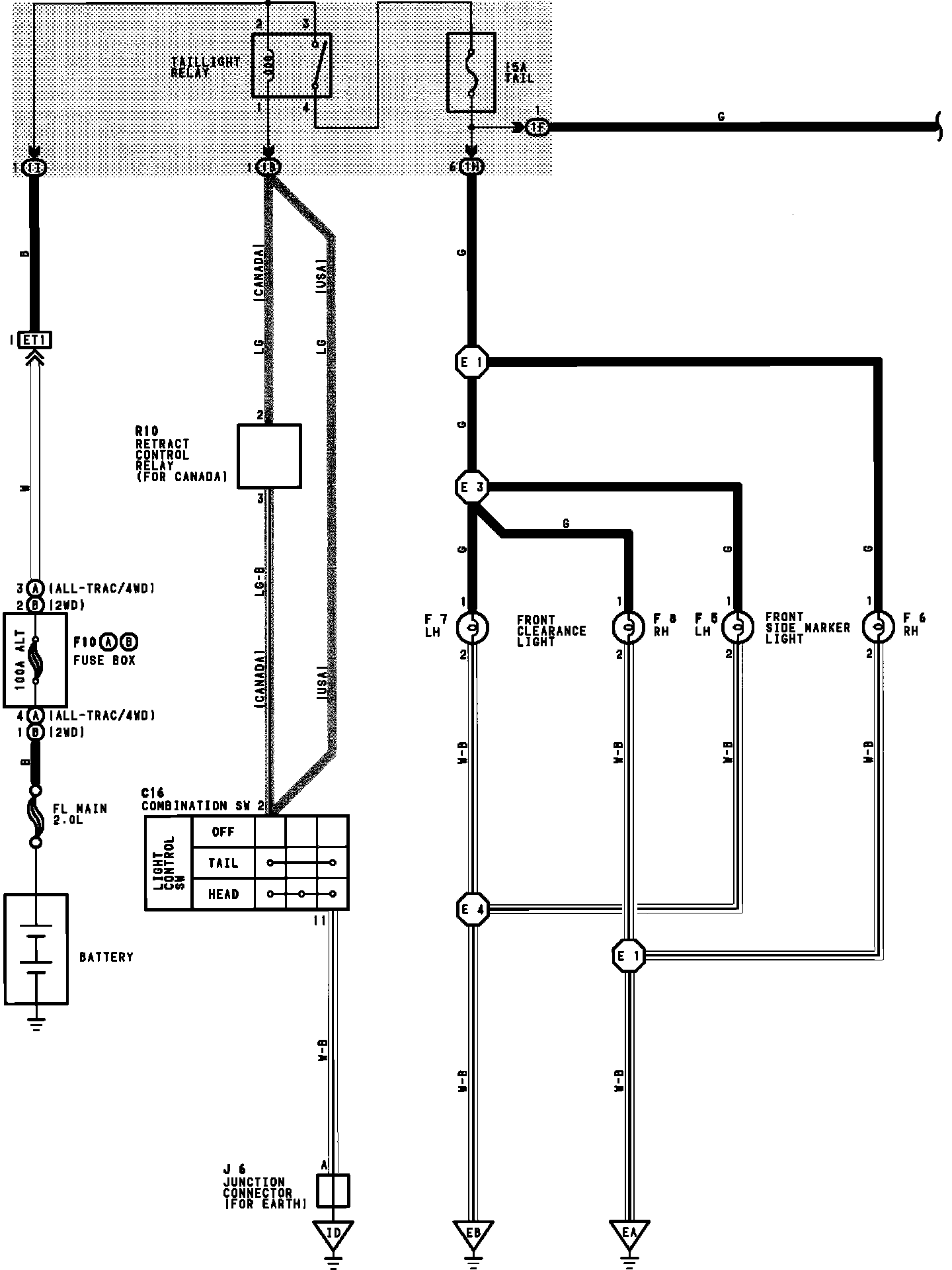

Taillight - Part 1 Of 2:

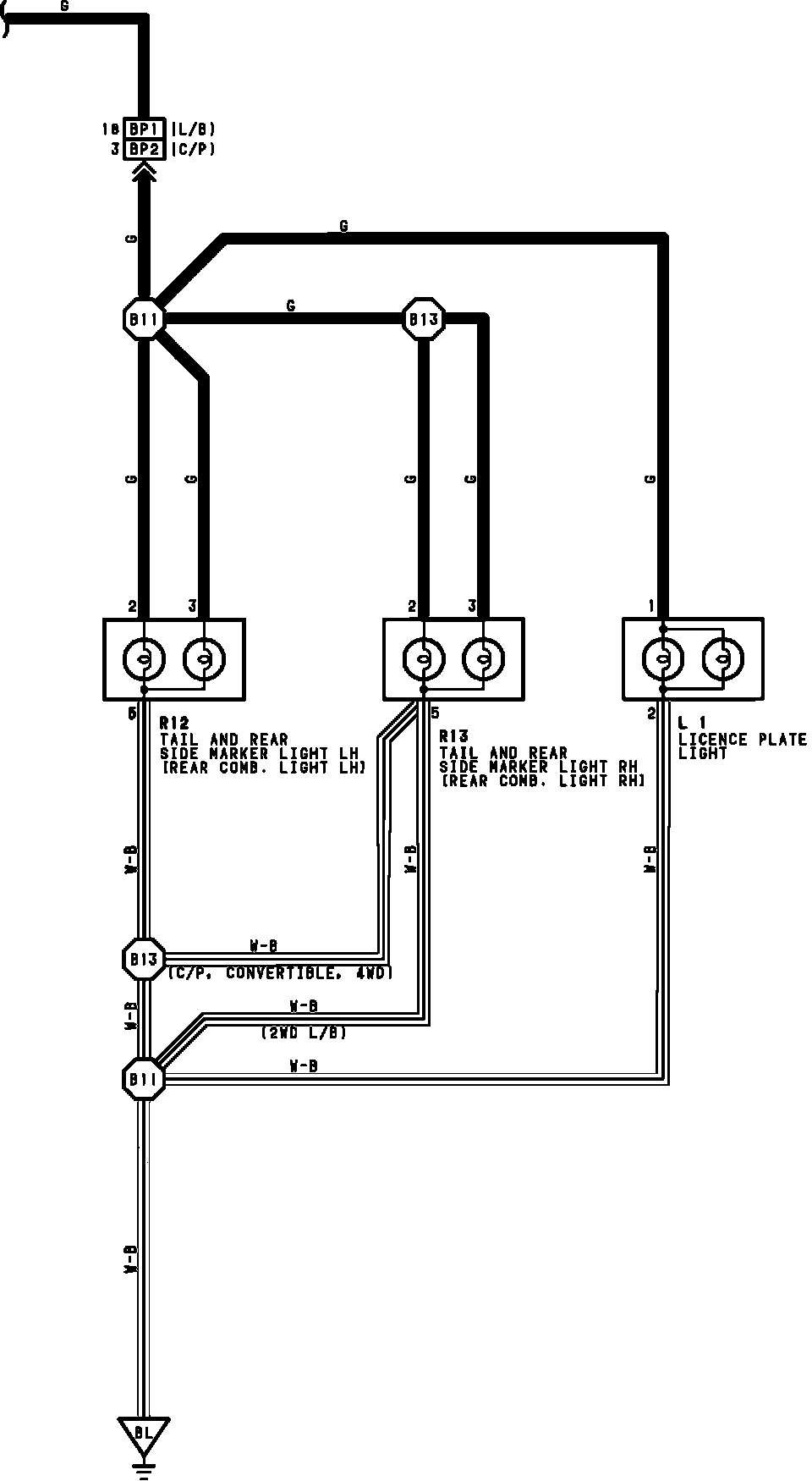

Taillight - Part 2 Of 2:
