Home >> Toyota >> 1992 >> Celica Convertible L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Without CD Player >> Wiring Diagram

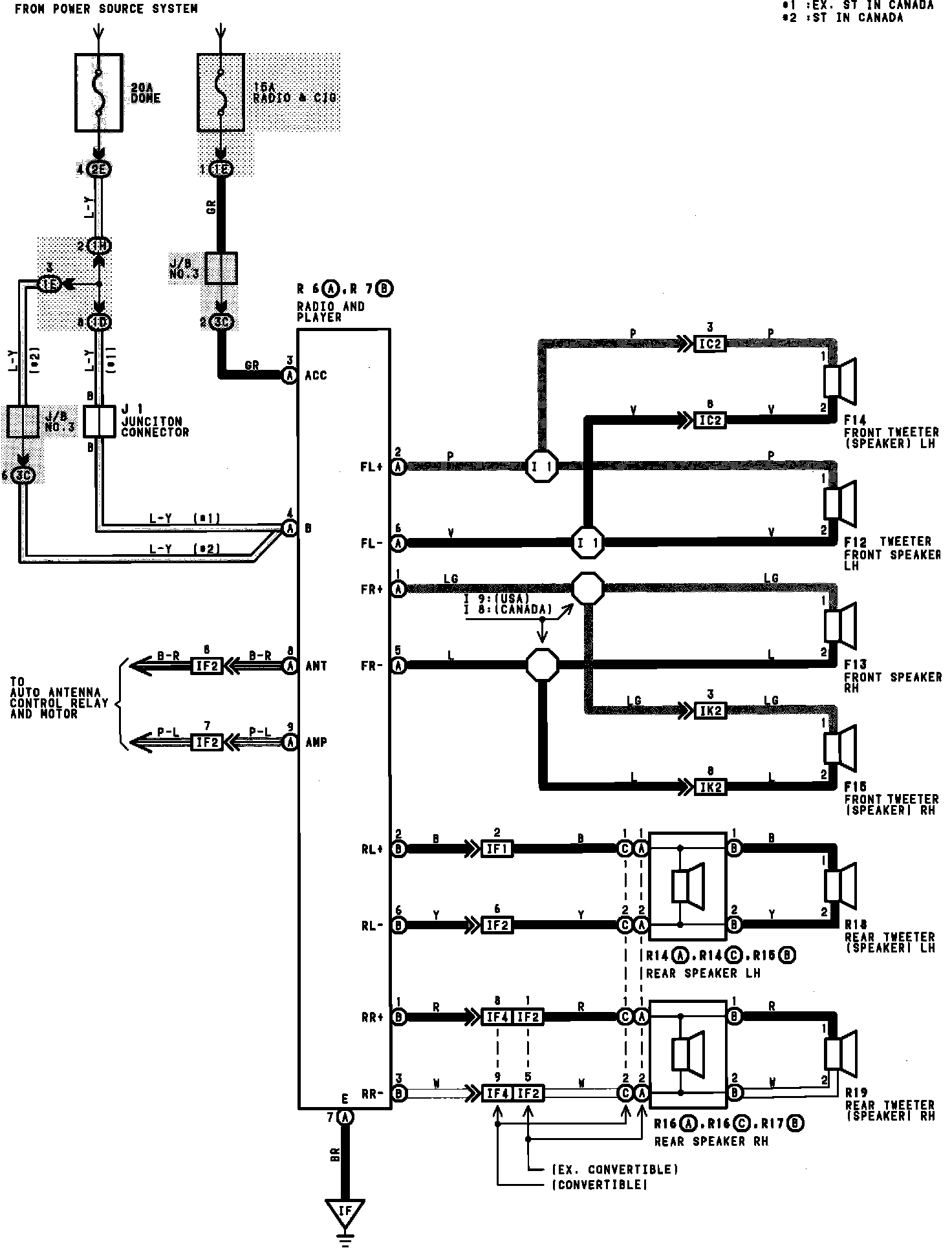

Wiring Diagram

Radio And Player Less CD Player:
