Relay Block No. 4
Relay Block No. 4

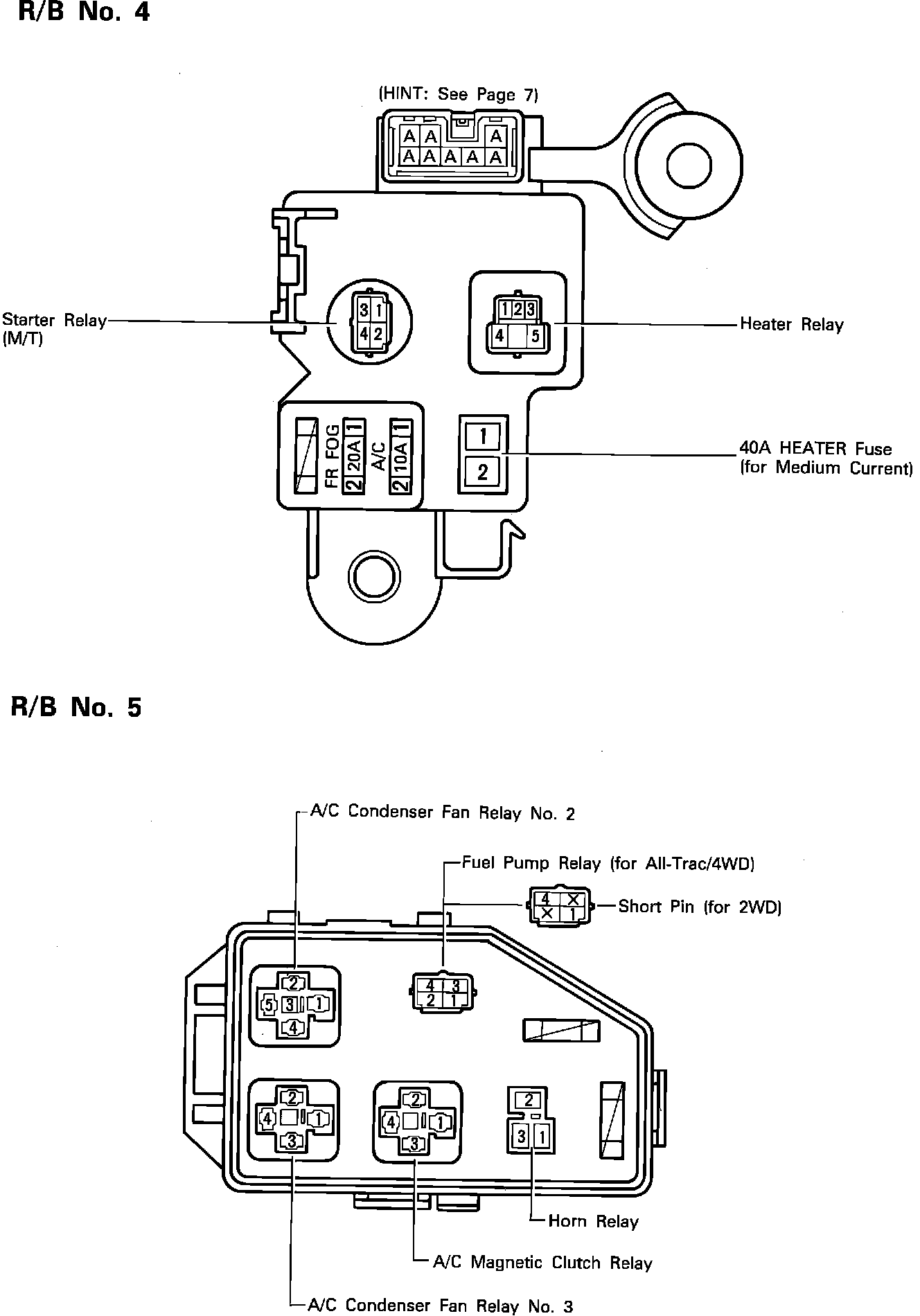

Fuse Panel: Relay Boxes No. 4 (Right Kick Panel) & No. 5 (Engine Compartment Front Right):
