Toyota
>>
1992
>>
Celica Convertible L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Computers and Control Systems
>>
Fuse/Relay and Junction Block Data
>>
Junction Block No. 2
Junction Block No. 2

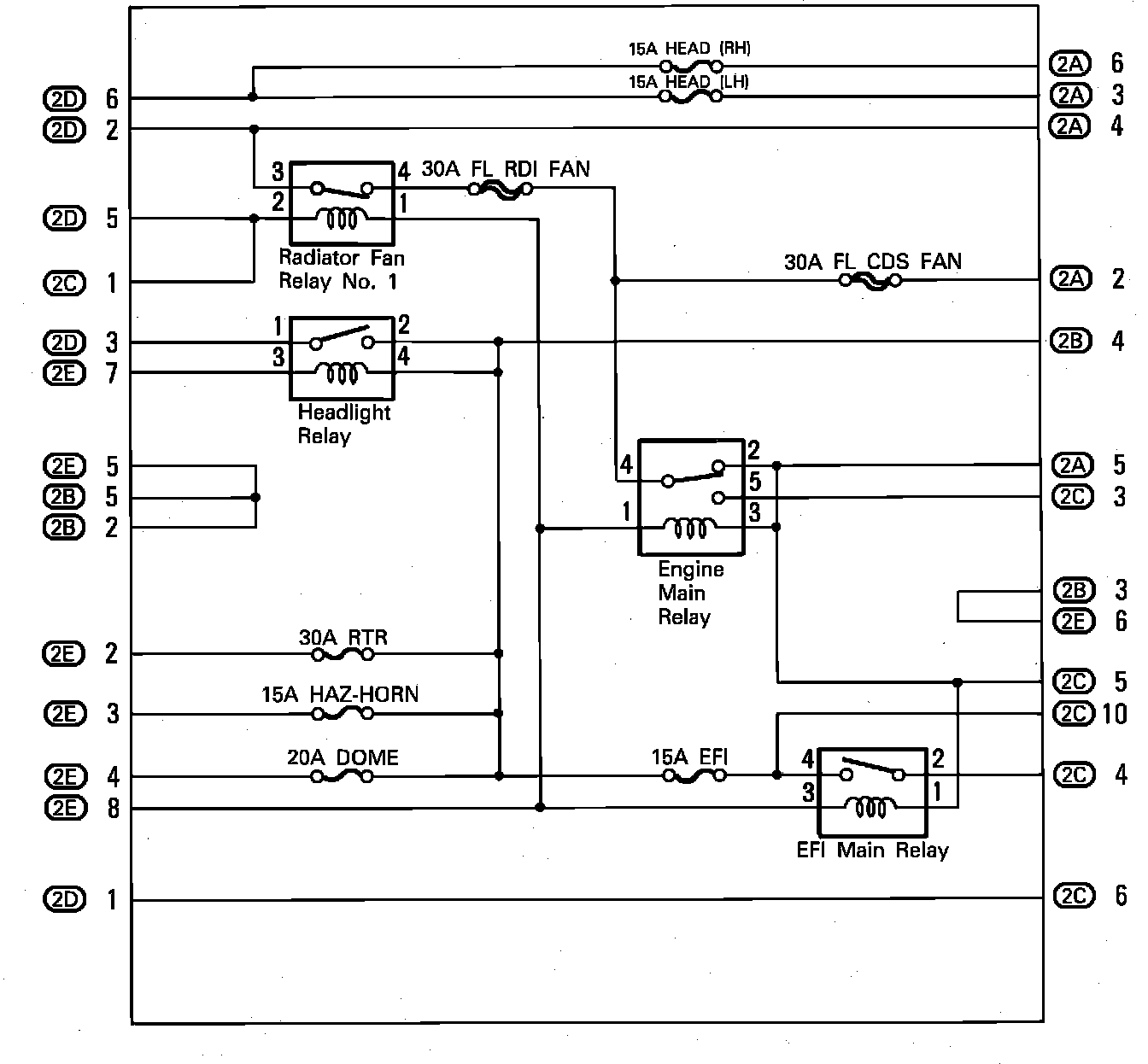

Fuse Panel: Junction Block No. 2 (Inner Circuit):
INNER CIRCUIT

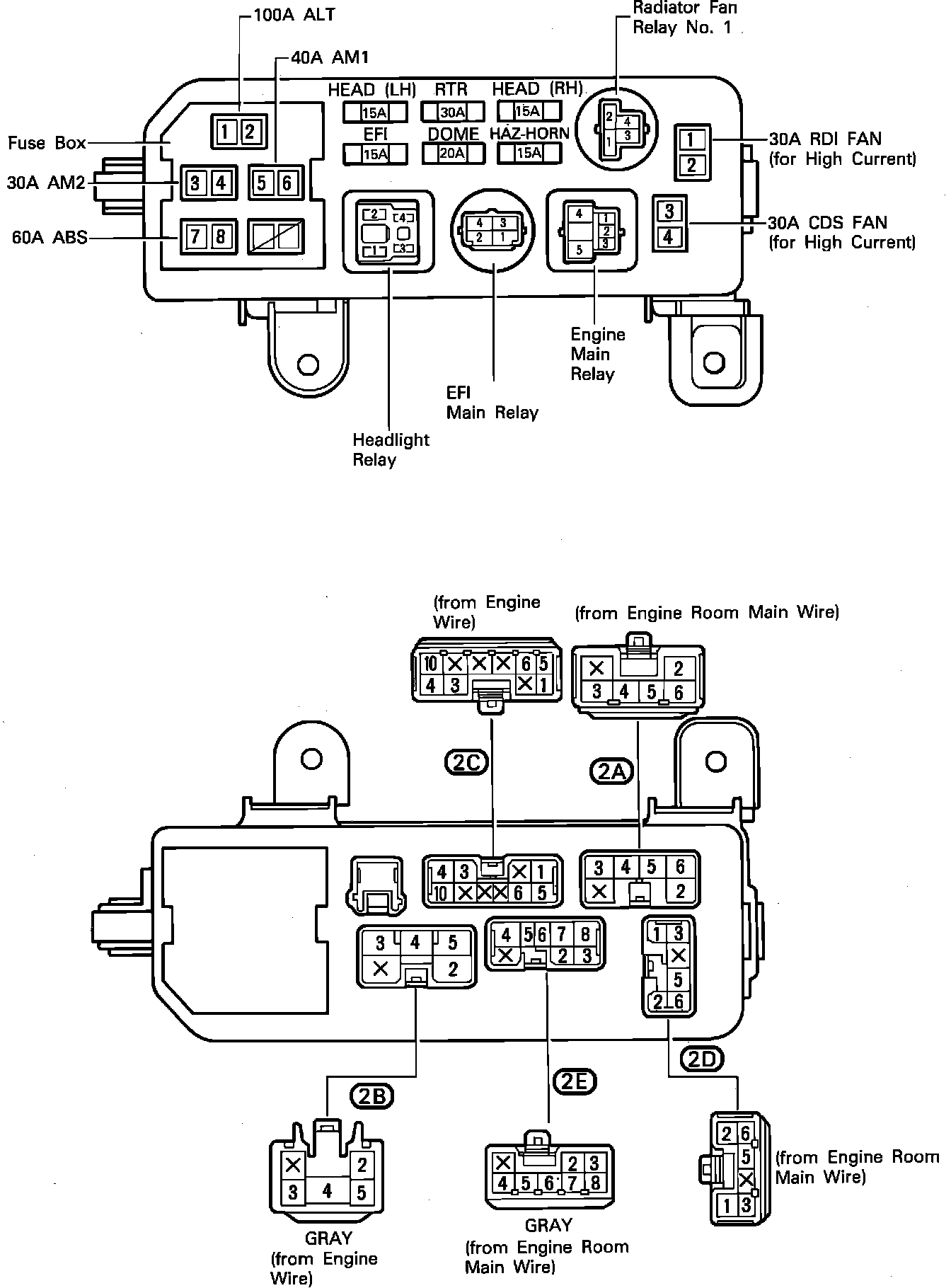

Fuse Panel: Junction Block No. 2 (Near The Battery):
VIEW
