Instrument Panel and Center Console

Locations Of Connector Joining Wire Harness & Wire Harness:

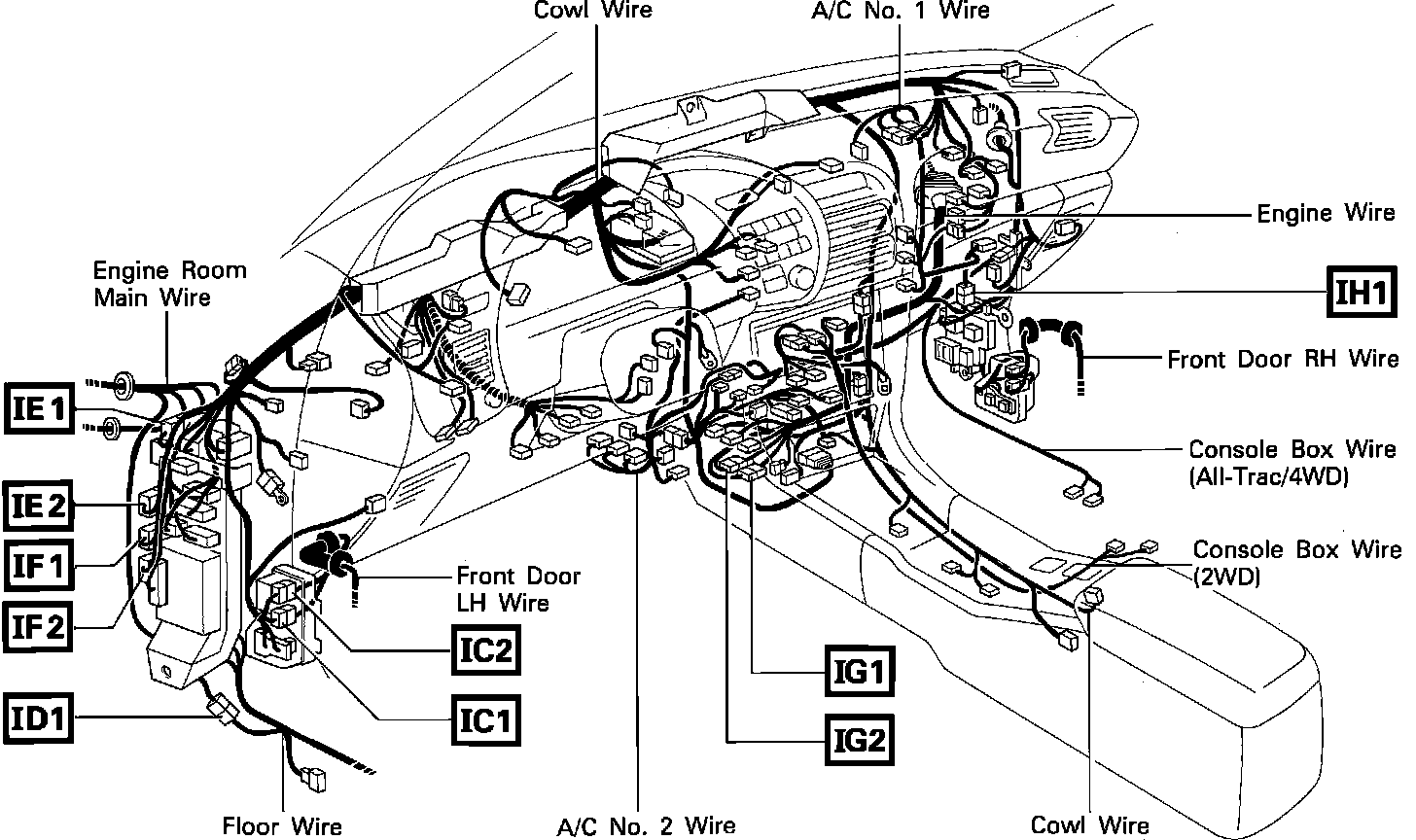

Connector Locations And Wire Harness - Instrument Panel And Center Console:




CONNECTOR LOCATION

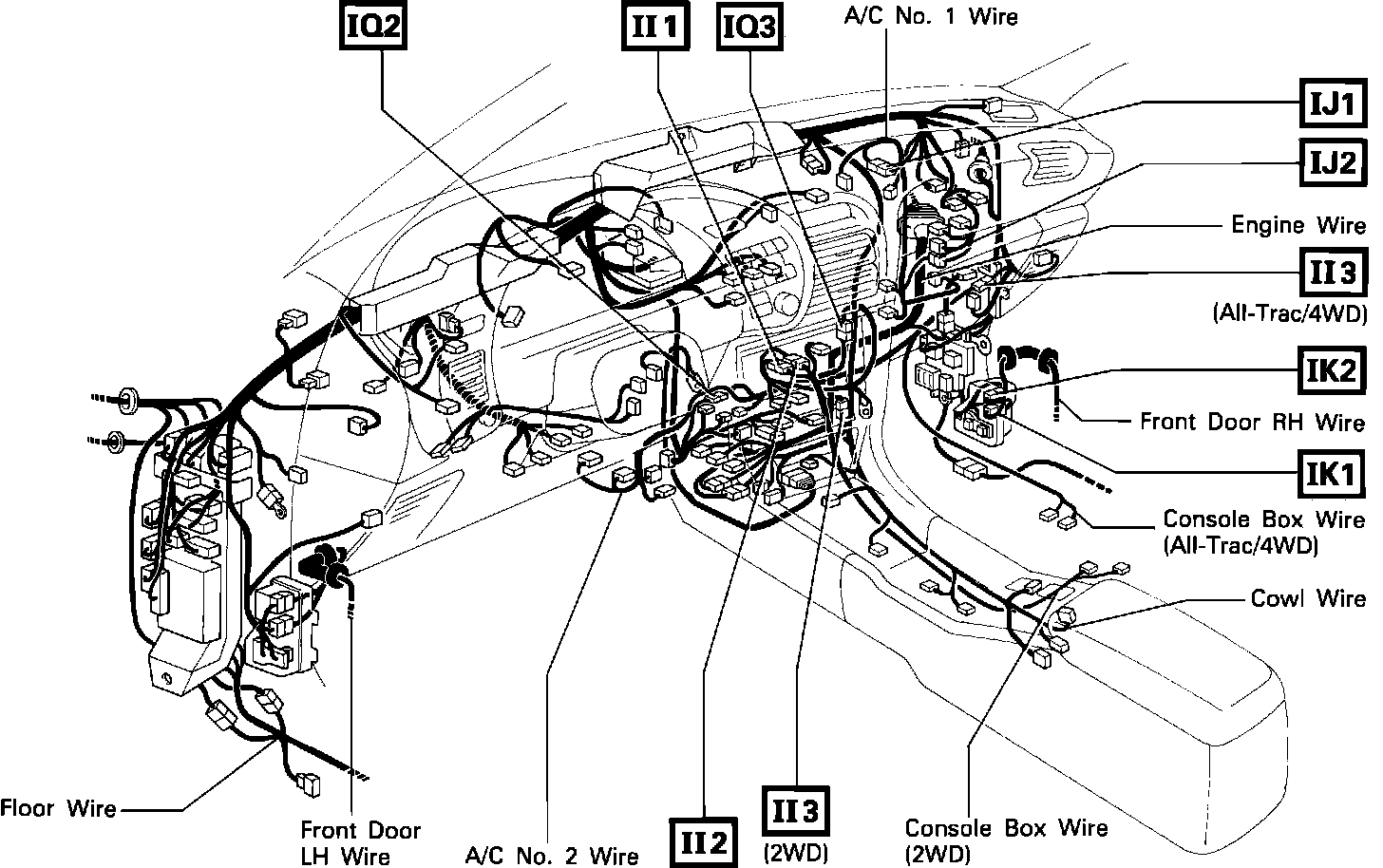

Connector Joining Wire Harness And Wire Harness - Instrument Panel And Center Console:




Connector Joining Wire Harness And Wire Harness - Instrument Panel And Center Console:

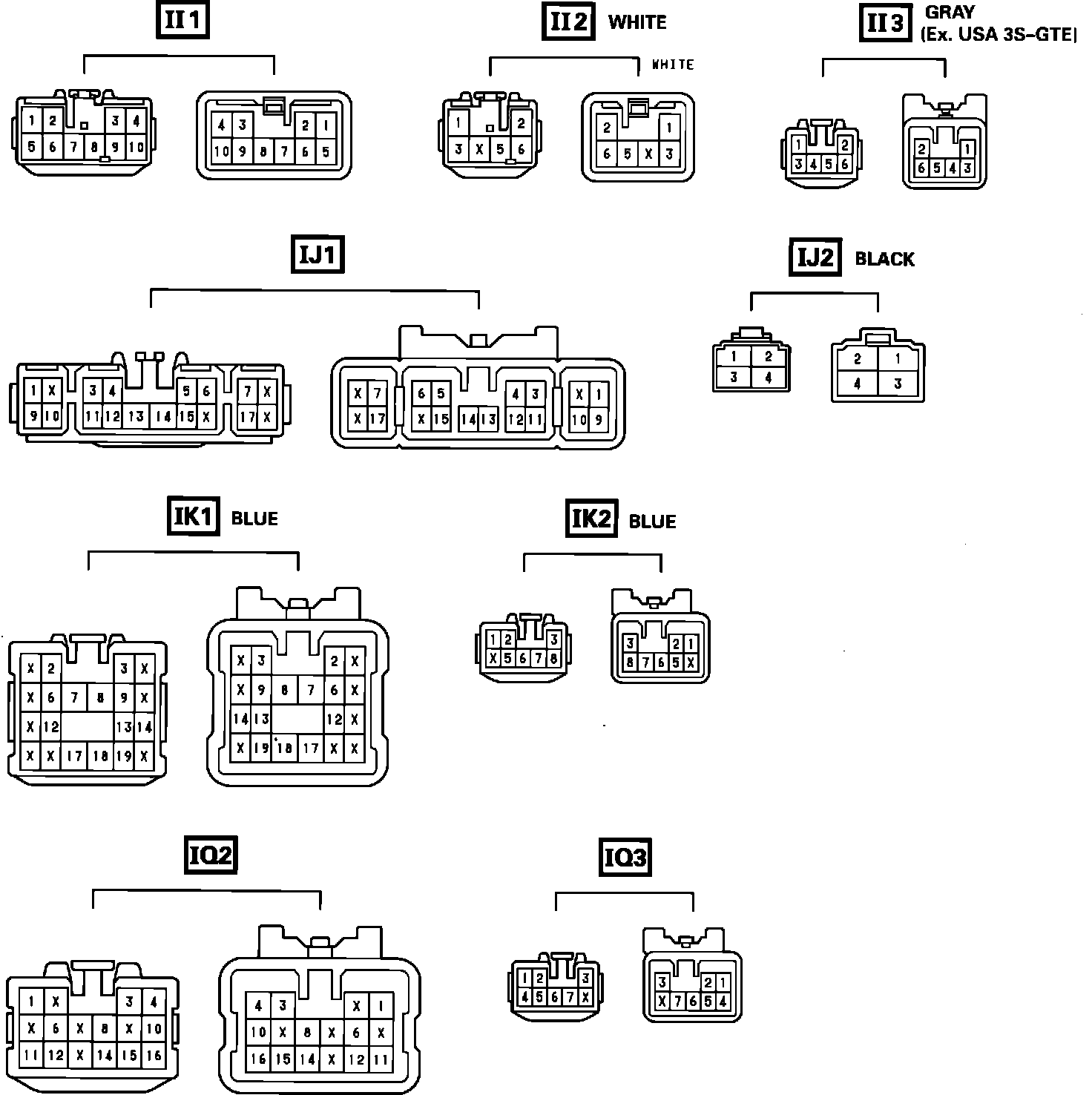

CONNECTOR IDENTIFICATION
