Electronic Brake Control Module: Locations

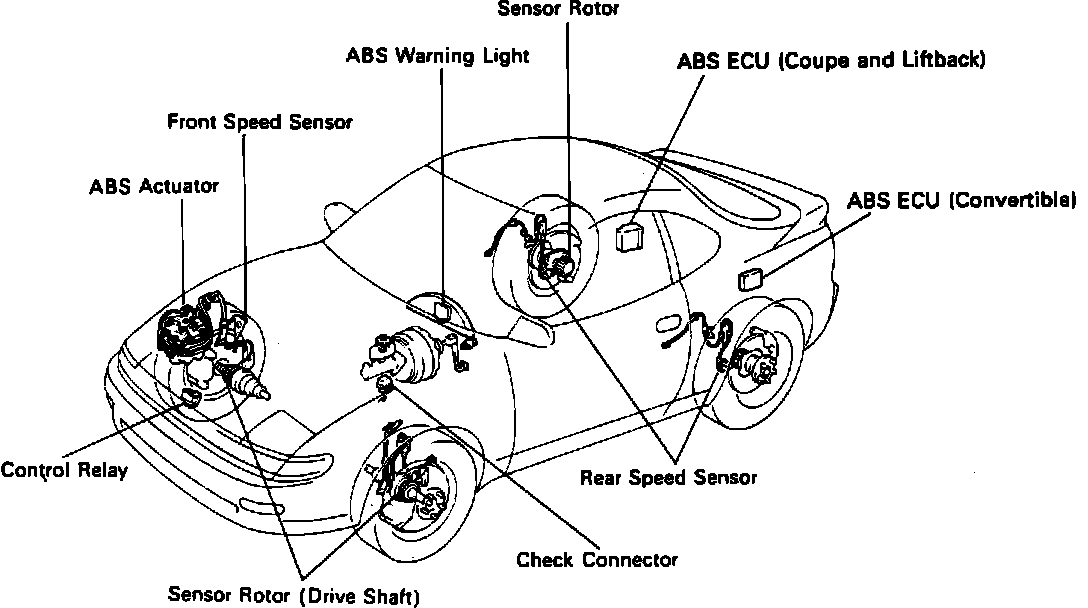

Anti-Lock Brake System (ABS) Components.:




LH Side Of Luggage Compartment

Applicable to: 2WD

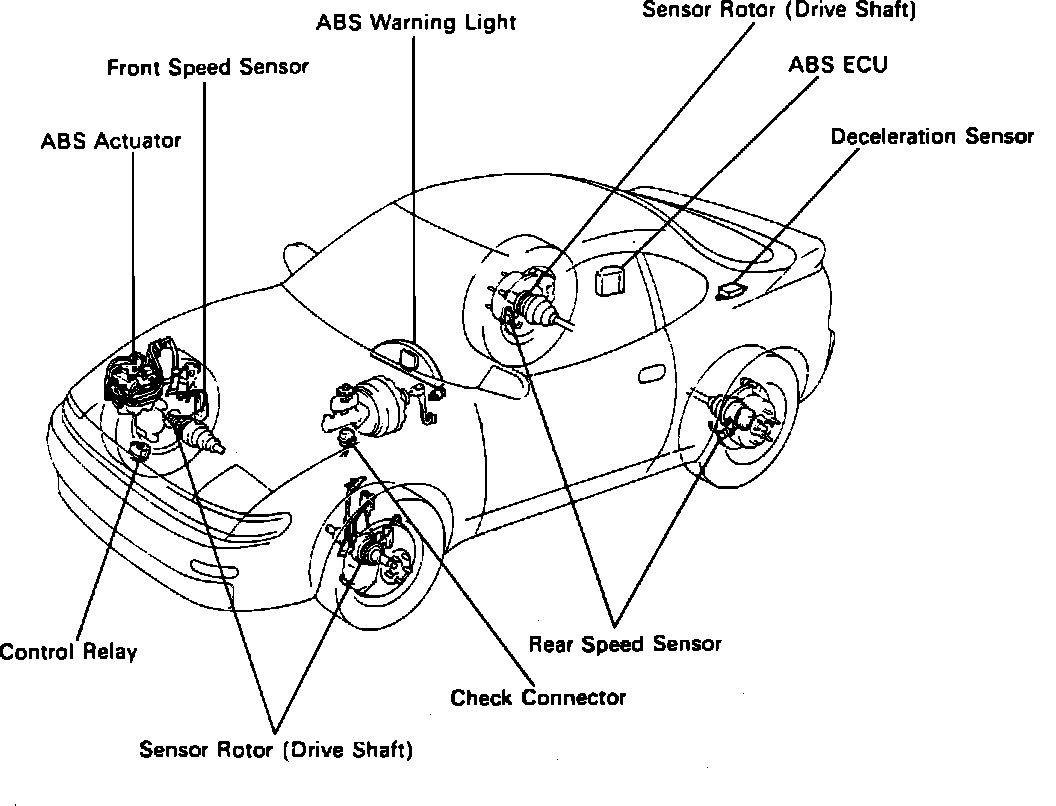

Anti-Lock Brake System (ABS) Components.:




LH Side Of Luggage Compartment

Applicable to: 4WD

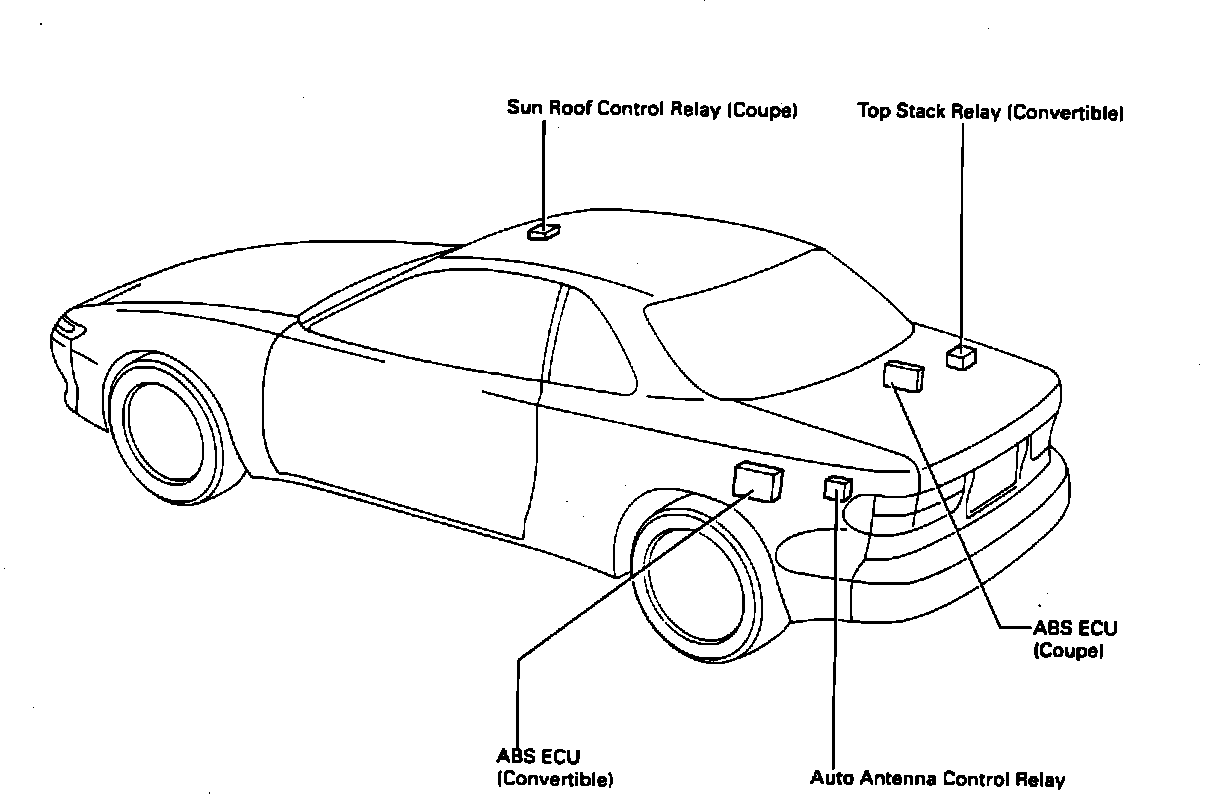

Body Components.:




LH Side Of Luggage Compartment

Applicable to: 1992 Coupe & Convertible Models
