Home >> Toyota >> 1992 >> Celica Convertible L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 4 - ABS Malfunctions/Abnormal Operations

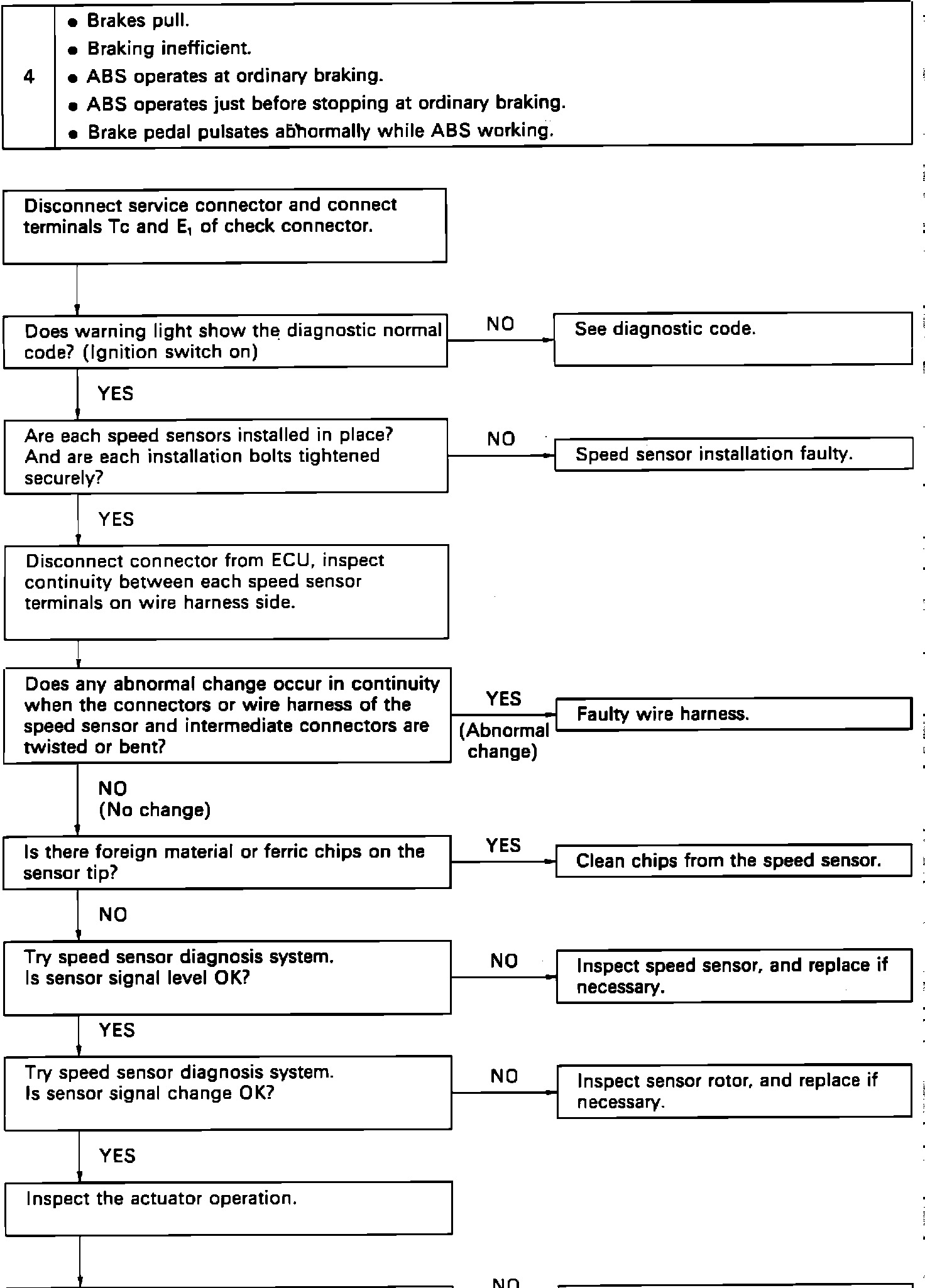

4 - ABS Malfunctions/Abnormal Operations

��DHDiagnostic Procedure #4:
