Ignition Lock - Key Cutter And Code Information

91toyota05

REF.: PRODUCT GENERAL INFORMATION

NO.: P191-009


DATE: NOVEMBER 15,1991


MODEL: ALL MODELS


1992 KEY CODE AND CUTTER INFORMATION


A new "high security" key and lock system has been introduced on the 1992 Camry Model line. This new lock system is designed to inhibit vehicle entry via lock picking.

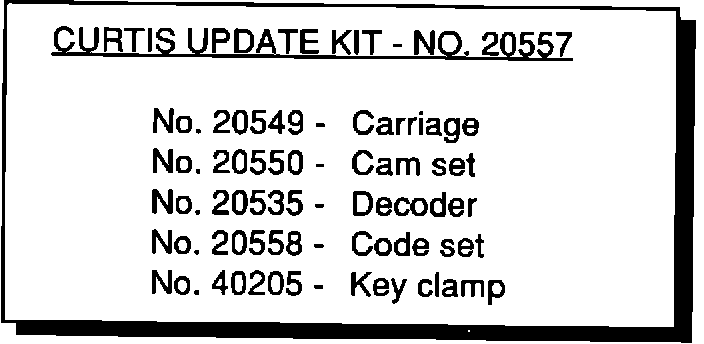

Because of this new key and lock design, cutting replacement keys will require an update kit for your Curtis Industries key cutter. The update kit, No. 20557, contains the following necessary cutting equipment:


Note: The 47 degree code cutter and updated key clamp must be used to cut keys for the new 1992 Camry lock system. Use of any other model code cutter or clamp can cause lock damage, resulting in possible damage to the starting system. The updated key clamp will also accommodate the other Toyota models. Subsequently, to reduce confusion, it is advisable that you discard the old key clamp.

SEPARATE ORDER ITEM:


^ Key Blank: TR-47 (Curtis Industries Key Blanks No. 25795 - Package of 50).


For code and key cutter information on 1992 Camry and other 1992 model year Toyota vehicles, please refer to the accompanying charts.


Contact your local Curtis representative or call Curtis Industries Customer Service at (216) 951-2400 for further information.
