Home >> Toyota >> 1992 >> Celica Convertible L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Restraint Systems >> DTC 31

DTC 31

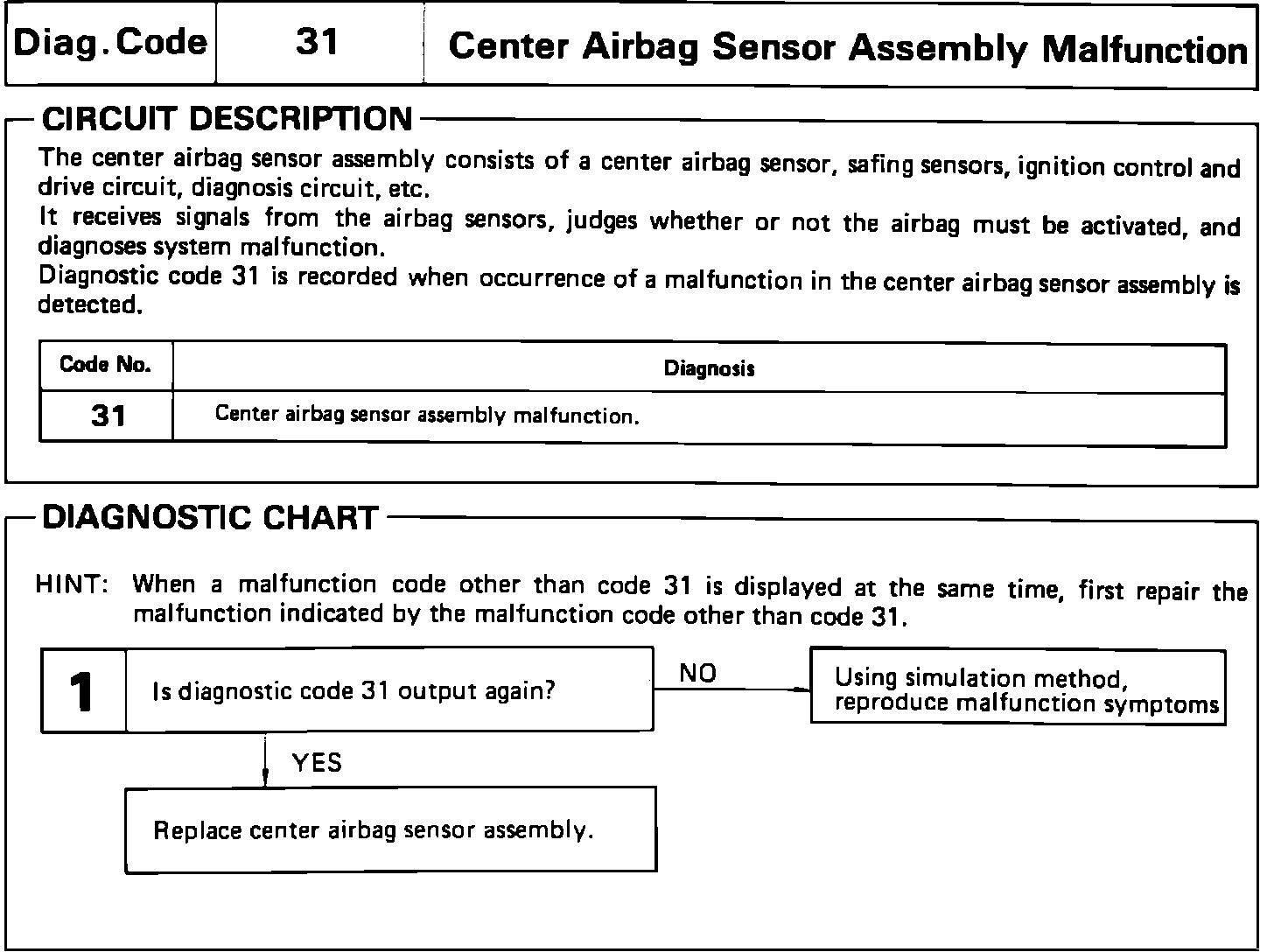

Fig. 33 Diagnostic Code 31 (Center Airbag Sensor Assembly Malfunction, Part 1 Of 2). Celica, MR2 & Supra:

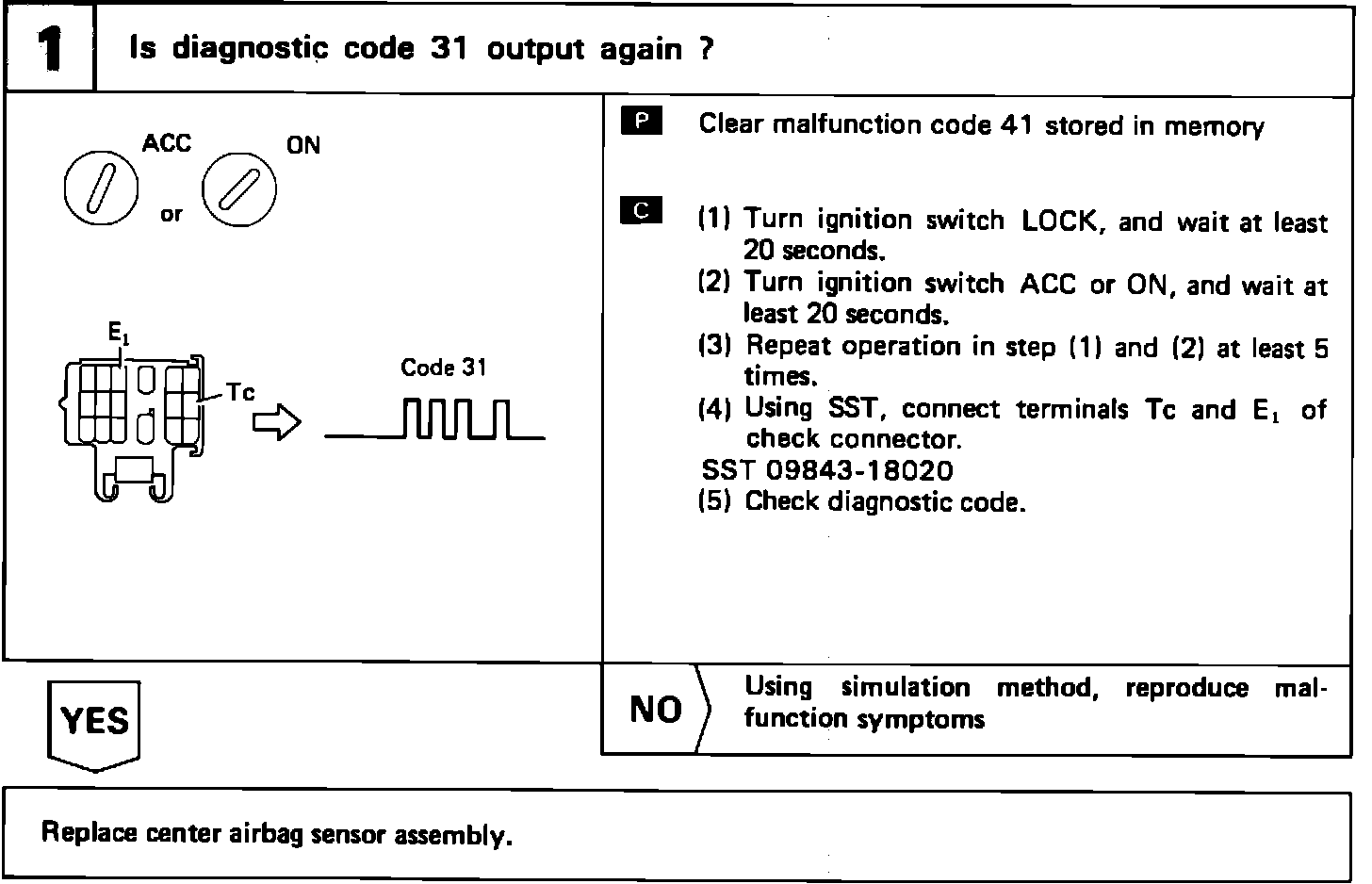

Fig. 33 Diagnostic Code 31 (Center Airbag Sensor Assembly Malfunction, Part 2 Of 2). Celica, MR2 & Supra:
