DTC 13

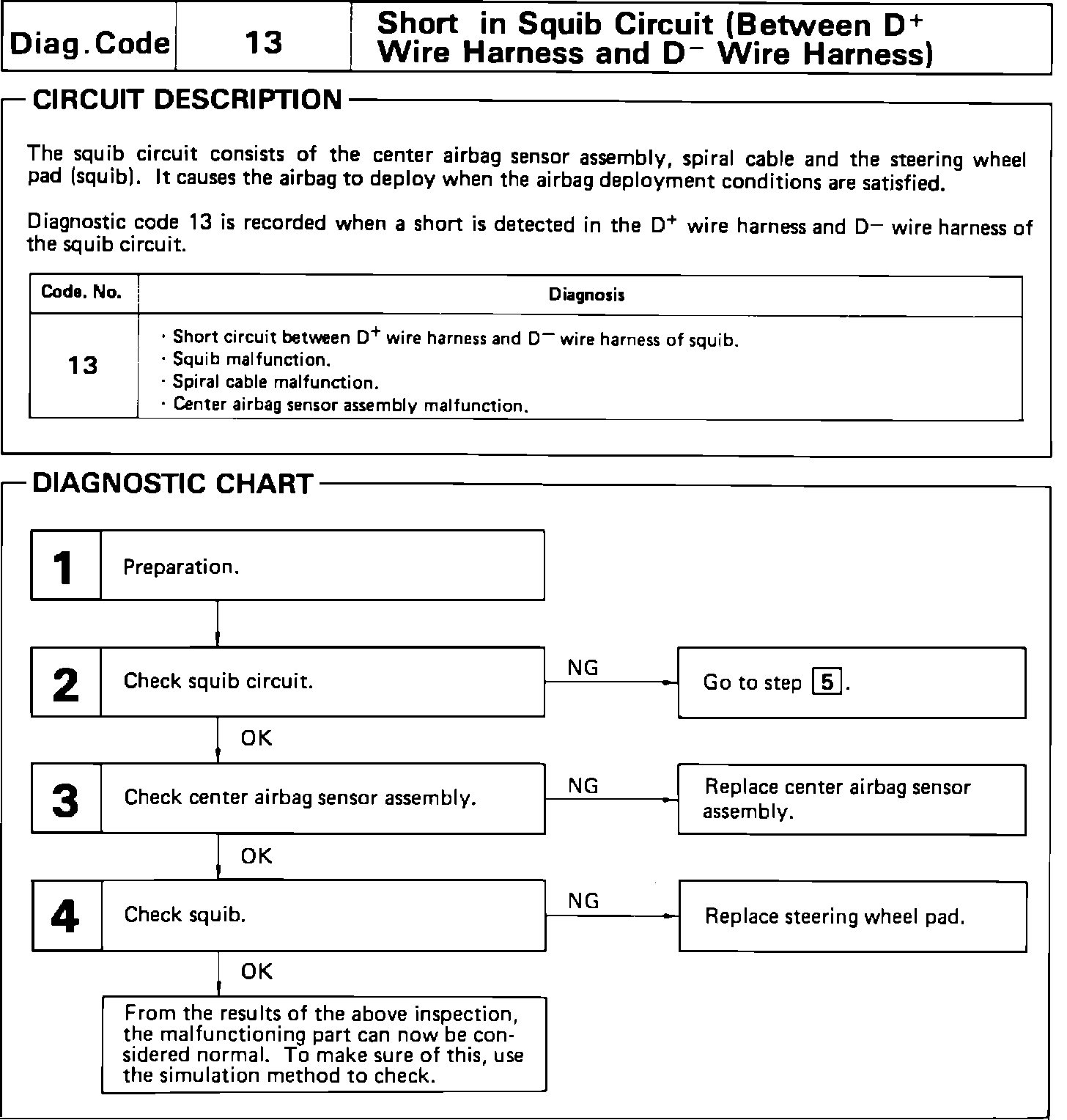

Fig. 29 Diagnostic Code 13 (Short In Squib Circuit Between D+ & D- , Part 1 Of 6). Celica, MR2 & Supra:

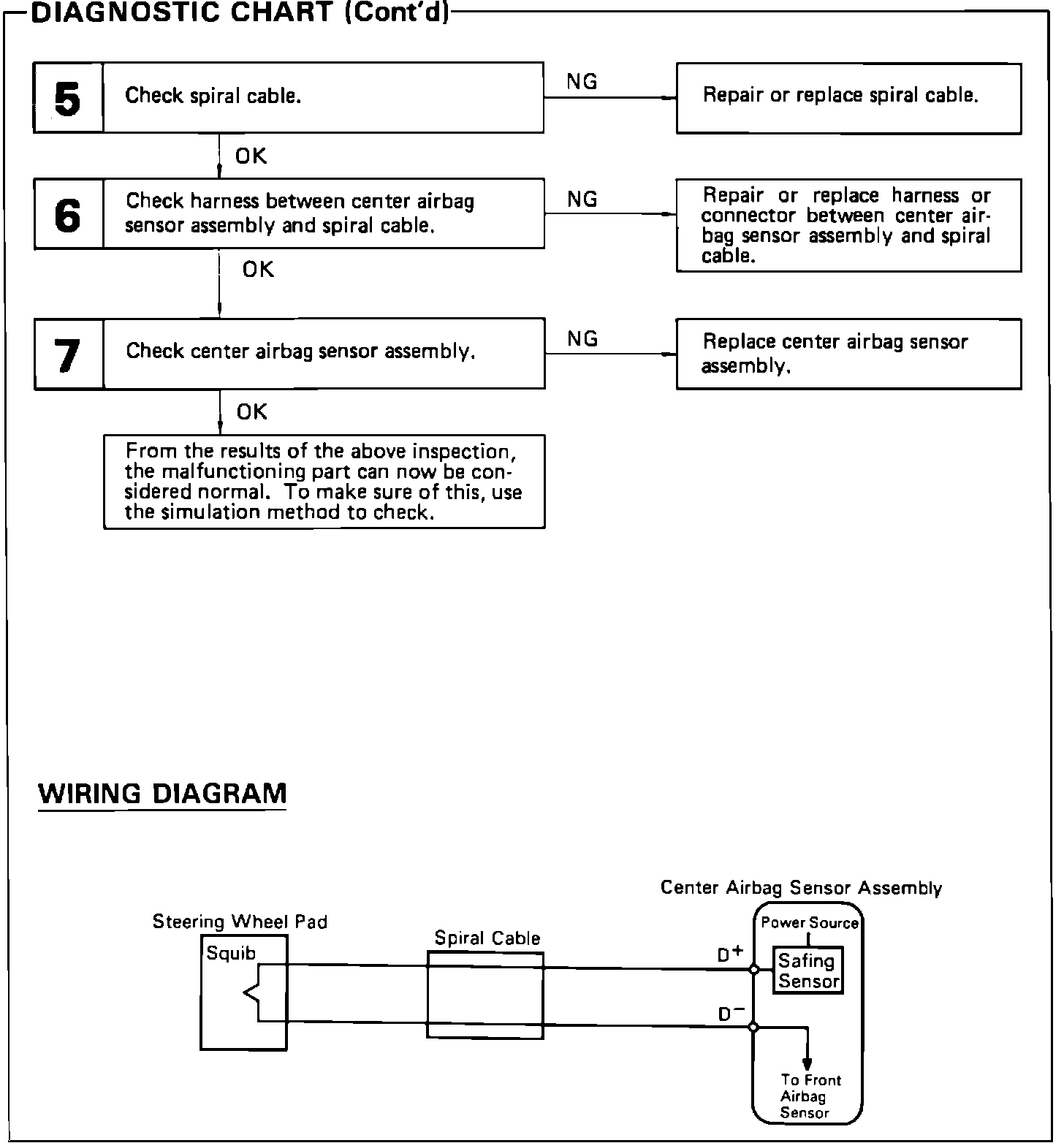

Fig. 29 Diagnostic Code 13 (Short In Squib Circuit Between D+ & D- , Part 2 Of 6). Celica, MR2 & Supra:

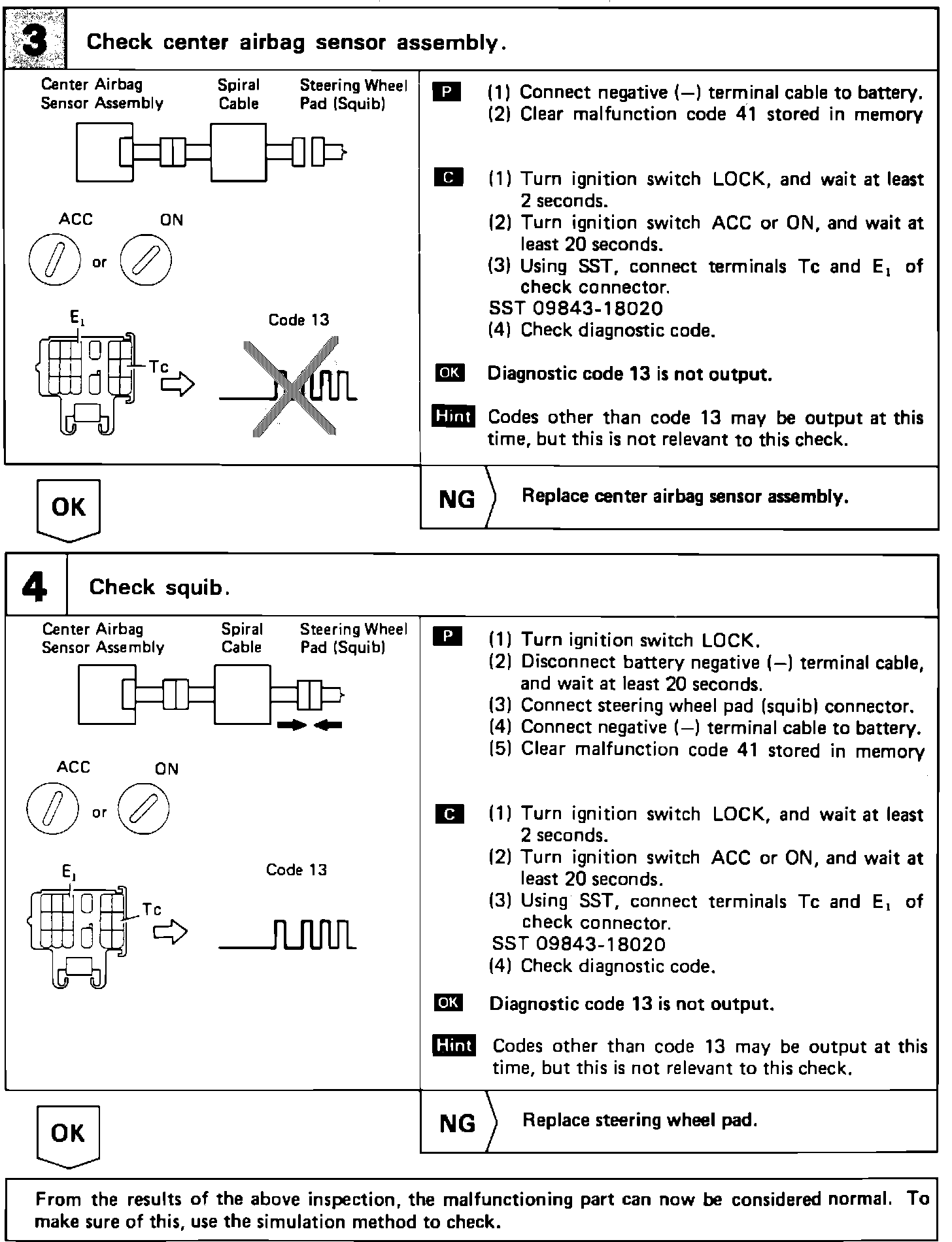

Fig. 29 Diagnostic Code 13 (Short In Squib Circuit Between D+ & D- , Part 3 Of 6). Celica, MR2 & Supra:

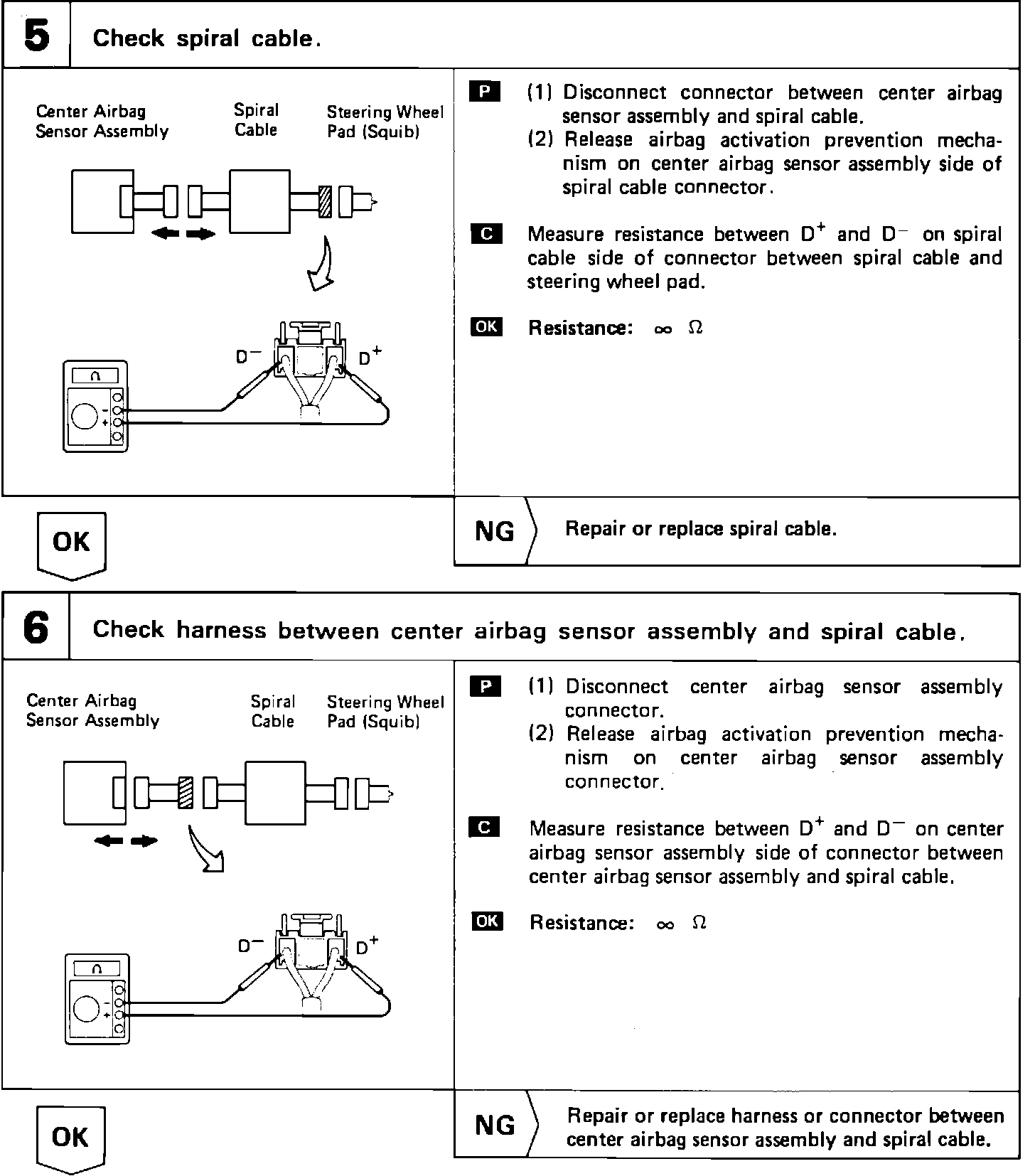

Fig. 29 Diagnostic Code 13 (Short In Squib Circuit Between D+ & D- , Part 4 Of 6). Celica, MR2 & Supra:

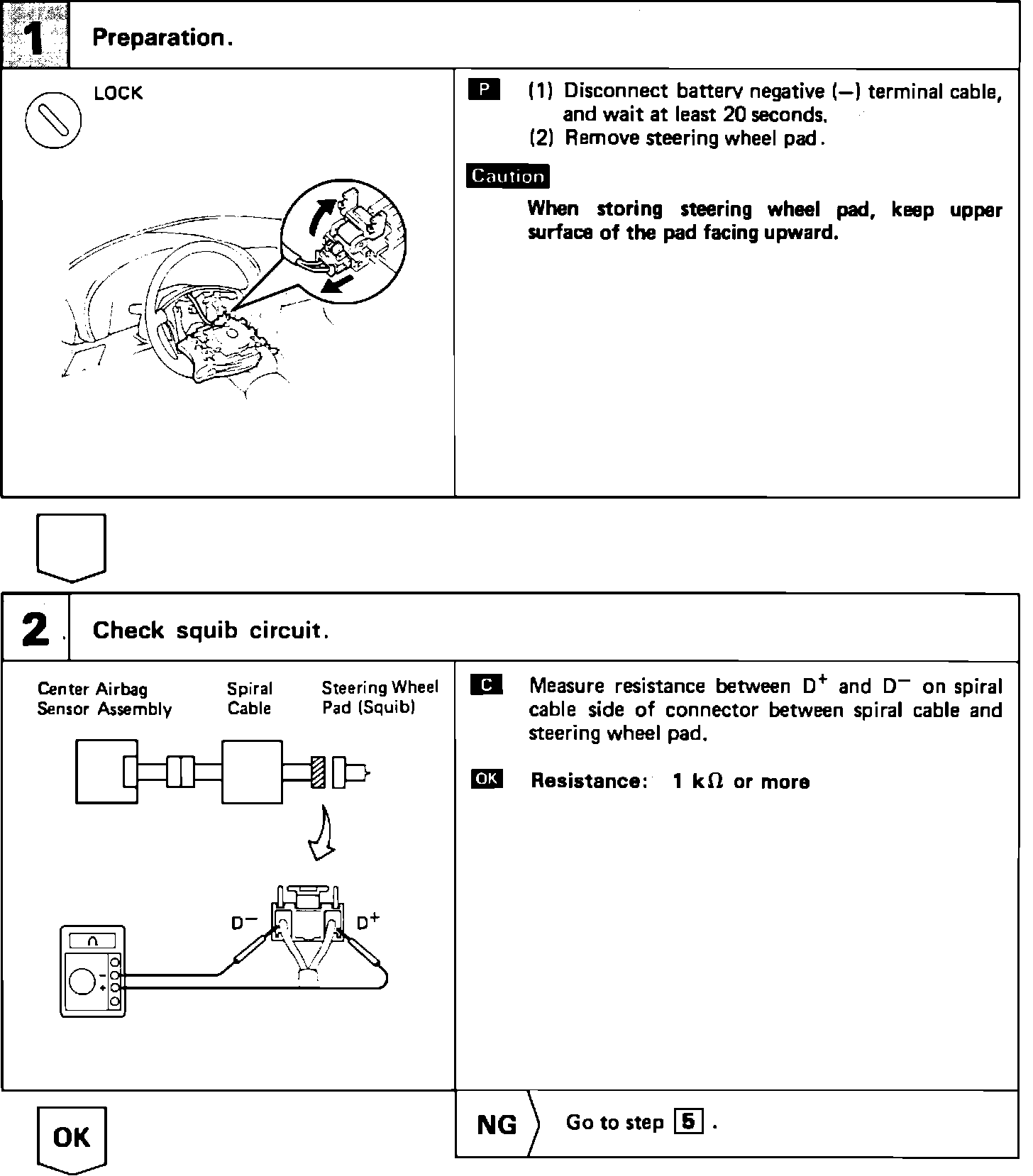

Fig. 29 Diagnostic Code 13 (Short In Squib Circuit Between D+ & D- , Part 5 Of 6). Celica, MR2 & Supra:

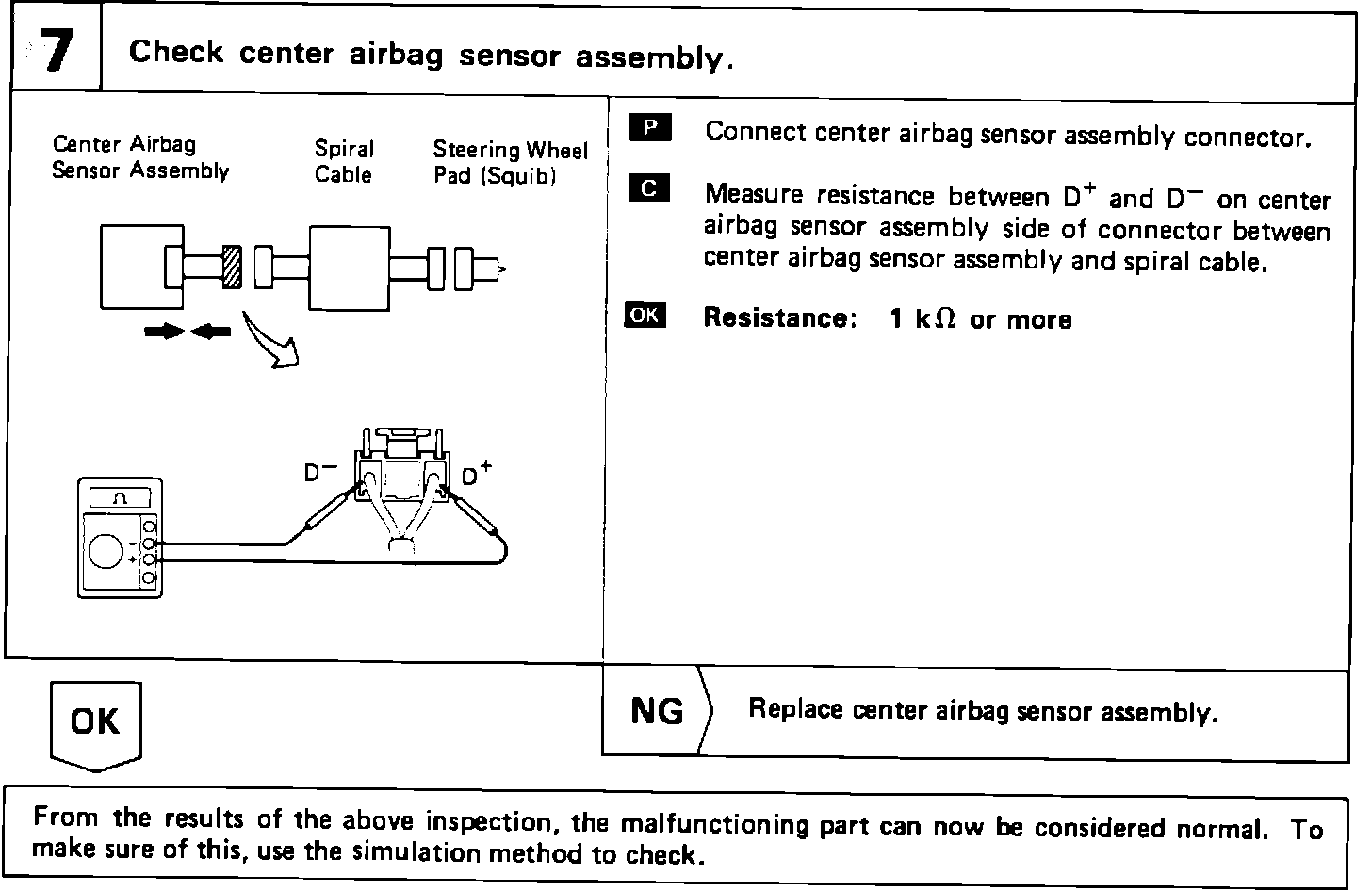

Fig. 29 Diagnostic Code 13 (Short In Squib Circuit Between D+ & D- , Part 6 Of 6). Celica, MR2 & Supra:
