Celica Convertible L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Engine Control System
>>
With Automatic Transmission
With Automatic Transmission

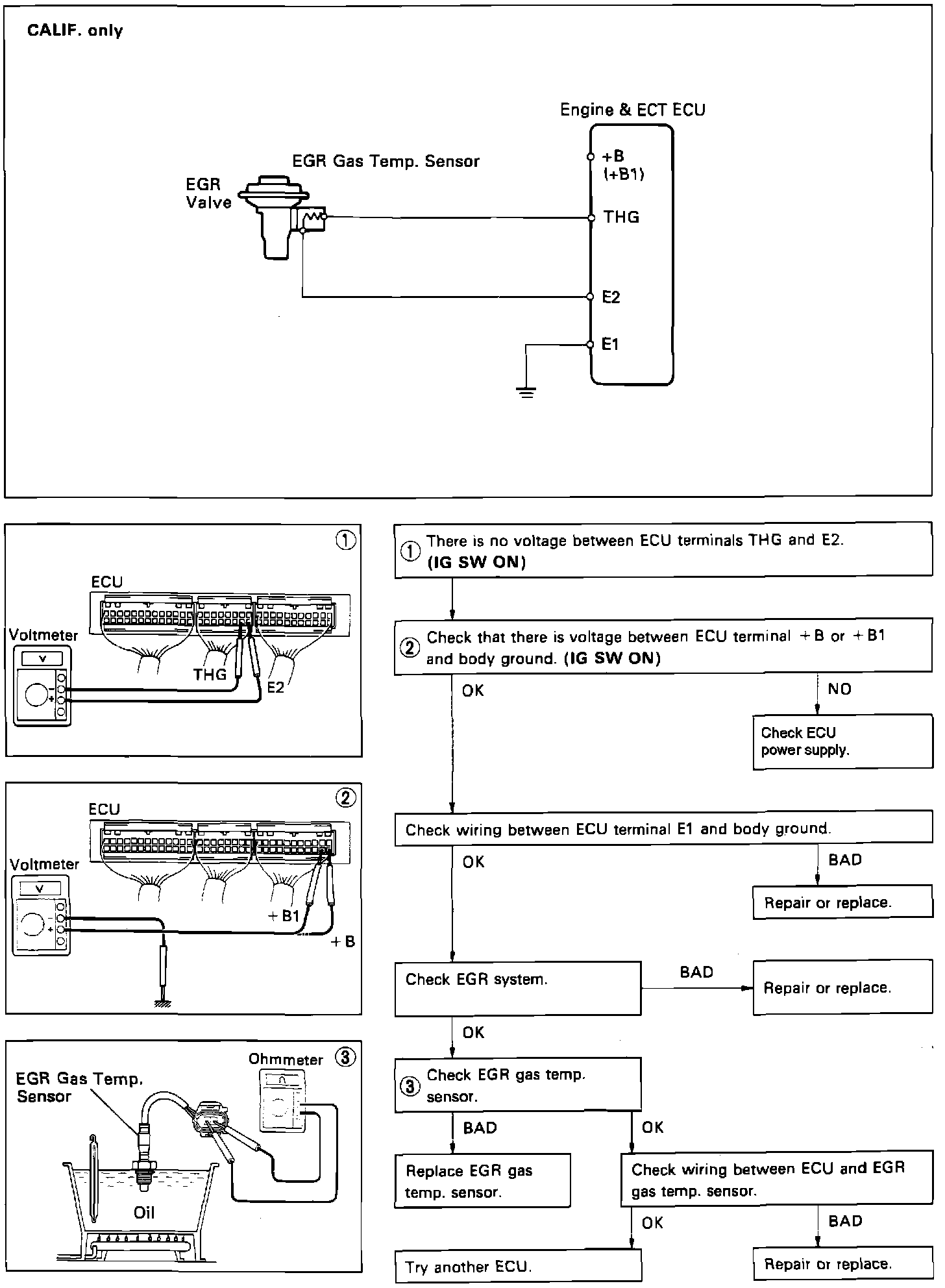

EGR Temperature Sensor Inspection:
Diagnostic Chart

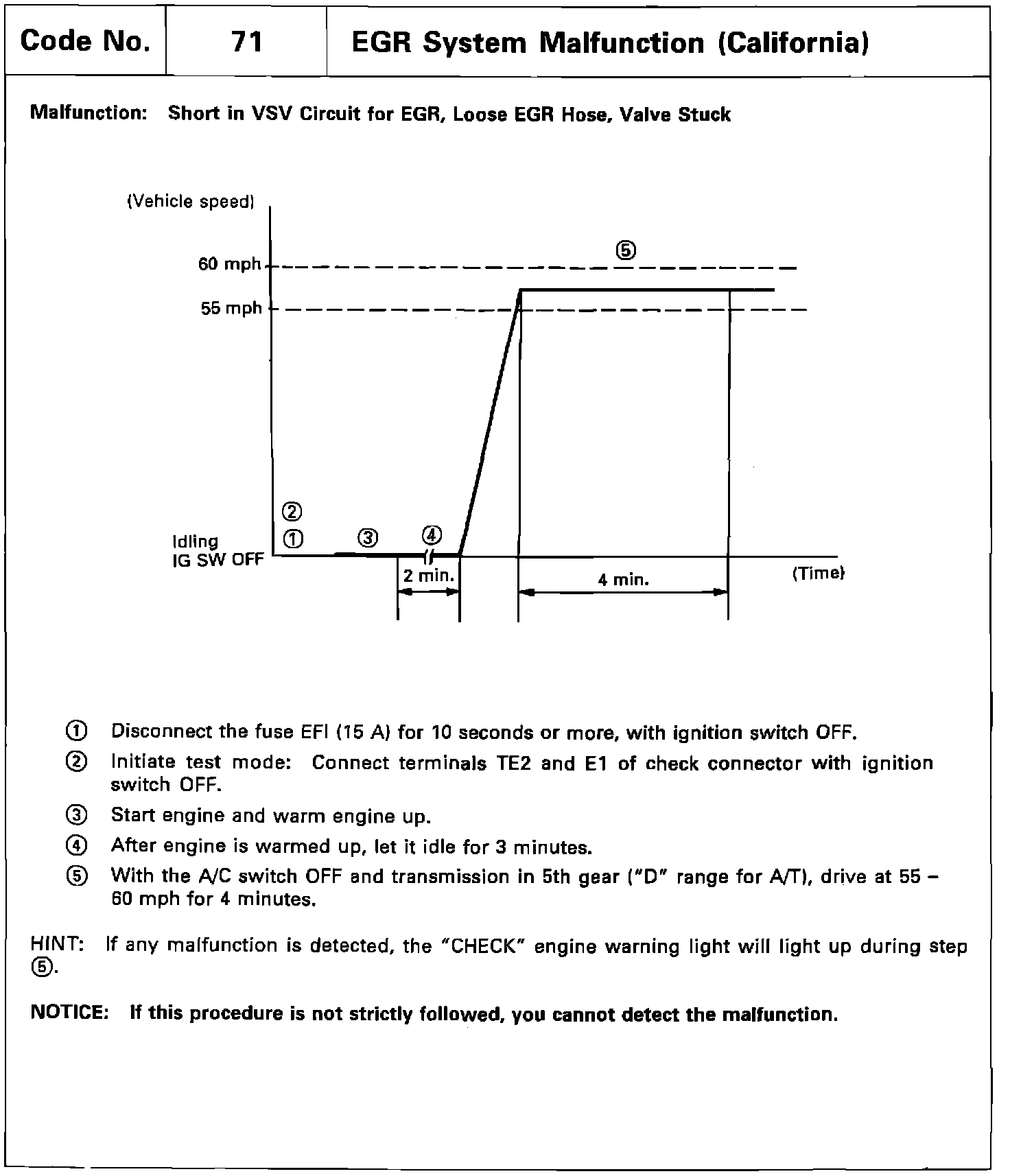

Code 71 - Detection Driving Pattern:
Detection Driving Pattern
