General Notes

1. Troubles occuring with the automatic Transaxle can be caused by either the engine or the transaxle itself. These two areas should be distinctly isolated before proceeding with troubleshooting.

2. Troubleshooting should begin with the simplest operation, working up in order of difficulty, but first determine whether the trouble lies within the engine or transaxle.

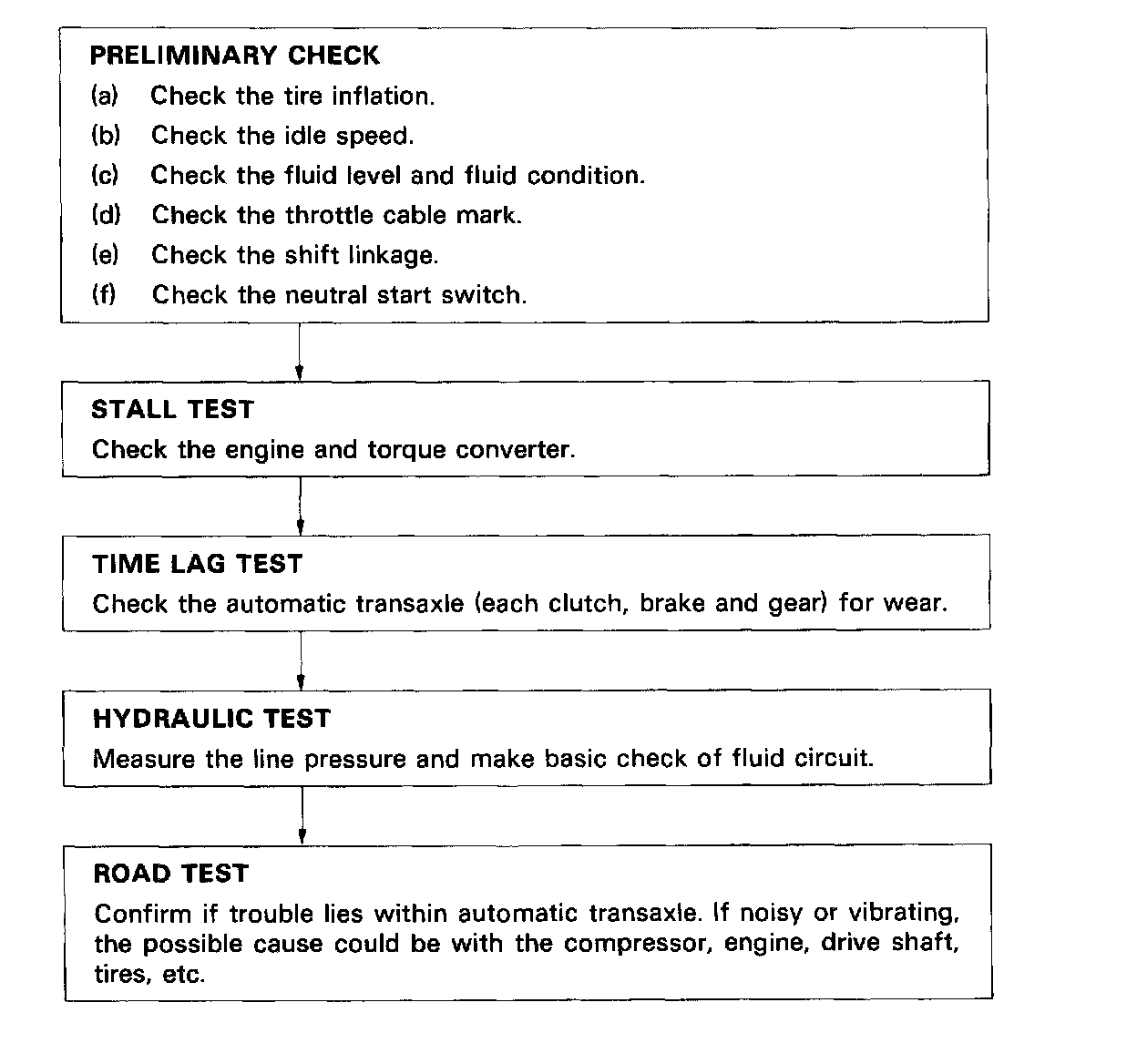

3. Proceed with the inspection as shown.
