Home >> Toyota >> 1989 >> Tercel Hatchback L4-1456cc 1.5L SOHC (3E) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Locations >> Fuse and Fusible Link Locations

Fuse and Fusible Link Locations

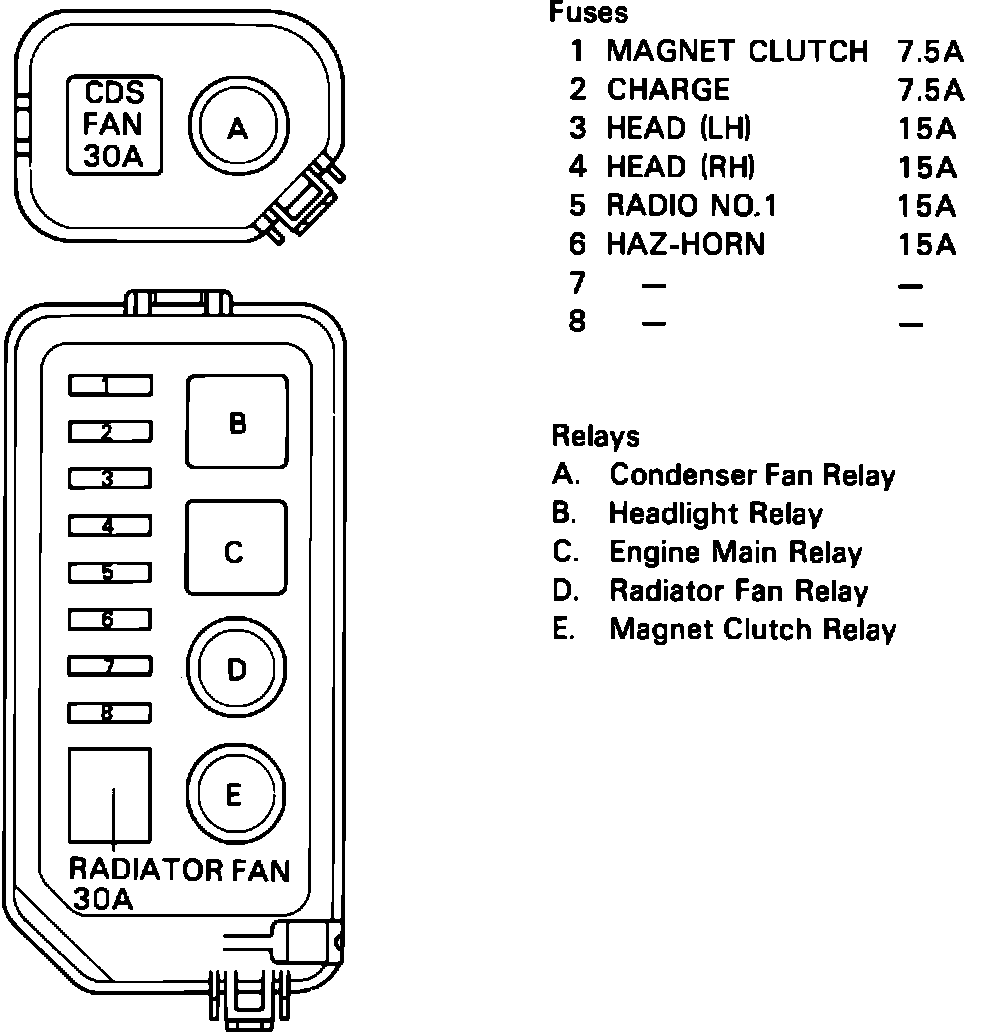

Fuse/Relay Panel #1:



Fuse/Relay Panel #2:
